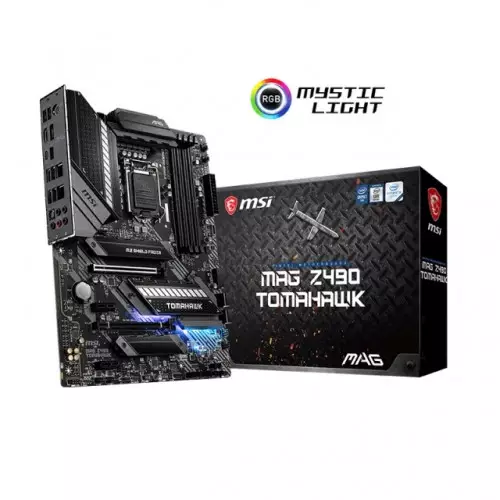

MSI MAG Z490 TOMAHAWK MOTHERBOARD
MSI MAG Z490 TOMAHAWK MOTHERBOARD

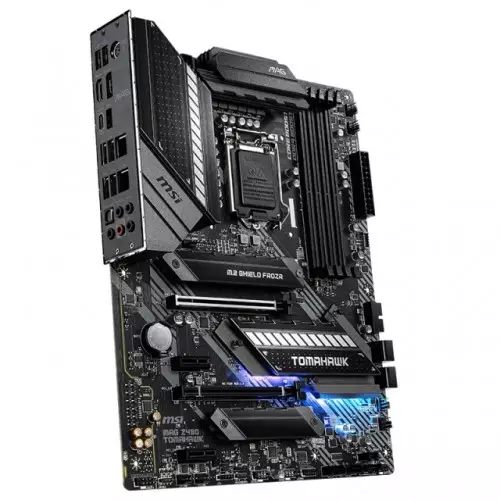

MSI MAG Z490 TOMAHAWK MOTHERBOARD - 1
MSI MAG Z490 TOMAHAWK MOTHERBOARD - 2

MSI MAG Z490 TOMAHAWK MOTHERBOARD

0 Reviews
Stock : Discontinued
PID : P00025061837
Brand : MSI
Model : MAG Z490 TOMAHAWK
Warranty : 3 Years
  • Supports 10th Gen/Pentium/Celeron
  • Intel Z490 Chipset
  • 4 x DDR4 memory slots
  • Supports 2-Way AMD CrossFire

DESCRIPTION

MSI MAG Z490 TOMAHAWK MOTHERBOARD

CPU
  • Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket
CHIPSET
  • Intel® Z490 Chipset
MEMORY
  • 4 x DDR4 memory slots, support up to 128GB 1
  • Supports 1R 2133/2666/2933 MHz 1
  • 1DPC 1R Max speed up to 4800+ MHz
  • 1DPC 2R Max speed up to 4266+ MHz
  • 2DPC 1R Max speed up to 4400+ MHz
  • 2DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
EXPANSION SLOT
  • 1x PCIe 3.0 x16 slot (from CPU)
  • 1x PCIe 3.0 x16 slot (from PCH， supports x4 mode)
  • 2x PCIe x1 slots (from PCH)
Graphics
  • MULTI-GPU
  • Supports 2-Way AMD® CrossFire™ Technology

  • ONBOARD GRAPHICS
  • 1x HDMI port supports a maximum resolution of 4096x2160 @ 30Hz
  • 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz
STORAGE
  • Intel® Z490 Chipset
  • 6x SATA 6Gb/s ports 1
  • 2x M.2 slots (Key M)
  • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices 1
  • M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices 2
  • Intel® Optane™ Memory Ready 3
  • Supports Intel® Smart Response Technology for Intel Core™ processors
  • SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_2 slot.Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
USB
  • Intel® Z490 Chipset
  • 1x USB 3.2 Gen 2 10Gbps Type-A port on the back panel
  • 7x USB 3.2 Gen 1 5Gbps (4 Type-A ports on the back panel, 2 ports through the internal USB connector, 1 Type-C internal connector)
  • 2x USB 2.0 ports on the back panel
  • 4x USB 2.0 ports available through the internal USB connectors, hub-GL850G

  • ASMedia® ASM3241
  • 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
AUDIO
  • Realtek® ALC1200-VD1 Codec
  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
INTERNAL CONNECTORS
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 1x 4-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 1x USB 3.2 Gen 1 5Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connectors (support additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water pump connector
  • 6x 4-pin system fan connectors
  • 1x front panel audio connector
  • 2x system panel connectors
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 2x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 1x serial port connector
  • 1x TPM module connector
  • 1x RTD3 connector
  • 1x TBT connector
BACK PANEL PORTS
  2. PS/2 Combo Port
  3. DisplayPort
  4. USB 3.2 Gen 2 10Gbps (Type-A)
  5. 1G LAN Port
  6. 2.5G LAN
  7. HD Audio Connectors
  8. USB 2.0 Ports
  9. HDMI Port
  10. USB 3.2 Gen 2x2 20Gbps (Type-C)
  11. USB 3.2 Gen 1 5Gbps (Type-A)
  12. USB 3.2 Gen 1 5Gbps (Type-A)
  13. Optical S/PDIF OUT
LAN
  • 1x Realtek® RTL8125B-CG 2.5G LAN Controller + 1x Intel I219V 1G LAN
OTHERS
  • LED FEATURES
  • 1x EZ LED Control switch
  • 4x EZ Debug LED

  • I/O CONTROLLER
  • NUVOTON NCT6687 Controller Chip

  • FORM FACTOR
  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
MSI MAG Z490 TOMAHAWK MOTHERBOARD Comes with 03 years warranty

MSI MAG Z490 TOMAHAWK MOTHERBOARD Overview:


The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.

MSI MAG Z490 TOMAHAWK MOTHERBOARD Features:

  • Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 2933MHz (Max.)
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • Lightning USB 20G: Powered by ASmedia 3241 USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
  • Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN and latest Wi-Fi 6 solution deliver the best online experience without lag
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • Audio Boost: Reward your ears with studio grade sound quality
  • Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire™
