MSI MAG B760M MORTAR WIFI DDR5 12TH/13TH GEN MOTHERBOARD
- Supported CPU: 12th/13th Gen Intel Processors (LGA1700)
- Supported RAM: 4x DDR5, Max 192GB 7000+(OC)
- Graphics Output: 1x HDMI, 1x DisplayPort
- Features: 2x M.2 slot, Intel Wi-Fi 6E
EMI Start From*
MSI MAG B760M MORTAR WIFI DDR5 12TH/13TH GEN MOTHERBOARD
MSI MAG B760M MORTAR WIFI DDR5 12th/13th gen Motherboard. The MSI PRO B760M-A WIFI DDR4 12th/13th Gen Motherboard is an advanced motherboard that supports 12th/13th Gen Intel® Core™ processors, Pentium® Gold, and Celeron® processors. It features an Intel B760 chipset and an LGA1700 CPU socket. The motherboard supports a maximum memory capacity of 192GB through its 4x DDR5 memory slots with a memory support of 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz. The onboard graphics of the MSI PRO B760M-A WIFI DDR4 12th/13th Gen Motherboard includes 1x HDMI™ and 1x DisplayPort that support up to 4K 60Hz resolution. The motherboard also features 2x PCI-E x16 slots, 1x PCI-E x1 slot, 2x M.2 slots, and 4x SATA 6G storage options. In terms of connectivity, the motherboard has 4x USB 2.0 (rear), 4x USB 2.0 (front), 2x USB 3.2 Gen1 Type-A (front), 3x USB 3.2 Gen2 Type-A (rear), 1x USB 3.2 Gen2 Type-C (front), and 1x USB 3.2 Gen2x2 Type-C (rear). It also features Realtek® 2.5Gbps LAN and Intel® Wi-Fi 6E with MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps and Bluetooth® 5.3 support.

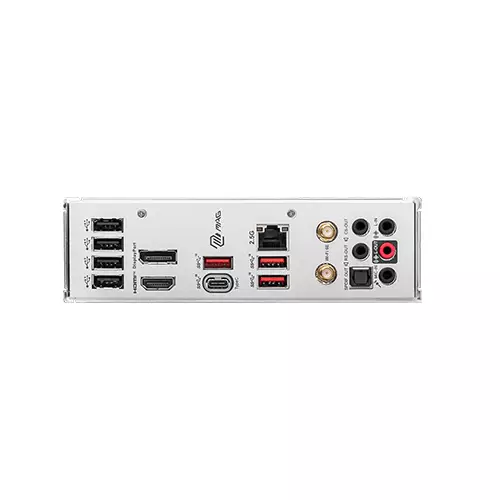

The MSI PRO B760M-A WIFI DDR4 12th/13th Gen Motherboard has Realtek® ALC897 Codec with 7.1-Channel USB High Performance Audio and S/PDIF output. The motherboard also features various internal I/O ports including 1x Power Connector (ATX_PWR), 2x Power Connector (CPU_PWR), 1x CPU Fan, 1x Pump Fan, 4x System Fan, and 1x Front Audio (JAUD), among others. The motherboard measures 243.84mmx243.84mm and supports Windows® 11 64-bit and Windows® 10 64-bit operating systems. It is a micro ATX motherboard with 4x EZ Debug LED and several back panel ports such as USB 2.0, DisplayPort 1.4, USB 3.2 Gen 2 10Gbps Type-A, 2.5G LAN Port, Wi-Fi/Bluetooth Antenna, HD Audio Connectors, HDMI™ 2.1 Port, USB 3.2 Gen 2x2 20Gbps Type-C, and Optical S/PDIF OUT. Bangladesh's top retailer of computer hardware and applications is Techland BD. A hallmark of Techland BD is its top-notch client support. They have a helpful and knowledgeable crew that is always willing to help customers. The large selection of MSI Motherboard available at Techland BD is well recognized. The large selection of MSI Motherboard available at Techland BD is well recognized.
