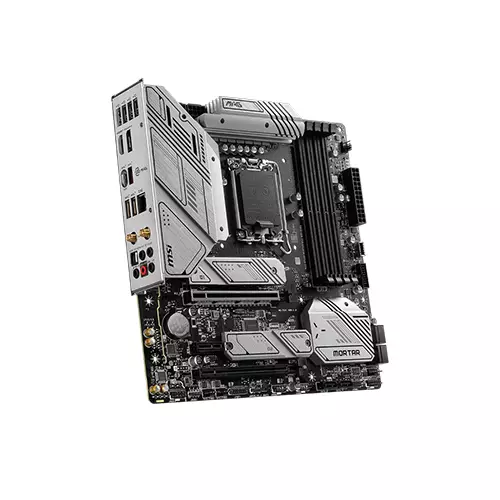

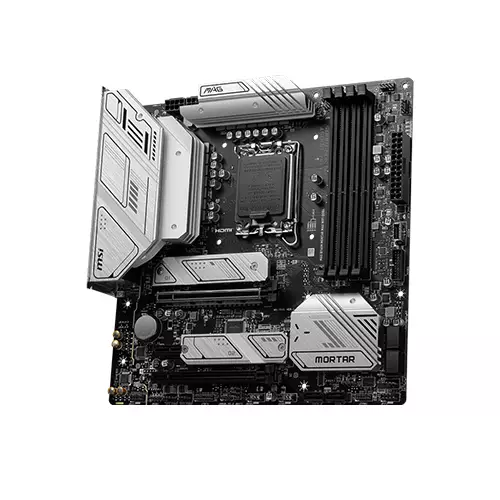

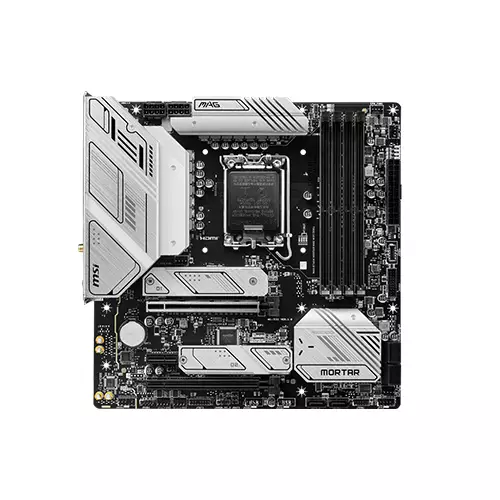

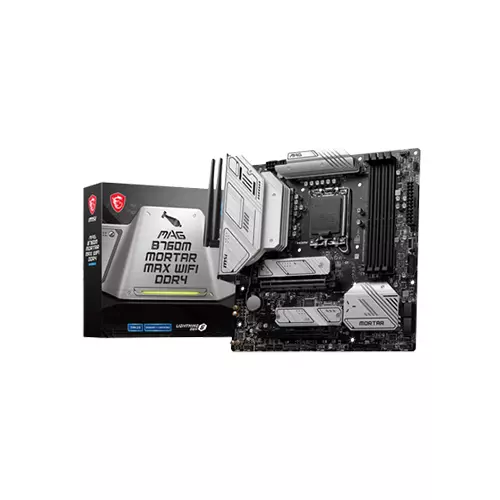

MSI MAG B760M MORTAR MAX WIFI DDR4 12TH/13TH GEN MOTHERBOARD

MSI MAG B760M MORTAR MAX WIFI DDR4 12TH/13TH GEN MOTHERBOARD

MSI MAG B760M MORTAR MAX WIFI DDR4 12th/13th gen Motherboard. The MSI MAG B760M Mortar WiFi DDR5 12th/13th Gen Motherboard is a high-performance motherboard designed to support 12th/13th Gen Intel® Core™ processors, Pentium® Gold and Celeron® processors. The motherboard features the Intel B760 chipset and LGA1700 socket. It supports up to 128GB of DDR4 memory with a maximum overclocking frequency of up to 5333+ MHz. It also supports dual-channel mode, non-ECC, un-buffered memory, and Intel® Extreme Memory Profile. The onboard graphics include 1x HDMI™ and 1x DisplayPort that support HDR and a maximum resolution of 4K 60Hz and 8K 60Hz, respectively, available only on processors featuring integrated graphics. The expansion slots include 2x PCI-E x16 slots that support x16/x4 and 1x PCI-E x1 slot. It also has 2x M.2 slots and 6x SATA 6G for storage, supporting RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices. The motherboard has 4x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 3.2 Gen1 Type A (Front), 3x USB 3.2 Gen2 Type A (Rear), 1x USB 3.2 Gen2 Type C (Front), and 1x USB 3.2 Gen2x2 Type C (Rear).

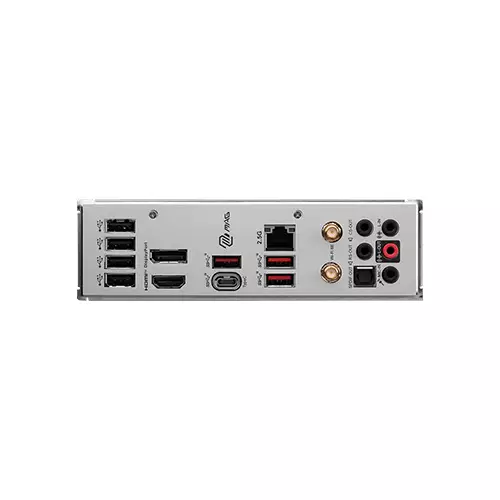

It also features Realtek® 2.5Gbps LAN and Intel® Wi-Fi 6E with MU-MIMO TX/RX, supporting 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps, and Bluetooth® 5.3, FIPS, FISMA. The audio system is equipped with the Realtek® ALC897 Codec and 7.1-Channel USB High-Performance Audio, supporting S/PDIF output. The internal I/O includes several connectors, such as power connectors, fan connectors, front panel connectors, RGB LED connectors, and USB ports. The motherboard also has LED features with 4x EZ Debug LED. The back panel ports include USB 2.0, DisplayPort 1.4, USB 3.2 Gen 2 10Gbps Type-A, 2.5G LAN port, Wi-Fi/Bluetooth antenna, HD audio connectors, HDMI™ 2.1 port, USB 3.2 Gen 2x2 20Gbps Type-C, and Optical S/PDIF OUT. The motherboard supports Windows® 11 64-bit and Windows® 10 64-bit and has an mATX PCB dimension of 243.84mmx243.84mm. Bangladesh's top retailer of computer hardware and applications is Techland BD. A hallmark of Techland BD is its top-notch client support. They have a helpful and knowledgeable crew that is always willing to help customers. The large selection of MSI Motherboard available at Techland BD is well recognized. The large selection of MSI Motherboard available at Techland BD is well recognized.
