MSI MAG B760M MORTAR II LGA1700 14TH GEN INTEL MATX MOTHERBOARDS

MSI MAG B760M MORTAR II MOTHERBOARD IN BANGLADESH

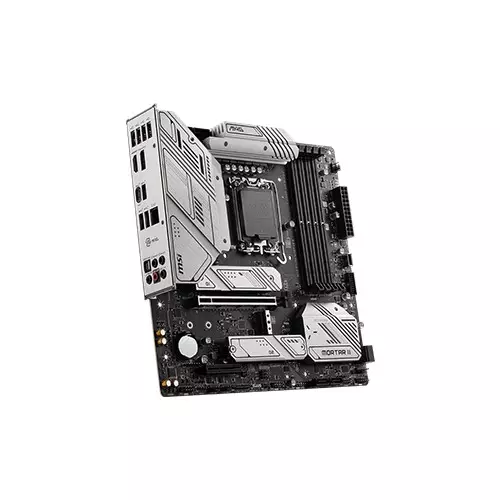

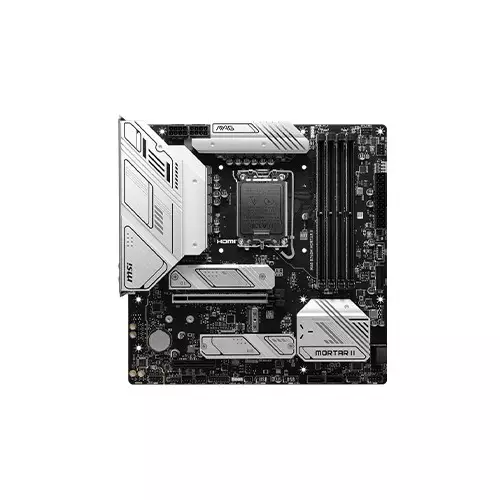

The MSI MAG B760M MORTAR II is a cutting-edge motherboard powered by the Intel B760 chipset, designed to support the latest generation of Intel processors, including the Intel Core 14th, 13th, and 12th Gen processors, as well as Intel Pentium Gold and Celeron processors. With its LGA1700 socket, this motherboard is equipped to handle the demands of modern computing.

Memory and Performance:

The motherboard provides exceptional memory support with 4 DDR5 DIMM slots, allowing for a maximum memory capacity of a whopping 192GB. Memory speeds can be boosted to impressive levels, reaching up to 7800+ MHz with overclocking. The motherboard supports dual-channel memory mode, non-ECC un-buffered memory, and Intel Extreme Memory Profiles for optimized performance.

Onboard Graphics:

The MSI MAG B760M MORTAR II features a comprehensive graphics setup with 1 HDMI™ port supporting HDMI 2.1 with HDR for a maximum resolution of 4K at 60Hz, as well as 1 DisplayPort for resolutions up to 4K at 60Hz. Note that the graphics specifications may vary depending on the CPU installed, and these ports are available only on processors with integrated graphics.

Expansion and Storage:

This motherboard offers expansion options with 1 PCI-E x16 slot supporting x16/x4 and a PCI_E1 Gen PCIe 5.0, which supports up to x16 (from CPU), and a PCI_E2 Gen PCIe 3.0, supporting up to x4 (from Chipset). Storage options are robust, with 3 M.2 slots. M.2_1 (from CPU) supports PCIe 4.0 x4 and 2280/2260/2242 devices, M.2_2 (from Chipset) supports PCIe 4.0 x4 and 2280/2260 devices, and M.2_3 (from Chipset) supports PCIe 4.0 x4/SATA mode and 2280 devices. Additionally, the motherboard offers 4 SATA 6G ports and supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices.

Connectivity and I/O:

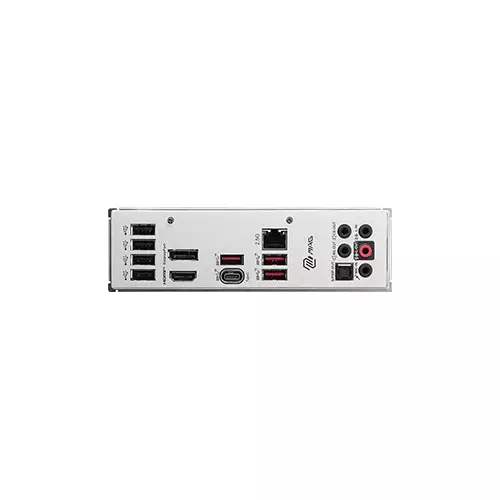

The MSI MAG B760M MORTAR II is well-equipped in terms of connectivity with USB ports. It includes 4 USB 2.0 ports on the rear, 4 USB 2.0 ports on the front, 2 USB 3.2 Gen1 Type A ports on the front, 3 USB 3.2 Gen2 Type A ports on the rear, 1 USB 3.2 Gen2 Type C port on the front, and 1 USB 3.2 Gen2x2 Type C port on the rear. The motherboard also features Realtek 2.5Gbps LAN for fast and reliable network connectivity, and audio is powered by the Realtek ALC897 Codec, delivering 7.1-Channel High Definition Audio with S/PDIF output.

Internal I/O and LED Features:

The motherboard offers extensive internal I/O options, including power connectors, fan headers, front panel connectors, audio connectors, addressable RGB LED connectors, USB ports, and a TPM pin header. Additionally, it features 4 EZ Debug LED indicators for easy troubleshooting.The MSI MAG B760M MORTAR II is a feature-packed motherboard that offers exceptional performance, expandability, and connectivity, making it an excellent choice for those looking to build a high-performance system with Intel's latest processors. Whether for gaming or content creation, this motherboard has the features and specifications to meet the demands of modern computing.
