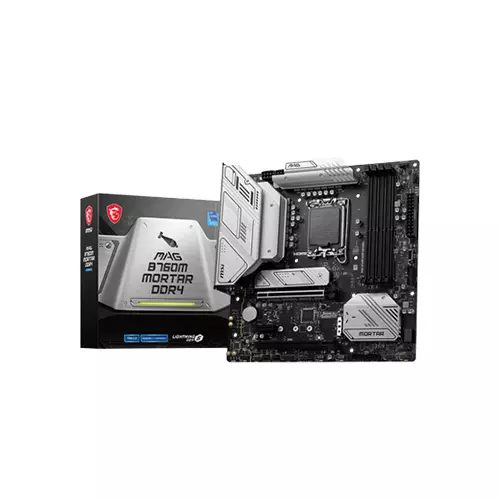

MSI MAG B760M MORTAR DDR4 12TH/13TH GEN MOTHERBOARD

MSI MAG B760M MORTAR DDR4 12TH/13TH GEN MOTHERBOARD

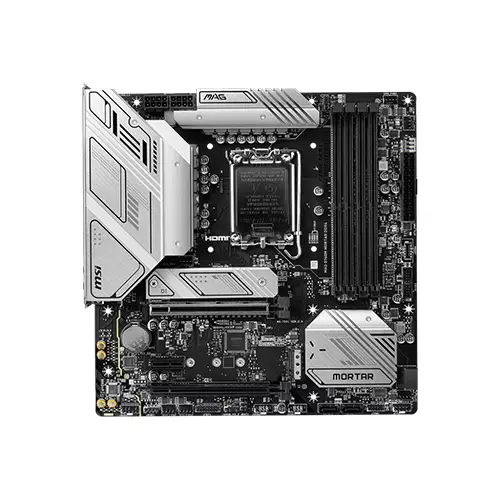

MSI MAG B760M MORTAR DDR4 12th/13th Gen Motherboard. The 12th and 13th generation Intel Core processors, Pentium Gold, and Celeron processors with an LGA1700 socket are all supported by the Intel B760 system chipset. It has 4x DDR4 memory slots, each of which can hold up to 128GB of memory, and it enables dual-channel operation at memory speeds of up to 5333MHz (OC). One HDMITM port and one DisplayPort are available on the onboard graphics, both of which enable up to 4K 60Hz resolution. In terms of expansion slots, the Intel B760 chipset has 2x PCI-E x16 slots, 1x PCI-E x1 slot, and 3x M.2 slots. The M.2_1 slot supports up to PCIe 4.0 x4 with a maximum length of 2280/2260/2242 devices, while the M.2_2 slot supports up to PCIe 4.0 x4/SATA mode with a maximum length of 2280/2260/2242 devices. The chipset also has 4x SATA 6G ports that support RAID 0, 1, 5, and 10 for storage devices. The Intel B760 chipset has a variety of USB ports, including 4x USB 2.0 (rear), 4x USB 2.0 (front), 2x USB 3.2 Gen1 Type A (front), 3x USB 3.2 Gen2 Type A (rear), 1x USB 3.2 Gen2 Type C (front), and 1x USB 3.2 Gen2x2 Type C (rear).

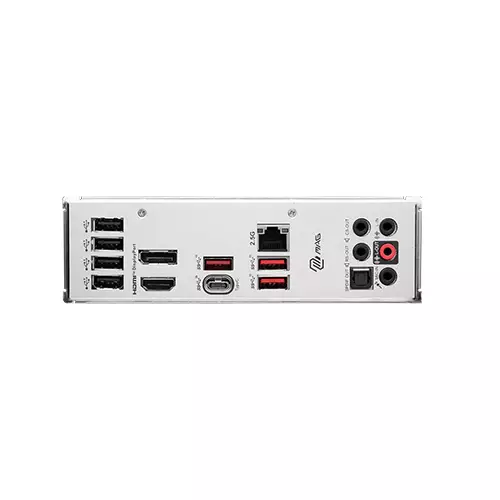

It also has a Realtek® 2.5Gbps LAN port and a Realtek® ALC897 audio codec that supports 7.1-channel USB high-performance audio and S/PDIF output. A power connection, CPU fan, pump fan, system fan, front panel, chassis intrusion, front audio, TBT connector, tuning controller connector, addressable V2 RGB LED connector, RGB LED connector, and TPM pin header are just a few of the internal I/O connectors found on the Intel B760 chipset. Various rear panel connections, including USB 2.0, DisplayPort 1.4, USB 3.2 Gen 2 10Gbps Type-A, 2.5G LAN, HD audio connectors, HDMITM 2.1 port, USB 3.2 Gen 2x2 20Gbps Type-C, and optical S/PDIF out are also included. It also has 4x EZ Debug LEDs. The Intel B760 chipset has a mATX PCB dimension of 243.84mm x 243.84mm and supports Windows® 11 64-bit and Windows® 10 64-bit OS systems. Bangladesh's top retailer of computer hardware and applications is Techland BD. A hallmark of Techland BD is its top-notch client support. They have a helpful and knowledgeable crew that is always willing to help customers. The large selection of MSI Motherboard available at Techland BD is well recognized. The large selection of MSI Motherboard available at Techland BD is well recognized.
