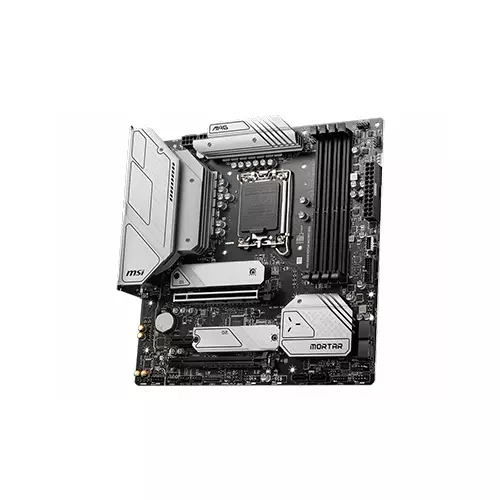

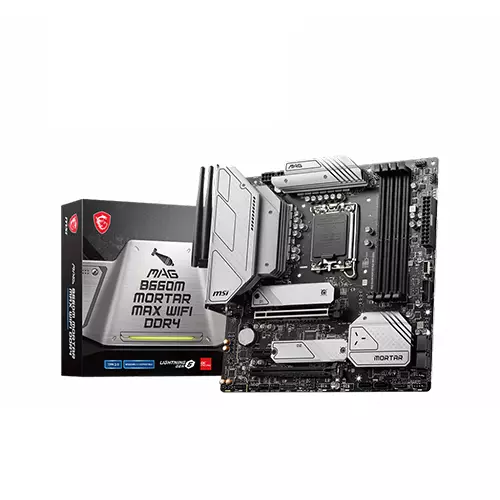

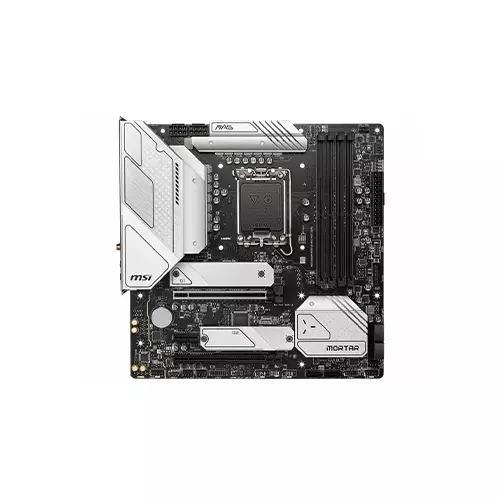

MSI MAG B660M MORTAR MAX WIFI DDR4 MOTHERBOARD
MSI MAG B660M MORTAR MAX WIFI DDR4 MOTHERBOARD
MSI MAG B660M MORTAR MAX WIFI DDR4 MOTHERBOARD - 1
MSI MAG B660M MORTAR MAX WIFI DDR4 MOTHERBOARD - 2
MSI MAG B660M MORTAR MAX WIFI DDR4 MOTHERBOARD - 3

MSI MAG B660M MORTAR MAX WIFI DDR4 MOTHERBOARD

0 Reviews
Stock : Out of Stock
PID : P0402506153
Brand : MSI
Model : Mag B660M Mortar Max
Warranty : 3 years
  • Supported CPU: Supports 12th Gen Intel® Core, Pentium Gold and Celeron® processors Processor socket LGA17...
  • Memory: 4x DDR4 memory slots, support up to 128GB Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR...
  • Supported Storage: 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset) 2x SATA 6Gb/s ports (SATA_A & SATA_B, fro...
  • LAN: 1x Realtek® 8125BG 2.5Gbps LAN controller

Product Pricing

Discount Price

৳23,800 ৳24,500
+ Available Payment Method

EMI Start From*

৳838

SPECIFICATIONS

Processor

Supported CPU Supports 12th Gen Intel® Core, Pentium Gold and Celeron® processors

Processor socket LGA1700

Mainboard

Chipset Intel B660 Chipset

Memory

Memory 4x DDR4 memory slots, support up to 128GB

Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)

Max overclocking frequency:
1DPC 1R Max speed up to 5333+ MHz

1DPC 2R Max speed up to 4000+ MHz

2DPC 1R Max speed up to 4000+ MHz

2DPC 2R Max speed up to 3600+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel® Extreme Memory Profile (XMP)

Storage

Supported Storage 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset)

2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061)

2x M.2 slots (Key M)

M2_1 slot (From CPU)

Supports PCIe 4.0 x4

Supports 2242/ 2260/ 2280 storage devices

M2_2 slot (From B660 Chipset)

Supports PCIe 4.0 x4

Supports SATA 6Gb/s

Supports 2242/ 2260/ 2280 storage devices

Supports Intel® Optane Memory

Graphics

Multi-GPU Supports AMD CrossFire Technology
Graphics 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz

1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz

Networking & Connectivity

LAN 1x Realtek® 8125BG 2.5Gbps LAN controller
WiFi The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz1 (160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax
Bluetooth Bluetooth 5.2

Audio & Microphone

Audio Realtek® ALC897 Codec

7.1-Channel High Definition Audio

Supports S/PDIF output

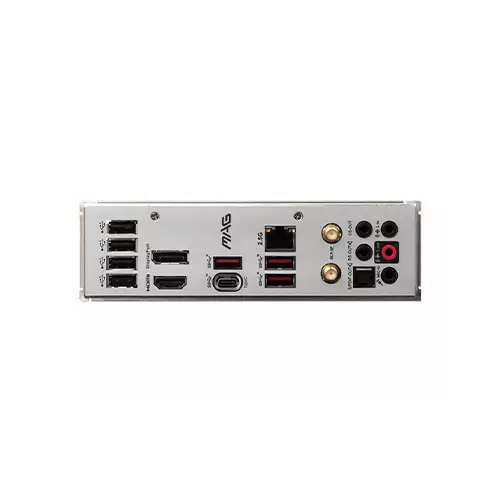

Ports

Slots 2x PCIe x16 slots

PCI_E1 slot (From CPU)

Supports PCIe 5.0 x16

PCI_E3 slot (From B660 Chipset)

Supports PCIe 3.0 x4

1x PCIe 3.0 x1 slot
Internal I/O Ports USB 2.0 Port

DisplayPort 1.4

USB 3.2 Gen 2 10Gbps Type-A

2.5G LAN Port

Wi-Fi / Bluetooth Antenna

HD Audio Connectors

HDMI 2.1 Port

USB 3.2 Gen 2x2 20Gbps Type-C

Optical S/PDIF OUT
External I/O Ports 1x 24-pin ATX main power connector

2x 8-pin ATX 12V power connectors

6x SATA 6Gb/s connectors

2x M.2 slots (M-Key)

1x USB 3.2 Gen 2 10Gbps Type-C connector

1x USB 3.2 Gen 1 5Gbps
connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin water-pump fan connector

2x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1x Clear CMOS jumper

1x TPM module connector

1x TBT connector (supports RTD3)

1x Tuning Controller connector
USB 1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel

1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector

2x USB 3.2 Gen 1 5Gbps ports available through the internal connector

4x USB 2.0 ports on the back panel

USB Hub-GL3590

3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel

USB Hub-GL850G

4x USB 2.0 ports available through internal connectors
HDMI HDMI 2.1 Port

Physical Specification

Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Dimension 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

Warranty Information

Warranty 3 years

DESCRIPTION

MSI Mag B660M Mortar Max Motherboard in Bangladesh

Take a step into the future. MSI have returned with the MAG B660M series motherboards here to support the very latest 12th Generation Intel processors; boasting the brand new Intel 1700 LGA. The MAG B660M MORTAR MAX WIFI DDR4 is a gaming oriented micro-ATX motherboard constructed around the latest Intel B660 chipset that balances value with cutting-edge hardware. The B660M Mortar MAX Wi-Fi DDR4 features PCIe 5.0 technology, Dual Gen4 M.2 support, lightning 20G USB connectivity, Core & DDR4 Memory boosts, a thorough cooling solution with extended heatsinks with thermal pads, onboard M.2 Shield Frozr, Wi-Fi 6E support delivering speeds of up to 2400 Mbps and a fully comprehensive rear I/O. The B660M Mortar Max DDR4 Wi-Fi combines all of these features with incredible durability and stunning aesthetics to squeeze every ounce of performance from your new CPU. Heed the call of the next-generation with MSI.

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the MSI MAG B660M MORTAR MAX WIFI DDR4 MOTHERBOARD Price in Bangladesh 2026 ?

The MSI Mag B660M Mortar Max Price in BD is 23,800৳ . This MSI MAG B660M MORTAR MAX WIFI DDR4 MOTHERBOARD Manufacturing by MSI Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you MSI Mag B660M Mortar Max by 23,800৳ and its regular price is 24,500৳ Which is also Out of Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
