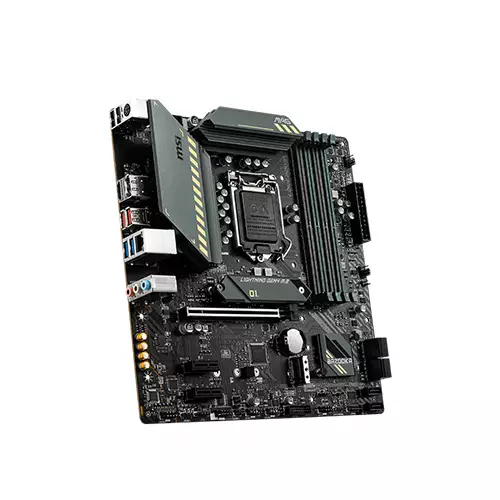

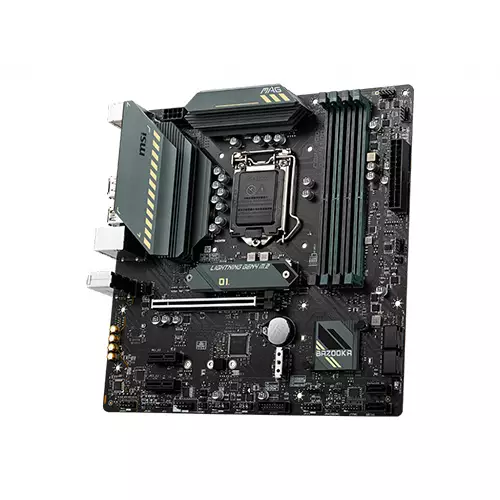

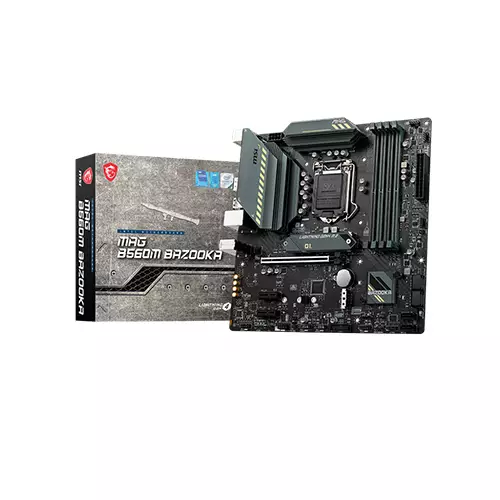

MSI MAG B560M BAZOOKA 10th and 11th Gen Micro ATX Motherboard
- Micro-ATX Form Factor
- Intel B560 Chipset
- Realtek RTL8125B 2.5Gbps LAN controller
- LGA 1200 Socket
Product Pricing
EMI Start From*
SPECIFICATIONS
Processor
Mainboard
Memory
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)1
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)1
Max overclocking frequency:
1DPC 1R Max speed up to 5066 MHz
1DPC 2R Max speed up to 4600+ MHz
2DPC 1R Max speed up to 4266+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Storage
2x M.2 slots (Key M)
M2_1 slot
Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU(From CPU)
Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU (From B560 chipset)1
Supports 2242/ 2260/ 2280 storage devices
M2_2 slot2(from B560 chipset)
Supports up to PCIe 3.0 x4
Supports SATA up to 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Intel Optane Memory Ready
Supports Intel Smart Response Technology for Intel Core processors
Networking & Connectivity
Audio & Microphone
7.1-Channel High Definition Audi
Ports
PCI_E1 (from CPU)
Support up to PCIe 4.0 for 11th Gen Intel CPU
Support up to PCIe 3.0 for 10th Gen Intel CPU
2x PCIe 3.0 x1 slots
PCI_E2 & PCI_E3 (From B560 chipset)
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
2x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
1x Serial port connector
1x Tuning Controller connector

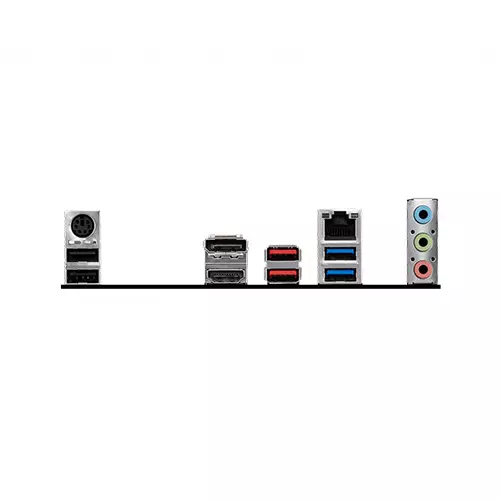

DisplayPort
2.5G LAN Port
Audio Connectors
HD Audio Connectors
HDMI
USB 3.2 Gen 2 10Gbps Type-A
USB 3.2 Gen 1 5Gbps Type-A
2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
2x USB 2.0 Type-A ports on the back panel
USB Hubs GL850G
4x USB 2.0 ports are available through the internal USB 2.0 connectors
Physical Specification
Warranty Information
DESCRIPTION
MSI MAG B560M BAZOOKA Motherboard in Bangladesh
The MSI MAG B560M BAZOOKA MATX motherboard is here to support the very latest 10th and 11th Generation Intel processor support. Bursting with exclusive features and high-speed connectivity the newest 4th Gen PCI-e and M.2, plus Audio/Core & DDR4 Memory boosts. MSI motherboards feature plenty of convenient and smart designs for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the foremost demanding tweaker. With years of experience, MSI is not any stranger to putting together a high-performance MSI MAG B560M BAZOOKA Motherboard. MSI, R&D, and engineering teams have reviewed countless designs, evaluated a good selection of top-quality components, and developed products for reliability even under extreme conditions.MSI MAG B460M bazooka price in bd
OPTIMIZED COOLING
Part of the motherboards heatsink design, M.2 SHIELD FROZR is that the next generation M.2 thermal solution to avoid this by offering the simplest thermal protection to form sure that SSD maintains maximum performance. Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a correct value by adopting MSI AI ENGINE. MSI MAG B560M BAZOOKA Motherboard Total Fan Control allows you to check your primary system characteristics during a simplified graphical interface. Designed to support the foremost popular All-In-One & customized water cooling solutions on the market. a fanatical pump PIN header supports up to three amp, supplying you with full control of the pump speed.MSI MAG B460M bazooka specs
ADVANCED PERFORMANCE
MSI MAG B560M BAZOOKA Motherboard conducts thorough memory testing with the foremost popular memory brands under extreme conditions to make sure your system runs stable regardless of what. MSI OC LAB doesn't merely exert extreme overclocking. Compare to the B460 motherboard memory XMP profile, MSI MAG B560M BAZOOKA Motherboard does have great improvement in performance and efficiency for B560. Easy to enable XMP profile with auto power settings to urge the simplest memory speed and stability.MAG B460M BAZOOKA review
LIGHTNING ARMOR DESIGN
MSI MAG SERIES motherboards support all the newest storage standards, which allows users to attach any ultra-fast memory device. Higher efficiency makes your work easier. MSI lightning Gen 4 PCI-E is that the latest and therefore the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. MSI MAG B560M BAZOOKA Motherboard PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. MAG B460M BAZOOKA review Optimized by steel armor design and server-grade PCB, you'll enjoy next-gen devices with no compromise.
USB 3.2 GEN 1
MSI MAG B560M BAZOOKA Motherboard Featuring 2.5Gbps LAN which provides incredible data transfer speed faster than general Gigabit LAN. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, supplying you with the simplest online experience with low latency. MSI MAG B560M BAZOOKA Motherboard Transfer any data, music, and films over USB easier. USB 3.2 Gen 1 ports are ready in both front and rear IO provides a big variety of options to attach your USB 3.2 Gen 1 devices.
