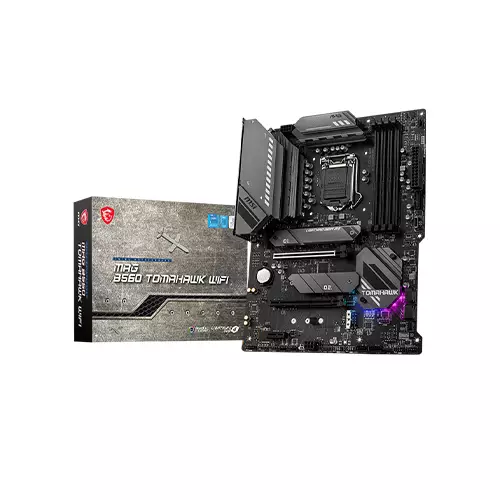

MSI MAG B560 TOMAHAWK WIFI 10th and 11th Gen ATX Motherboard
MSI MAG B560 TOMAHAWK WIFI 10th and 11th Gen ATX Motherboard

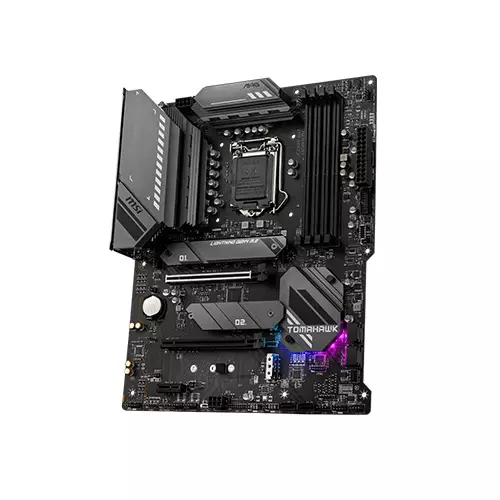

MSI MAG B560 TOMAHAWK WIFI 10th and 11th Gen ATX Motherboard - 1

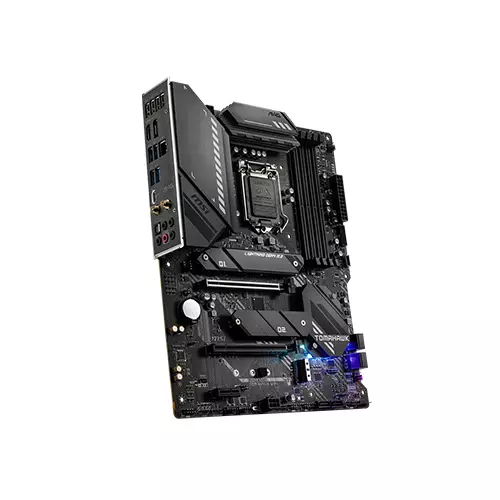

MSI MAG B560 TOMAHAWK WIFI 10th and 11th Gen ATX Motherboard - 2
MSI MAG B560 TOMAHAWK WIFI 10th and 11th Gen ATX Motherboard - 3

MSI MAG B560 TOMAHAWK WIFI 10th and 11th Gen ATX Motherboard

0 Reviews
Stock : Out of Stock
PID : P0402506056
Brand : MSI
Model : MAG B560 TOMAHAWK WIFI
Warranty : 3 years
  • Supports 10th & 11th Gen Intel processors
  • DDR4 Memory, up to 5066(OC) MHz
  • Extended Heatsink Design & M.2 Shield Frozr
  • 2.5G LAN and Intel Wi-Fi 6E Solution

Product Pricing

Discount Price

৳15,800 ৳16,200
+ Available Payment Method

EMI Start From*

৳556

SPECIFICATIONS

Processor

Supported CPU Supports 10th, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors for LGA1200 socket

Mainboard

Chipset Intel B560 Chipset

Memory

Memory 4 x DDR4 memory slots, support up to 128GB 1
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5066 MHz
1DPC 2R Max speed up to 4600+ MHz
2DPC 1R Max speed up to 4266+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

Storage

Supported Storage 6x SATA 6Gb/s ports (from B560 chipset)
3x M.2 slots (Key M)
M2_1 slot (from CPU)
Available only on 11th Gen Intel CPU
Supports up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_21 slot (from B560 chipset)
Supports up to PCIe 3.0 x4
Supports SATA up to 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_3 slot (from B560 chipset)
Supports up to PCIe 3.0 x4
Supports 2242/ 2260/ 2280 storage devices
Intel Optane Memory Ready
Supports Intel Smart Response Technology for Intel Core processors

Networking & Connectivity

LAN 1x Realtek RTL8125B 2.5Gbps LAN controller
WiFi Intel Wi-Fi 6E AX210
The Wireless module is pre-installed in the M.2 [Key-E] slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1(160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.22, FIPS, FISMA

Audio & Microphone

Audio 7.1-Channel Realtek ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output definition Audio

Ports

Slots 2x PCIe x16 slots
PCI_E1 (from CPU)
Support up to PCIe 4.0 for 11th Gen Intel® CPU
Support up to PCIe 3.0 for 10th Gen Intel ® CPU
PCI_E2 (from B560 chipset)
Support up to PCIe 3.0 x4
1x PCIe 3.0 x1 slot (from B560 chipset)
Internal I/O Ports 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
1x 6-pin PCIE power connector
6x SATA 6Gb/s connectors
3x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
5x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
1x TBT connector (supports RTD3)
1x Tuning Controller connector

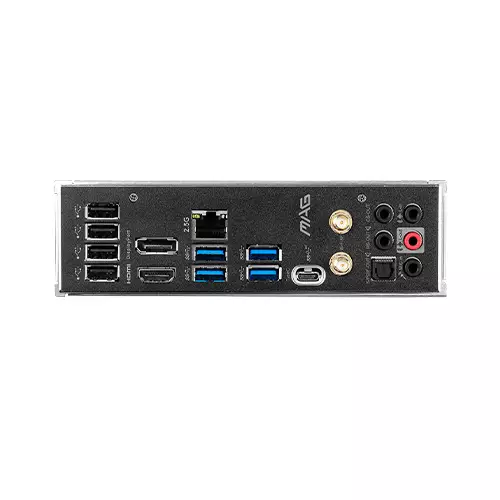

External I/O Ports USB 2.0
DisplayPort
2.5G LAN Port
Wi-Fi / Bluetooth Antenna
HD Audio Connectors
HDMI
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 2x2 20Gbps Type-C
Optical S/PDIF OUT
USB Intel B560 Chipset
1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel)
1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector)
6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 Type-A ports available through the internal connector)
4x USB 2.0 ports on the back panel
Hub-GL850G
4x USB 2.0 ports available through the internal connectors
HDMI 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz

Physical Specification

Form Factor ATX

Warranty Information

Warranty 03 Years Warranty

DESCRIPTION

MSI MAG B560 Tomahawk WIFI Motherboard in Bangladesh

MSI MAG B560 Tomahawk Wi-Fi hopes to further support Intel's low-priced LGA1200 B560 series. Contains a black printed circuit board with a metallic gray heat sink, which includes the military letters we hope to get from the "Tomahawk". Its name is a popular missile in the US military's arsenal. Considering the range of functions of the B560 Tomahawk Wi-Fi, which includes two full-height PCIe slots, of which PCIe 4.0 x16 runs in the upper slot, while the second slot is blocked. 3.0 x4.MSI also includes a PCIe 3.0 x1 slot. MSI MAG B560 Tomahawk WIFI Motherboardare three M.2 slots for storage, one for PCIe 4.0 x4 drives and the other two for PCIe 3 drives.0x4 and SATA. There are six SATA ports, two with rectangular connectors and four with rectangular connectors, all of these ports support RAID 0, 1, 5, and 10. There are four memory slots in the upper right corner, including the maximum support for DDR4-5000 storage space and the maximum total capacity of 128 GB. MSI MAG B560 Tomahawk WIFI Motherboard is a USB 3.2 G2x2 Type C port on the back, four USB 3.2 G1 Type-A ports, and four USB 2.0 ports. An unspecified Realtek HD audio codec that can power five 3.5mm optical and S/PDIF outputs. The network function is provided by Intel AX210 Wi-Fi 6E CNVi and 2.5 GbE Realtek RTL8125B controller. The back is rounded by two video outputs, including HDMI 2.0 and DisplayPort 1.4. MSI MAG B560 Tomahawk WIFI Motherboard has a 3 years warranty.
