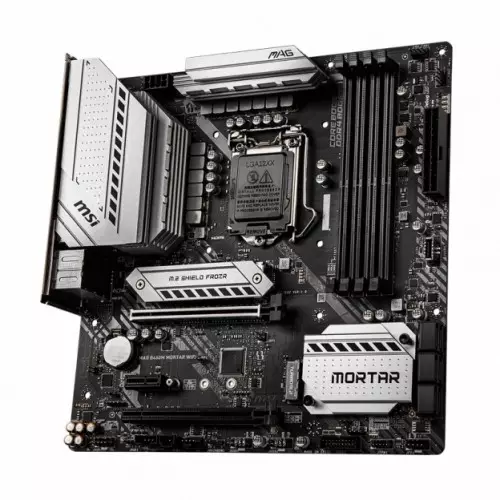

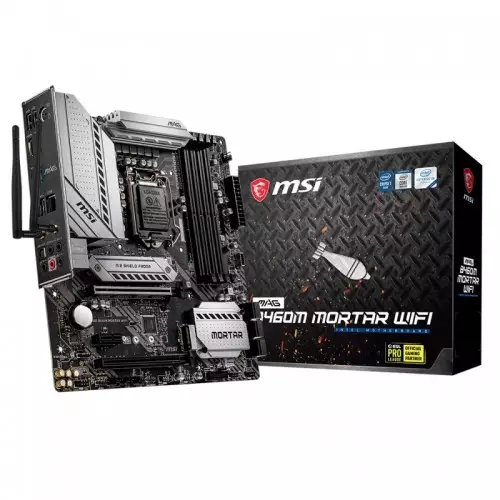

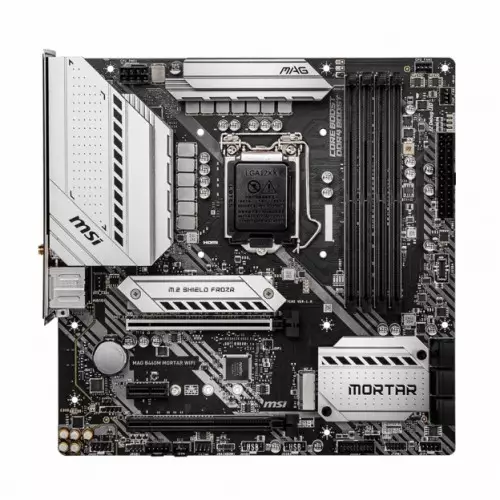

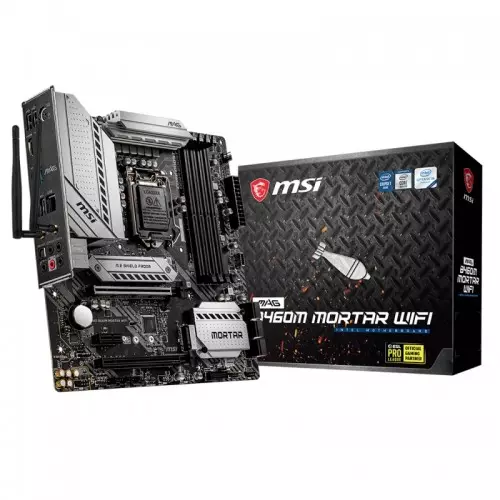

MSI MAG B460M Mortar Wi-Fi Intel 10th Gen Micro-ATX Motherboard
MSI MAG B460M Mortar Wi-Fi Intel 10th Gen Micro-ATX Motherboard
MSI MAG B460M Mortar Wi-Fi Intel 10th Gen Micro-ATX Motherboard - 1
MSI MAG B460M Mortar Wi-Fi Intel 10th Gen Micro-ATX Motherboard - 2
MSI MAG B460M Mortar Wi-Fi Intel 10th Gen Micro-ATX Motherboard - 3

MSI MAG B460M Mortar Wi-Fi Intel 10th Gen Micro-ATX Motherboard

0 Reviews
Stock : Discontinued
PID : P00025062095
Brand : MSI
Model : MAG B460M Mortar Wi-Fi
Warranty : 3 Years
  • Supports 10th Gen/Pentium/Celeron
  • Intel B460 Chipset
  • Dual Channel Memory
  • 1x Realtek RTL8125B

DESCRIPTION

MSI MAG B460M Mortar Wi-Fi Motherboard Specification
Basic

Supported CPU:
Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket

Chipset:
Intel B460 Chipset

BIOS:
1x 128 Mb flash
UEFI AMI BIOS
ACPI 6.2, SM BIOS 3.2 ∙Multi-language

Form Factor:
mATX Form Factor
9.6 in. x 9.6 in. (24.3 cm x 24.3 cm)

Expansion Slots

PCI:
1x PCIe 3.0 x16 slot (from CPU)
1x PCIe 3.0 x16 slot (from PCH, supports x4 mode)
1x PCIe 3.0 x1 slot (from PCH)

M.2 Socket:
2x M.2 slots (Key M)
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices

Memory

Type:
Dual Channel Memory Architecture

Slots:
4x DDR4 memory slots

Supported Memory:
Intel Core i7/ i9
Support DDR4-2933 Memory (Max.)
Intel Core i5
Supports DDR4-2666 Memory (Max.)
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)

Maximum Memory:
128GB

Graphics

1x HDMI port supports a maximum resolution of 4096x2160 @ 30Hz

1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz

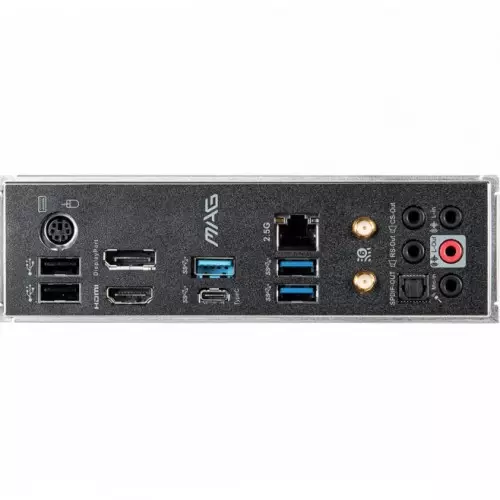

Connector & Ports

HDMI:
1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz

Display Port (s):
1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz

USB (s):
Intel B460 Chipset
2x USB 3.2 Gen 1 5Gbps Type-C ports (1 port on the back panel, 1 port through the internal USB connector)
5x USB 3.2 Gen 1 5Gbps Type-A ports (3 ports on the back panel, 2 ports through the internal USB connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

LAN Port (s):
1x Realtek RTL8125B 2.5G LAN Controller

WIFI & BLUETOOTH:
Intel AX200
Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
WiFi 6 Pre-Certified
Supports Bluetooth 5.1 , FIPS, FISMA
The Wireless module is pre-install in the M2 (Key-E) slot

Supported Storage:
Intel B460 Chipset

6x SATA 6Gb/s ports:
2x M.2 slots (Key M)
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
Intel Optane Memory Ready for the M2_2 slot only
Supports Intel Smart Response Technology for Intel Core™ processors

Audio:
Realtek ALC1200 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output

Internal I/O Ports:
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports)
1x USB 3.2 Gen 1 5Gbps Type-C connector
2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water pump connector
2x 4-pin system fan connectors
1x front panel audio connector
2x system panel connectors
1x TPM module connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x 4-pin RGB LED connector
1x 3-pin RAINBOW LED connector
1x TBT connector1x RTD3 connector

MSI MAG B460M Mortar Wi-Fi Motherboard in Bangladesh


The MSI MAG B460M Mortar Wi-Fi Motherboard was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG B460M Mortar Wi-Fi has a simple installation process coupled with a friendly user interface making it the best choice for entry-level gamers. This Gaming Motherboard Powered by Intel 10th Gen Core processors, the MSI MAG B460 motherboard is hardened with performance essential specifications to outlast enemies. Equipped with Extended Heatsink Design, Core Boost, M.2 Shield Frozr, and 2.5G LAN for sustained performance.

Features:

  • Supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 2933 MHz(Max)
  • Enhanced Power Design: 12+1+1 Duet Rail Power System, Core Boost, DDR4 Boost
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high-performance system and non-stop gaming experience
  • 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable, and fast network connection
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
  • Intel Turbo USB 3.2 Gen 1: Powered by Intel USB 3.2 Gen 1 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
  • Audio Boost: Reward your ears with studio grade sound quality



[product_table id="34" limit="10" type="filter" filter_category="6136"]

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the MSI MAG B460M Mortar Wi-Fi Intel 10th Gen Micro-ATX Motherboard Price in Bangladesh 2026 ?

The MSI MAG B460M Mortar Wi-Fi Price in BD is 27,200৳ . This MSI MAG B460M Mortar Wi-Fi Intel 10th Gen Micro-ATX Motherboard Manufacturing by MSI Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you MSI MAG B460M Mortar Wi-Fi by 27,200৳ and its regular price is 27,500৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
