  • MSI MAG B460M BAZOOKA intel 10th Gen Gaming Motherboard

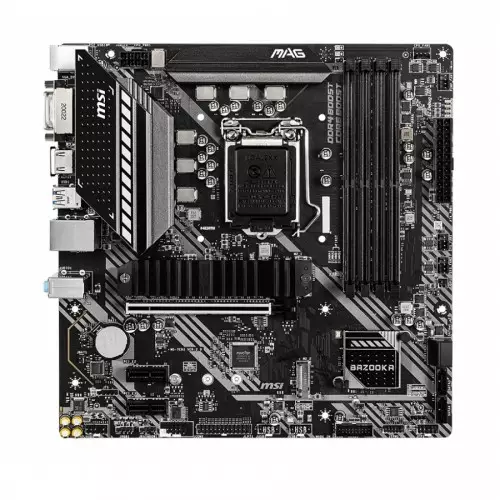

MSI MAG B460M BAZOOKA intel 10th Gen Gaming Motherboard
MSI MAG B460M BAZOOKA intel 10th Gen Gaming Motherboard-cover-thumbnail MSI MAG B460M BAZOOKA intel 10th Gen Gaming Motherboard-1

MSI MAG B460M BAZOOKA intel 10th Gen Gaming Motherboard

Stock : Discontinued
PID : P00025061841
Brand : OTHERS
Model : MAG B460M BAZOOKA
Warranty : 3 years
0 Reviews
  • Memory type: DDR4
  • Supports 10th/Pentium/Celeron
  • Chipset: Intel B460
  • LAN:1x Realtek RTL8111H
  • MSI MAG B460M BAZOOKA Motherboard Specification

    Performance

    Supported CPU:
    Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA1200 socket

    Chipset:
    Intel B460

    BIOS:

    1x 128 Mb flash

    UEFI AMI BIOS

    ACPI 6.2, SM BIOS 3.2

    Multi-language

    Form Factor:
    mATX Form Factor

    Dimention:
    9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

    Audio:
    Realtek ALC892 Codec
    7.1-Channel High Definition Audio

    Memory

    Type: DDR4

    Slots: 4x DDR4 memory slots

    Supported Memory: Intel Core i7/i9

    Support DDR4-2933 Memory (Max.)

    Intel Core i5 (Below)

    Supports DDR4-2666 Memory (Max.)

    Supports Dual-Channel mode

    Supports non-ECC, un-buffered memory

    Supports Intel Extreme Memory Profile (XMP)

    Maximum Mamory: 128GB

    Graphics

    1x HDMI port, supporting a maximum resolution of 4096x2160 @ 30Hz, 2560x1600 @ 60Hz

    1x DVI-D port, supports a maximum resolution of 1920x1200 @ 60Hz

    Connector & Ports

    Expansion Slots:
    PCI 1x PCIe 3.0 x16 slot (from CPU)
    2x PCIe x1 slots (from PCH)

    USB:
    6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal USB connector)
    6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

    DVI-D: 1 x DVI-D Port
    HDMI: 1 x HDMI

    LAN:
    1x Realtek RTL8111H Gigabit LAN Controller

    Supported Storage:
    4x SATA 6Gb/s ports 1
    2x M.2 slots (Key M)

    M.2:
    M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices 1
    M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices

    Intel Optane Memory Ready 2
    Supports Intel Smart Response Technology for Intel Core processors

    Internal I/O Ports:

    1x 24-pin ATX main power connector

    1x 8-pin ATX 12V power connector

    4x SATA 6Gb/s connectors

    1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports)

    2x USB 2.0 connectors (support additional 4 USB 2.0 ports)

    1x 4-pin CPU fan connector

    1x 4-pin water pump connector

    2x 4-pin system fan connectors

    1x front panel audio connector

    2x system panel connectors

    1x parallel port connector

    1x serial port connector

    1x Chassis Intrusion connector

    1x Clear CMOS jumper

    1x 4-pin RGB LED connector

    1x 3-pin RAINBOW LED connector

    1x TPM module connector

    Special Features:
    Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    4x EZ Debug LED

    MSI MAG B460M BAZOOKA Motherboard Comes With 03 Years Warranty

    MSI MAG B460M BAZOOKA Motherboard in Bangladesh

    The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.

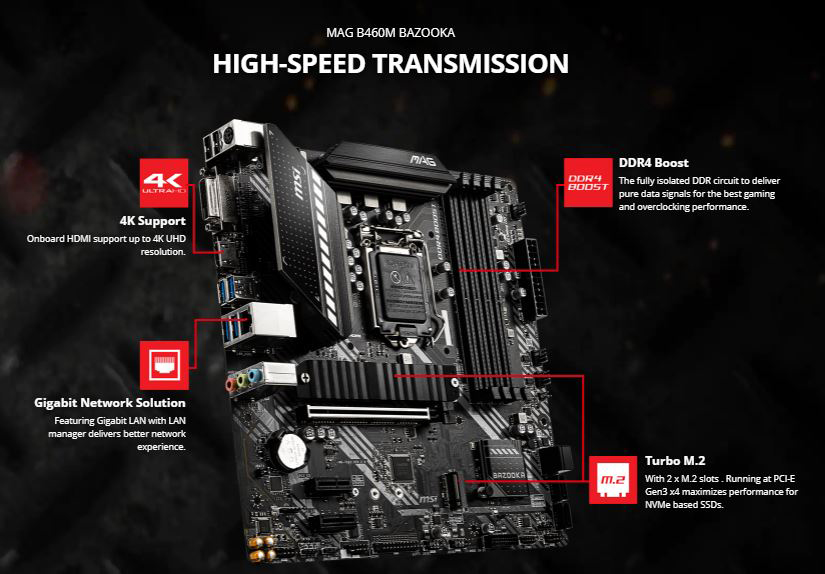

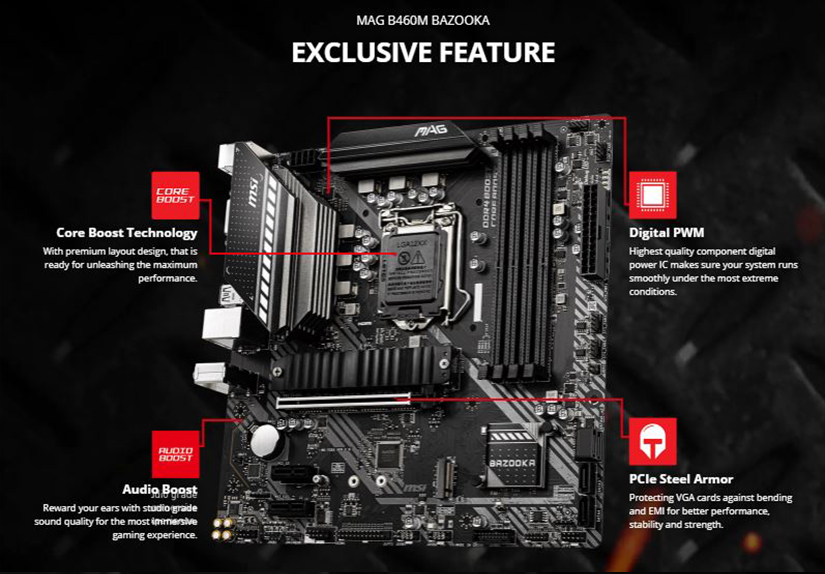

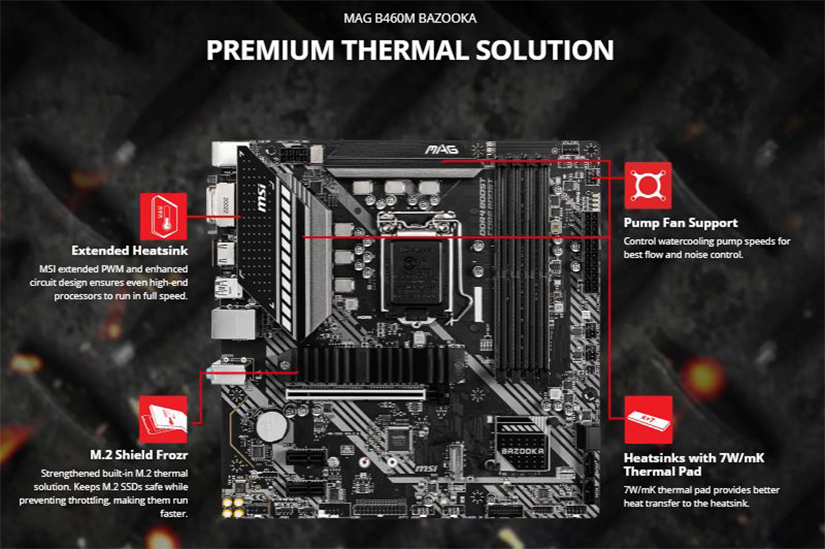

    MSI MAG B460M BAZOOKA owns extended PWM heatsink and enhanced circuit design assures even high-end Intel CPU to run in full speed with MSI motherboards. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by Delivering the best thermal protection to make sure that SSD maintains maximum performance. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. Set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. Supports the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 2 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to assure user system runs stable no matter what. MSI MAG helps all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier. MSI brand new Dragon Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving user the best online gaming experience with low latency. Transfer lots of data, music and movies over USB easier. USB 3.2 ports are ready in both front and rear IO, provides wide variety of options to connect your USB 3.2 devices. The Mystic Light Extension allows user to have more attractive way to decorate the gaming rig by the LED Strips and still under controlled by the Mystic Light application. Besides, JRGB pin header provides the max 3A(12V) power supply for the up to 3 meters 5050 RGB LED strips showing single color.
