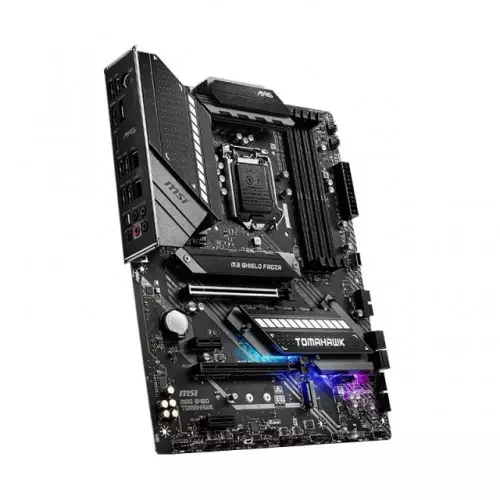

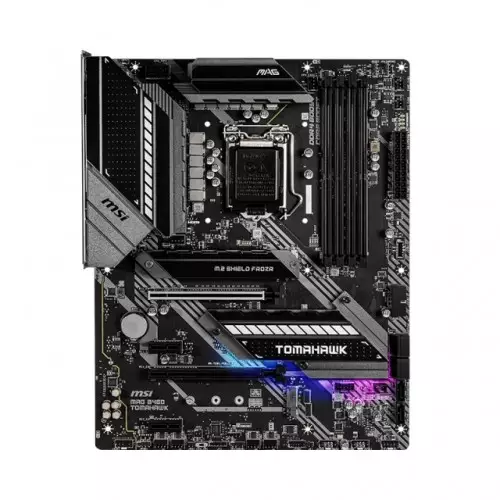

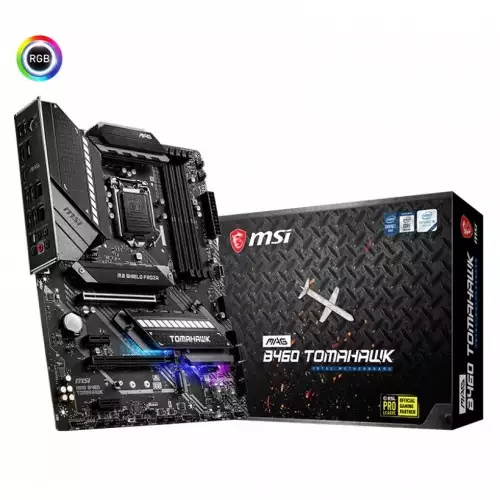

MSI MAG B460 TOMAHAWK MOTHERBOARD
MSI MAG B460 TOMAHAWK MOTHERBOARD
MSI MAG B460 TOMAHAWK MOTHERBOARD - 1
MSI MAG B460 TOMAHAWK MOTHERBOARD - 2
MSI MAG B460 TOMAHAWK MOTHERBOARD - 4

MSI MAG B460 TOMAHAWK MOTHERBOARD

0 Reviews
Stock : Discontinued
PID : P00025061834
Brand : MSI
Model : MAG B460 TOMAHAWK
Warranty : 3 Years
  • Supports 10th/Pentium/Celeron
  • Intel B460 Chipset
  • 4x DDR4 memory slots
  • 7.1-Channel High Definition Audio

DESCRIPTION

MSI MAG B460 TOMAHAWK MOTHERBOARD

CPU
  • Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket
CHIPSET
  • Intel® B460 Chipset
MEMORY
  • 4x DDR4 memory slots, support up to 128GB 1
  • Intel® Core™ i7/i9
  • Supports up to DDR4 2933 MHz
  • Intel® Core™ i5 (Below)
  • Supports up to DDR4 2666 MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
  • Please refer www.msi.com for more information on compatible memory
EXPANSION SLOT
  • 1x PCIe 3.0 x16 slot (From CPU, PCI_E1), supports x16 mode
  • 1x PCIe 3.0 x16 slot (From PCH, PCI_E3), supports x4 mode 1
  • 2x PCIe 3.0 x1 slots (From PCH)
ONBOARD GRAPHICS
  • 1x HDMI port supports a maximum resolution of 4096x2160 @30Hz
  • 1x DisplayPort supports a maximum resolution of 4096x2304 @60Hz
STORAGE
  • Intel® B460 Chipset
  • 6x SATA 6Gb/s ports 1
  • 2x M.2 slots (Key M)
  • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices 1
  • M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices 2
  • Intel® Optane™ Memory Ready 3
  • Supports Intel® Smart Response Technology for Intel Core™ processors
  • SATA1 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.PCI_E3 will be unavailable when installing M.2 SSD in the M2_2 slot.Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
USB
  • ntel® B460 Chipset
  • 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal USB 3.2 Gen 1 connector)
  • 1x USB 3.2 Gen 1 5Gbps port (1 Type-C internal connector)
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
  • ASMedia® ASM3241 Chipset
  • 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
AUDIO and LAN
  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
  • 1x Realtek® RTL8125B 2.5Gbps LAN controller
  • 1x Intel® I219V 1Gbps LAN controller
    • INTERNAL CONNECTORS
    • 1x 24-pin ATX main power connector
    • 1x 8-pin ATX 12V power connector
    • 6x SATA 6Gb/s connectors
    • 2x M.2 slots (M-Key)
    • 1x USB 3.2 Gen 1 5Gbps Type-C port
    • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
    • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    • 1x 4-pin CPU fan connector
    • 1x 4-pin water-pump fan connector
    • 6x 4-pin system fan connectors
    • 1x Front panel audio connector
    • 2x System panel connectors
    • 1x Chassis Intrusion connector
    • 2x 4-pin RGB LED connector
    • 2x 3-pin RAINBOW LED connectors
    • 1x TPM module connector
    • 1x Clear CMOS jumper
    • 1x TBT connector

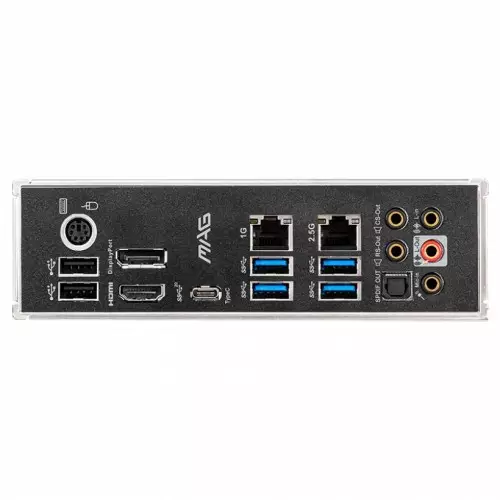

    BACK PANEL PORTS
    1. DisplayPort
    2. PS/2 Combo Port
    3. 2.5G LAN Port
    4. USB 3.2 Gen 2 10Gbps (Type-A)
    5. HD Audio Connectors
    6. HDMI Port
    7. Flash BIOS Button
    8. USB 2.0 port
    9. USB 3.2 Gen 1 5Gbps (Type-A)
    10. USB 3.2 Gen 2 10Gbps (Type-C)
    11. Optical S/PDIF OUT
    BIOS FEATURES
    • 1x 128 Mb flash
    • UEFI AMI BIOS
    • ACPI 6.2, SM BIOS 3.2 ∙Multi-language
    HARDWARE MONITOR
    • CPU/System temperature detection
    • CPU/System fan speed detection
    • CPU/System fan speed control
    OTHERS
    • LED FEATURES
    • 1x EZ LED Control switch
    • 4x EZ Debug LED

    • I/O CONTROLLER
    • NUVOTON NCT6687 Controller Chip

    • FORM FACTOR
    • ATX Form Factor
    • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
    MSI MAG B460 TOMAHAWK MOTHERBOARD Comes with 03 years warranty

    MSI MAG B460 TOMAHAWK MOTHERBOARD Overview:


    The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry-level gamers.

    MSI MAG B460 TOMAHAWK MOTHERBOARD Features:

    • Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
    • Supports DDR4 Memory, up to 2933MHz (Max.)
    • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
    • Lightning USB 20G: Powered by ASmedia 3241 USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
    • Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN and latest Wi-Fi 6 solution deliver the best online experience without lag
    • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
    • Audio Boost: Reward your ears with studio grade sound quality
    • Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire™

    [product_table id="34" limit="10" type="filter" filter_category="7270"]



    REVIEWS

    Login to write a review.

    No reviews yet

    Be the first to share your thoughts about this product.

    What is the MSI MAG B460 TOMAHAWK MOTHERBOARD Price in Bangladesh 2026 ?

    The MSI MAG B460 TOMAHAWK Price in BD is 43,000৳ . This MSI MAG B460 TOMAHAWK MOTHERBOARD Manufacturing by MSI Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you MSI MAG B460 TOMAHAWK by 43,000৳ and its regular price is 44,500৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
