MSI MAG B365M MORTAR Military style MOTHERBOARD
MSI MAG B365M MORTAR Military style MOTHERBOARD
MSI MAG B365M MORTAR Military style MOTHERBOARD - 1
MSI MAG B365M MORTAR Military style MOTHERBOARD - 2
MSI MAG B365M MORTAR Military style MOTHERBOARD - 3
MSI MAG B365M MORTAR Military style MOTHERBOARD - 4

MSI MAG B365M MORTAR Military style MOTHERBOARD

0 Reviews
Stock : Discontinued
PID : P00025061506
SKU : MAG-B365M-MORTAR
Brand : MSI
Model : MAG B365M MORTAR
Warranty : 3 Years
  • Supports 9th/8th/Pentium/Celeron
  • Chipset Intel B365 Chipset
  • Dual Channel DDR4 2666MHz
  • LAN Intel I219-V Gigabit

SPECIFICATIONS

Processor

Supported CPU Supports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors;
Socket: LGA 1151;

Mainboard

Chipset Intel B365 Chipset

Memory

Memory 4 DIMMs, Dual Channel DDR4 2666MHz

Storage

Supported Storage 1 x Turbo M.2 slot (Intel Optane Memory Ready)
6 x SATA 6Gb/s

Graphics

Graphics 1 x PCI-E 3.0 x16 slot

Networking & Connectivity

LAN Intel I219-V Gigabit LAN

Audio & Microphone

Audio 8-Channel(7.1) HD Audio with Audio Boost

Ports

Slots 2 x PCI-E 3.0 x1 slots
Internal I/O Ports 1 x 24-pin ATX main power connector;
1 x 8-pin ATX 12V power connector;
6 x SATA 6Gb/s connectors;
1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports);
2 x USB 2.0 connectors (support additional 4 USB 2.0 ports);
1 x 4-pin CPU fan connector;
2 x 4-pin system fan connectors;
1 x Front panel audio connector;
2 x Front panel connectors;
1 x Serial port connector;
1 x Parallel port connector;
1 x 3-pin RAINBOW LED connector;
1 x 4-pin RGB LED connector;
1 x TPM module connector;
1 x Chassis Intrusion connector;
1 x Clear CMOS jumper;
External I/O Ports Mouse Port;
Intel GAMING LAN;
HD Audio Connectors;
Keyboard Port;
USB 2.0 ports;
HDMI Port;
USB 3.1 Gen1 Type-A ports;
USB 3.1 Gen1 Type-A+C ports;
USB 6 x USB 3.1 (Gen1, A+C) + 6 x USB 2.0
HDMI HDMI – Requires Processor Graphics

Physical Specification

Form Factor Micro ATX
Dimension 9.6 in. x 9.6 in. (24.3 cm x 24.3 cm)

Warranty Information

Warranty 03 Years

DESCRIPTION

MSI MAG B365M MORTAR MOTHERBOARD Overview:

MSI MAG B365M MORTAR TechLand BD Price:
9,500৳
MSI MAG B365M MORTAR MRP Price:
10,200৳
Offer or Special Price of MSI MAG B365M MORTAR :
(Please Visited The Shop)
Present Status of MSI MAG B365M MORTAR :
Available at TechLand BD
Warranty of MSI MAG B365M MORTAR :
03 years warranty

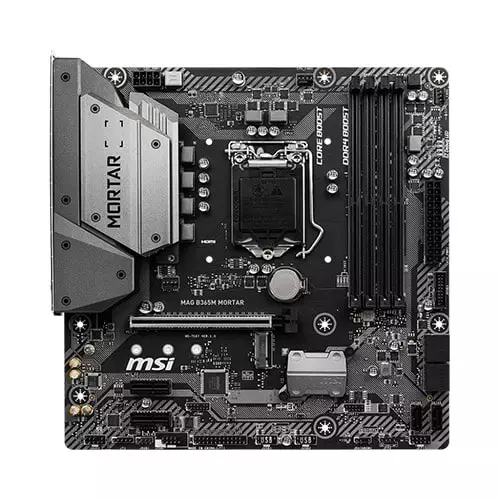

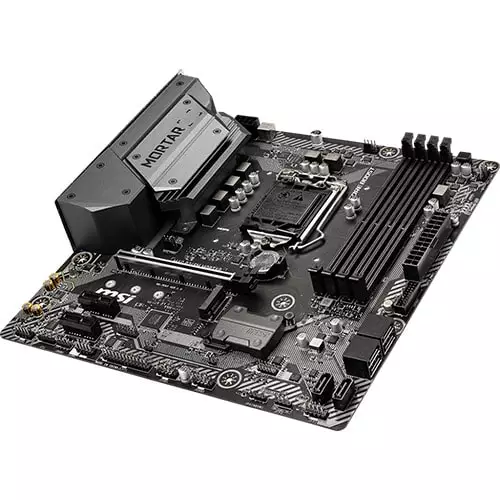

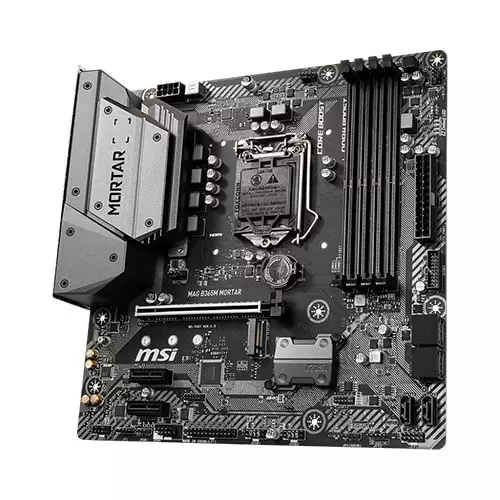

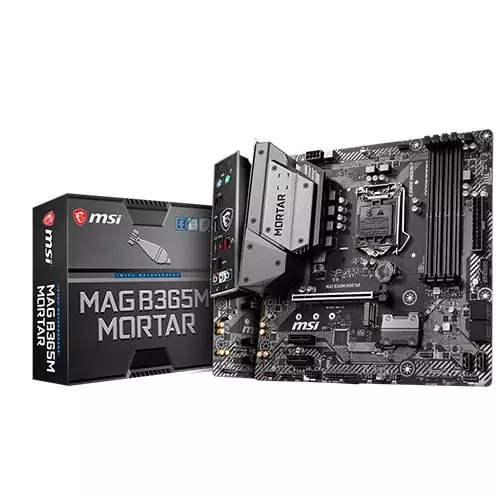

The MSI MAG B365M MORTAR LGA 1151 Micro-ATX Motherboard from MSI is built on the Intel B365 Chipset and has an LGA 1151 socket designed for 9th/8th generation Intel Core, Pentium Gold, and Celeron processors. It's equipped with four DDR4 memory slots that support up to 64GB of 2666 MHz RAM. For storage, it has four SATA III ports and two M.2 slots, which also supports Intel Optane Memory. As a gaming-focused board, the MSI MAG B365M MORTAR has two PCIe 3.0 x 16 slots, ideal for graphics cards, and two PCIe 3.0 x 1 slot for other PCIe-based hardware. Other integrated features include Intel Gigabit LAN, HDMI, DVI-D, and DisplayPort outputs, and Realtek ALC892 7.1-channel high-definition audio. Moreover, this MSI MAG B365M MORTAR motherboard is equipped with RGB lighting that you can customize using MSI's downloadable software.


MSI MAG B365M MORTAR Interface:

B450 GAMING PLUS MAX

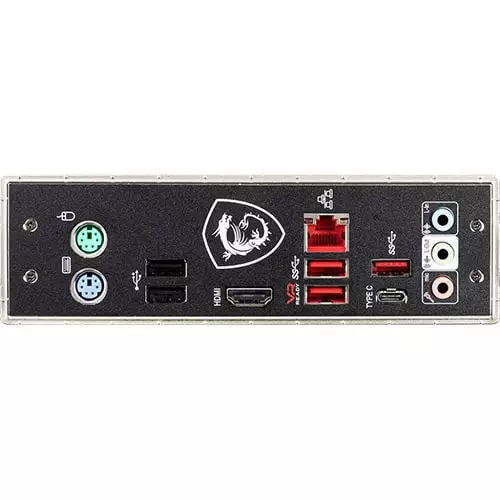

1. Mouse/Keyboard Ports

2. USB 2.0 Ports

3. HDMI Port

4. Intel GAMING LAN

5. USB 3.1 Gen1 Type A+C

6. >Pre-Installed I/O Shielding

 Better protection and more convenience for installation

7. Arsenal Sticker Area

Free for customization with personal style

8. Extended Heatsinks Design

Leading heatsink design, extended for maximum cooling and performance

9. DDR4 Boost

Optimized traces and isolated memory circuitry

10. PCI-E Steel Armor

Protecting VGA cards against bending and EM

11. Turbo M.2

Delivering speeds up to 32 Gb/s using Gen3 x4

12. Audio Boost

Optimized gaming audio using best components

MSI MAG B365M MORTAR Features

MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed. Intel LAN Premium network solution from Intel for professional and multimedia use. Delivers a secure, stable and fast network connection.

Turbo M.2

Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.

Core Boost

With premium layout and fully digital power design to support more cores and provide better performance.

Audio Boost

Reward your ears with studio grade sound quality for the most immersive audio experience.

PCI-E Steel Armor

Protecting VGA cards against bending and EMI

Mystic Light Extension

Control both RGB and RAINBOW strips with independent LEDs added to your system with Mystic Light APP and mobile device.
