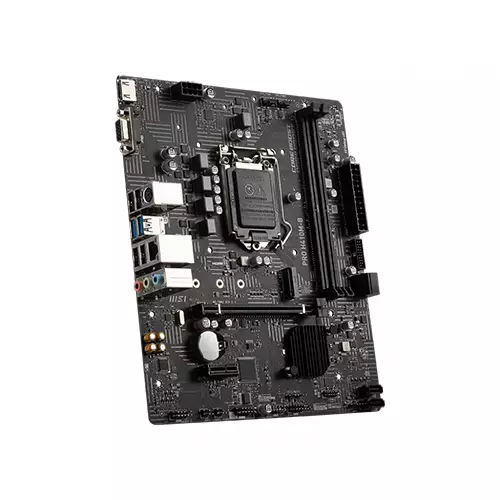

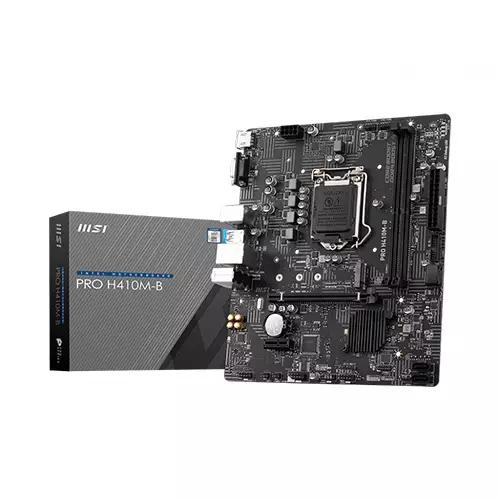

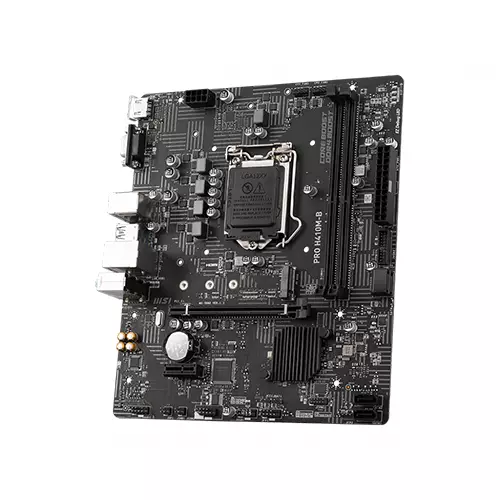

MSI Intel PRO H410M-B Micro-ATX Motherboard

MSI Intel PRO H410M-B Micro-ATX Motherboard

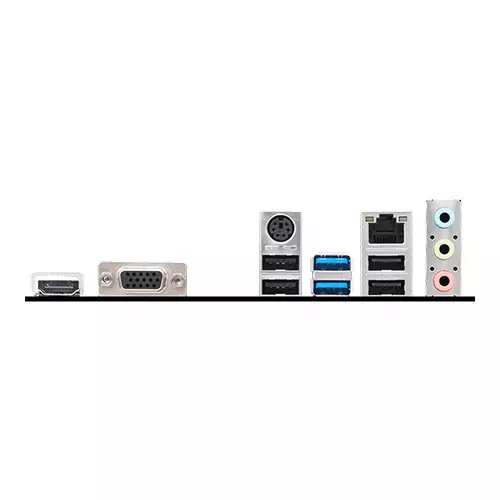

Supports 10th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket Supports DDR4 Memory, up to 2933(Max) MHz Core Boost: With premium layout and digital power design to support more cores and provide better performance. DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability. Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs Audio Boost: Reward your ears with studio grade sound quality .Based upon Intel H410 chipset architecture, the H410M-b PRO's LGA 1200 socket allows you to install 10th gen Intel Core i9, Pentium Gold, and Celeron processors. Two dual-channel memory slots allow you to take advantage of DDR4 memory modules with speeds up to 2933 MHz. You can connect several hard drives with four SATA III and two M.2 ports for enhanced program loading and increasing overall performance. Install graphics, sound, or networking cards with one PCIe 3.0 x16 and one PCIe 3.0 x1 slot. An RJ45 port is also available for wired internet connectivity, and with 7.1-channel high-definition audio, you can experience a wide range of entertainment. This motherboard is only compatible with Windows 10 (64-bit) operating systems.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

EXTREME STABILITY & COMPATIBILITY TESTING

MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations.

DIY Friendly Design
Whether you are a seasoned or amateur builder, the H410M-b PRO is designed for simplicity and durability, giving you all the tools you need to put together a PC optimized for your business-level needs. Steel armor PCIe slots are reinforced with heavy soldered connections to prevent bending along with an XL clip for easy device swapping. Double ESD protection prevents shorts by adding another grounding layer to mounting holes. Additionally, an EZ debug LED system tells you if components are experiencing any issues, reducing time spent on troubleshooting.
Enhanced Performance
MSI constructed the H410M-b PRO with enhanced features to increase system performance. The foundation of this board is built on 2oz thickened copper printed circuits for increased durability and conductivity between components. Core Boost, DDR4 Boost, and Lightning Gen 4 all work together to provide better stability during increased workloads while as well as maximizing transfer-speed bandwidth. Enrich your media experience with MSI's Audio Boost and 4K support, providing clear visuals and crisp sound.
MSI Dragon Center
Take control of advanced motherboard features directly from your dashboard with MSI's free Dragon Center software. Giving you total fan control, overclock settings, and hardware monitoring, you can fine-tune your experience depending on your needs. You can also set up specific user scenarios, automatic live updates, and adjust monitor settings for customizable brightness and color adjusting.
