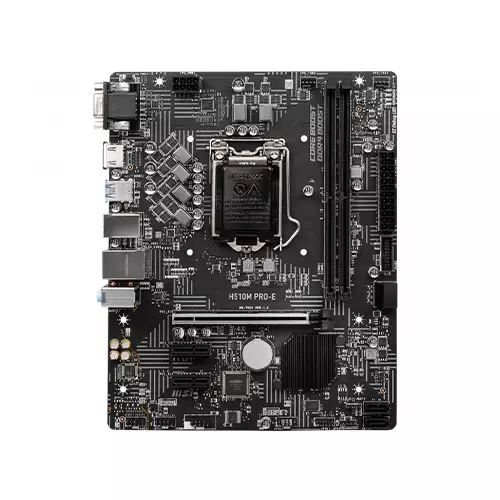

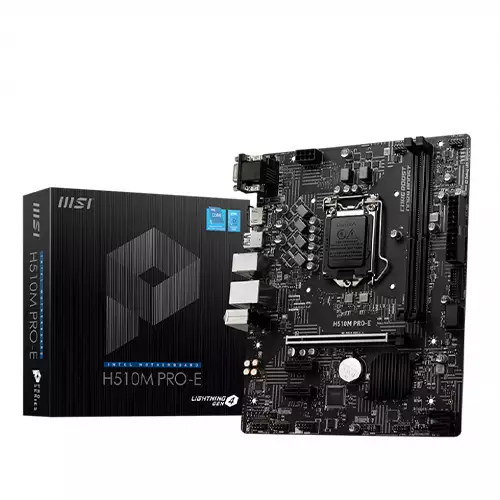

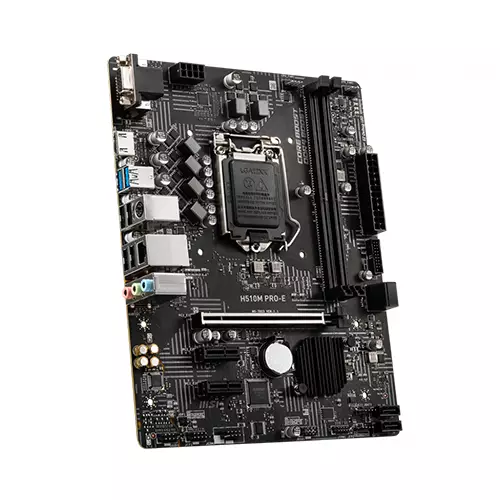

MSI H510M PRO-E MIRCO-ATX 10TH GEN & 11TH GEN INTEL MOTHERBOARD
MSI H510M PRO-E MIRCO-ATX 10TH GEN & 11TH GEN INTEL MOTHERBOARD
MSI H510M PRO-E MIRCO-ATX 10TH GEN & 11TH GEN INTEL MOTHERBOARD - 1
MSI H510M PRO-E MIRCO-ATX 10TH GEN & 11TH GEN INTEL MOTHERBOARD - 2
MSI H510M PRO-E MIRCO-ATX 10TH GEN & 11TH GEN INTEL MOTHERBOARD - 3

MSI H510M PRO-E MIRCO-ATX 10TH GEN & 11TH GEN INTEL MOTHERBOARD

0 Reviews
Stock : Up Coming
PID : P0402506102
SKU : MIRCOPROEYFG
Brand : MSI
Model : H510M PRO-E
Warranty : 3 years
  • Intel H510 Chipset
  • mATX Form Factor
  • Memory Type DDR4
  • 2x DDR4 memory slots

SPECIFICATIONS

Processor

Supported CPU Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors

Mainboard

Chipset Intel H510 Chipset

Memory

Memory 2x DDR4 memory slots, support up to 64GB1

Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)

Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel® Extreme Memory Profile (XMP)

Storage

Supported Storage 4x SATA 6Gb/s ports (From H510 Chipset)

Graphics

Graphics 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz

1x HDMI 1.4 port, supports a maximum resolution of 4K 30Hz

Networking & Connectivity

LAN 1x Realtek RTL8111 Gigabit LAN controller

Audio & Microphone

Audio Realtek ALC897 Codec

7.1-Channel High Definition Audio

Ports

Slots 1x PCIe x16 slot (From CPU)

Support up to PCIe 4.0 for 11th Gen Intel® CPU

Support up to PCIe 3.0 for 10th Gen Intel® CPU

2x PCIe 3.0 x1 slots (From PCH)
Internal I/O Ports 1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

4x SATA 6Gb/s connectors

1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports)

1x USB 2.0 connector (support additional 2 USB ports)

1x 4-pin CPU fan connector

1x 4-pin system fan connector

1x Front panel audio connector

2x System panel connectors

1x Serial port connector

1x Chassis Intrusion connector

1x Clear CMOS jumper

1x TPM module connector
USB Intel H510 Chipset

4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)

6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)
HDMI Yes

Physical Specification

Form Factor mATX Form Factor
Dimension 9.3 x 7.5 in. (23.6 cm x 19.0 cm)

Warranty Information

Warranty 3 Years

DESCRIPTION

MSI H510M PRO-E Mirco-ATX Motherboard in Bangladesh

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

FROZR AI COOLING

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

FAST AND FUTURE-READY STORAGE

MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

EXTREME STABILITY & COMPATIBILITY TESTING

MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations.

Features :

  • Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 3200(Max) MHz
  • Core Boost: With premium layout and digital power design to support more cores and provide better performance.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
  • Lightning Fast Experience: PCIe 4.0
  • Audio Boost: Reward your ears with studio grade sound quality
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

[product_table id="34" limit="10" type="filter" filter_category="7270"]


REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the MSI H510M PRO-E MIRCO-ATX 10TH GEN & 11TH GEN INTEL MOTHERBOARD Price in Bangladesh 2026 ?

The MSI H510M PRO-E Price in BD is 8,900৳ . This MSI H510M PRO-E MIRCO-ATX 10TH GEN & 11TH GEN INTEL MOTHERBOARD Manufacturing by MSI Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you MSI H510M PRO-E by 8,900৳ and its regular price is 9,800৳ Which is also Up Coming Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
