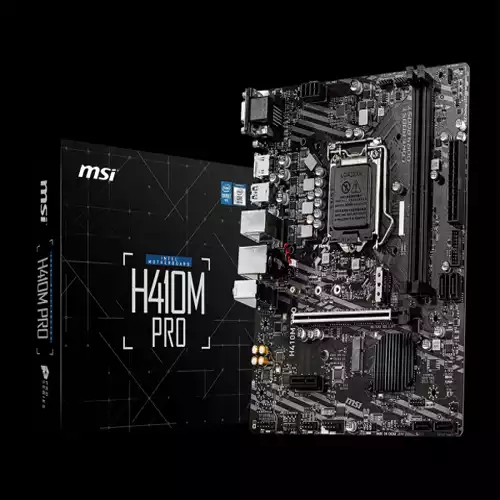

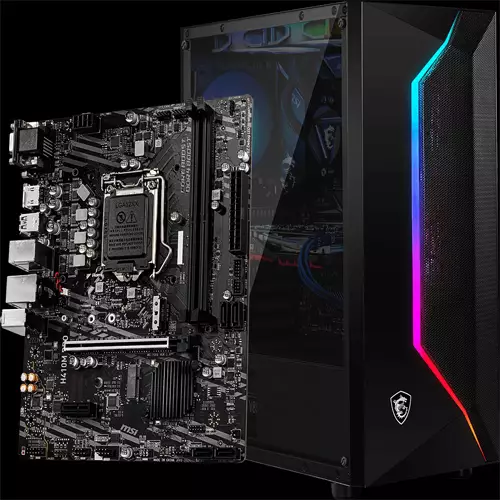

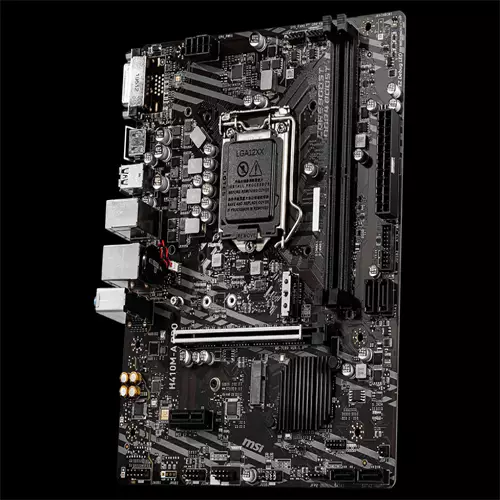

MSI H410M PRO Mirco ATX Motherboard
MSI H410M PRO Mirco ATX Motherboard
MSI H410M PRO Mirco ATX Motherboard - 0
MSI H410M PRO Mirco ATX Motherboard - 0

MSI H410M PRO Mirco ATX Motherboard

0 Reviews
Stock : Discontinued
PID : P00025061843
Brand : MSI
Model : H410M PRO
Warranty : 3 Years
  • Supports 10th Gen/Pentium/Celeron
  • Chipset Intel H410
  • Supports up to DDR4 2933 MHz
  • Audio Realtek ALC892/ALC897

SPECIFICATIONS

Processor

Supported CPU Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket

Mainboard

Chipset Intel H410

Memory

Memory Intel Core i7/ i9
-Supports up to DDR4 2933 MHz
Intel Core i5 and below
-Supports up to DDR4 2666 MHz
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)

Storage

Supported Storage Intel H410 Chipset
4x SATA 6Gb/s ports
1x M.2 slot (Key M)
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices

Graphics

Graphics 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
1x DVI-D port, supports a maximum resolution of 1920x1200 60Hz
1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 30Hz

Networking & Connectivity

LAN Intel I219V Gigabit LAN controller

Audio & Microphone

Audio Realtek ALC892/ALC897 Codec
7.1-Channel High Definition Audio

Ports

Slots 2 x DIMM
Internal I/O Ports 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x Front panel connectors
1x Serial port connector
1x TPM module connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x 4-pin RGB LED connector
1x 3-pin RAINBOW LED connector
4x EZ Debug LED
External I/O Ports VGA
Keyboard / Mouse
LAN
DVI-D
HDMI
USB 3.2 Gen 1 5Gbps Type-A
USB 2.0
USB 2.0
Audio Connectors
USB Intel H410 Chipset
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)
HDMI 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 30Hz

Physical Specification

Form Factor Mirco-ATX Form Factor
Dimension 9.3 in. x 7.5 in. (23.6 cm x 19.0 cm)

Warranty Information

Warranty 03 Years

DESCRIPTION

MSI H410M PRO Mirco ATX Motherboard

Focus on business programs and optimize your workflow with the H410M PRO Micro-ATX Motherboard from MSI. Designed to streamline assembly time, MSI allows you to focus on components that will enhance workload efficiency. The H410M PRO is ideal for DIY users who wish to replace older out-of-date motherboards or enjoy building from scratch.
Based upon Intel H410 chipset architecture, the H410M PRO's LGA 1200 socket allows you to install 10th gen Intel Core i9, Pentium Gold, and Celeron processors. Two dual-channel memory slots allow you to take advantage of DDR4 memory modules with speeds up to 2933 MHz. You can connect several hard drives with four SATA III and one M.2 port for enhanced program loading and increasing overall performance. Install graphics, sound, or networking cards with one PCIe 3.0 x16 and one PCIe 3.0 x1 slot. An RJ45 port is also available for wired internet connectivity, and with 7.1-channel high-definition audio, you can experience a wide range of entertainment. This motherboard is only compatible with Windows 10 (64-bit) operating systems.
DIY Friendly Design
Whether you are a seasoned or amateur builder, the H410M PRO is designed for simplicity and durability, giving you all the tools you need to put together a PC optimized for your business-level needs. Steel armor PCIe slots are reinforced with heavy soldered connections to prevent bending along with an XL clip for easy device swapping. Double ESD protection prevents shorts by adding another grounding layer to mounting holes. Additionally, an EZ debug LED system tells you if components are experiencing any issues, reducing time spent on troubleshooting.
Enhanced Performance
MSI constructed the H410M PRO with enhanced features to increase system performance. The foundation of this board is built on 2oz thickened copper printed circuits for increased durability and conductivity between components. Core Boost, DDR4 Boost, and Lightning Gen 4 all work together to provide better stability during increased workloads while also maximizing transfer speed bandwidth. Enrich your media experience with MSI's Audio Boost and 4K support, providing clear visuals and crisp sound.
MSI Dragon Center
Take control of advanced motherboard features directly from your dashboard with MSI's free Dragon Center software. Giving you total fan control, overclock settings, hardware monitoring, and LAN management, you can fine-tune your experience depending on your needs. You can also set up specific user scenarios, automatic live updates, and adjust monitor settings for customizable brightness and color adjusting.



[product_table id="34" limit="10" type="filter" filter_category="6136"]

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the MSI H410M PRO Mirco ATX Motherboard Price in Bangladesh 2026 ?

The MSI H410M PRO Price in BD is 42,500৳ . This MSI H410M PRO Mirco ATX Motherboard Manufacturing by MSI Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you MSI H410M PRO by 42,500৳ and its regular price is 45,000৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
