MSI B760M PROJECT ZERO DDR5 mATX Motherboard

Msi B760M PROJECT ZERO DDR5 mATX Motherboard

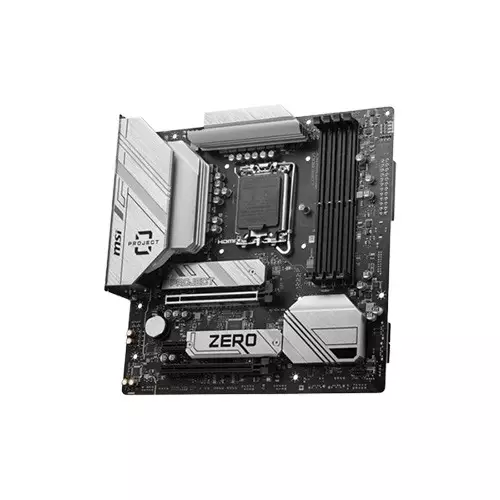

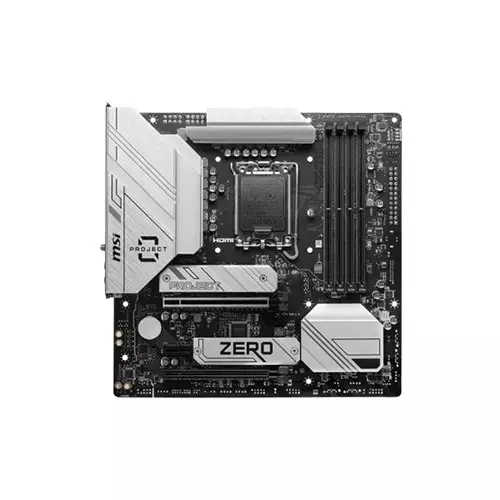

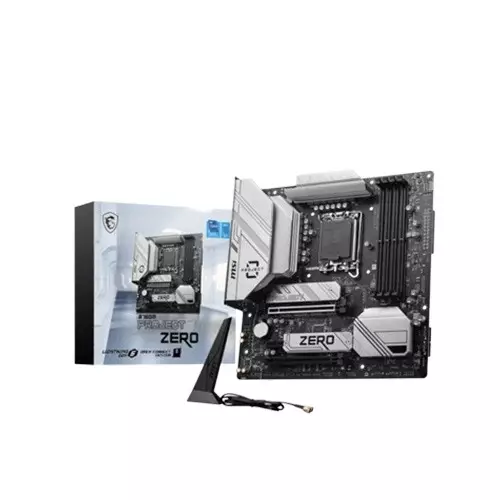

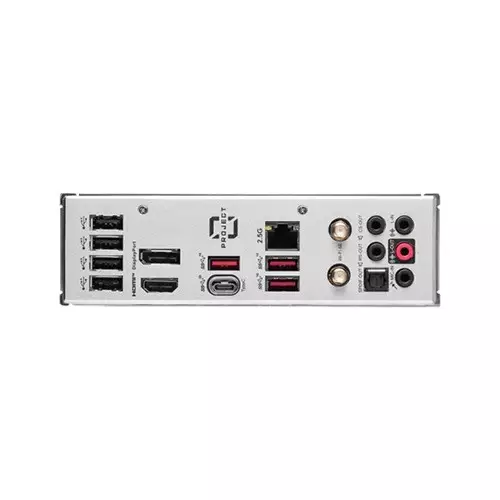

MSI B760M PROJECT ZERO DDR5 mATX Motherboard, available at TechLand BD, is a high-performance motherboard designed to support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold, and Celeron Processors. It features an LGA1700 socket and supports up to 192GB of DDR5 memory with overclocking frequencies up to 7800+ MHz. The motherboard also supports dual-channel mode, non-ECC, un-buffered memory, and Intel Extreme Memory Profile. It comes with onboard graphics with 1x HDMI and 1x DisplayPort, supporting maximum resolution of 4K 60Hz. The motherboard has 2x PCI-E x16 slots and 1x PCI-E x1 slot, with varying PCIe generations and support. It offers ample storage options with 2x M.2 slots and 4x SATA 6G ports, and supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices. The motherboard is equipped with multiple USB ports of varying generations and types, both at the front and rear. It features a Realtek 2.5Gbps LAN and Intel Wi-Fi 6E for connectivity, and supports Bluetooth 5.3. The motherboard also has a Realtek ALC897 Codec for 7.1-Channel High Performance Audio and supports S/PDIF output. It has multiple internal I/O connectors and LED features. The back panel ports include USB 2.0, DisplayPort 1.4, USB 3.2 Gen 2 10Gbps Type-A, 2.5G LAN Port, Wi-Fi / Bluetooth Antenna, HD Audio Connectors, HDMI 2.1 Port, USB 3.2 Gen 2x2 20Gbps Type-C, and Optical S/PDIF OUT. The motherboard supports Windows 11 64-bit and Windows 10 64-bit operating systems. The PCB is mATX form factor with dimensions of 243.84mmx243.84mm. This product is available at TechLand BD, ensuring quality and reliability.
