MSI B560M PRO WIFI 10th Gen and 11th Gen Micro ATX Motherboard
MSI B560M PRO WIFI 10th Gen and 11th Gen Micro ATX Motherboard

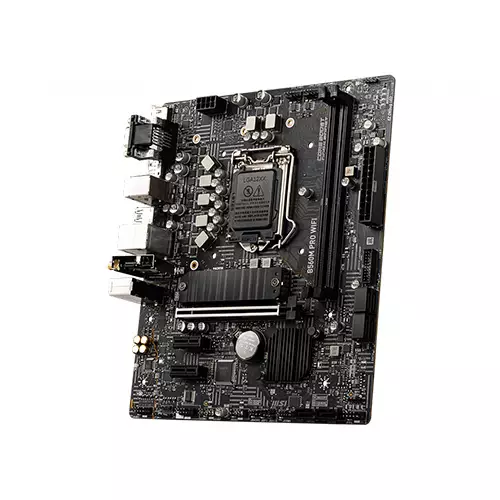

MSI B560M PRO WIFI 10th Gen and 11th Gen Micro ATX Motherboard - 1

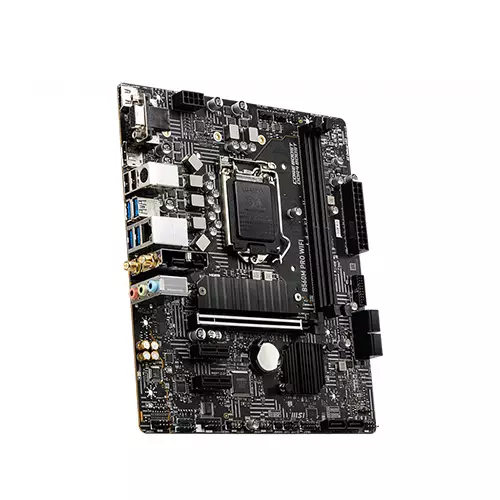

MSI B560M PRO WIFI 10th Gen and 11th Gen Micro ATX Motherboard - 2
MSI B560M PRO WIFI 10th Gen and 11th Gen Micro ATX Motherboard - 3

MSI B560M PRO WIFI 10th Gen and 11th Gen Micro ATX Motherboard

0 Reviews
Stock : Discontinued
PID : P00025062878
Brand : MSI
Model : B560M PRO WIFI
Warranty : 3 Years
  • Intel B560 chipset
  • Intel Wi-Fi 6 AX201
  • Supports 10th and 11th Gen Processors
  • 2x DDR4 memory slots

SPECIFICATIONS

Processor

Supported CPU Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors
Processor socket LGA 1200

Mainboard

Chipset Intel B560 chipset
BIOS 1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.2, SMBIOS 3.0
Multi-language

Memory

Memory 2x DDR4 memory slots, support up to 64GB1
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5200 MHz
1DPC 2R Max speed up to 4700+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

Storage

Supported Storage 6x SATA 6Gb/s ports (From B560 chipset)
1x M.2 slot (Key M)1
Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU)
Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From B560 chipset)1
Supports 2242/ 2260/ 2280 storage devices
Supports Intel® Smart Response Technology for Intel Core™ processors

Graphics

Graphics 1x VGA port, supports a maximum resolution of 2048x1280 @60Hz, 1920x1200 @60Hz12
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz12
1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz

Networking & Connectivity

LAN Realtek ALC897 Codec
7.1-Channel High Definition Audio
WiFi Intel Wi-Fi 6 AX201
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
WiFi 6 pre-certified
Supports Bluetooth® 5.1, FIPS, FISMA

Audio & Microphone

Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio

Ports

Slots 1x PCIe x16 slot (From CPU)
Support up to PCIe 4.0 for 11th Gen Intel CPU
Support up to PCIe 3.0 for 10th Gen Intel CPU
2x PCIe 3.0 x1 slots (From B560 chipset)
Internal I/O Ports 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
1x M.2 slot (M-Key)
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
1x Serial port connector
1x Tuning Controller Connector

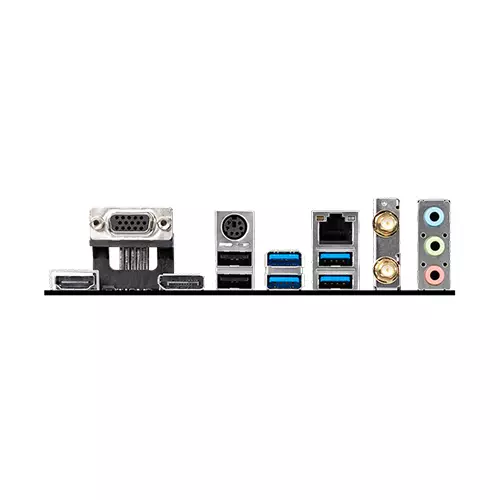

External I/O Ports VGA
Keyboard / Mouse
LAN port
WiFi / Bluetooth
Audio connector
HDMI
DisplayPort
USB 2.0
USB 3.2 Gen 1 5Gbps Type-A
HDMI 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz

Physical Specification

Form Factor Miro-ATX Form Factor
9.3 in. x 8.0 in. (23.6 cm x 20.2 cm)

Warranty Information

Warranty 03 Years

DESCRIPTION

MSI B560M PRO WIFI  Motherboard in Bangladesh

MSI B560M PRO WIFI  Motherboard Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1200 socket. MSI B560M PRO WIFI  Motherboard Supports DDR4 Memory, up to 5200(OC) MHz.Core Boost With premium layout and digital power design to support more cores and supply better performance. MSI B560M PRO WIFI  Motherboard DDR4 Boost  Advanced technology to deliver pure data signals for the simplest performance and stability. MSI B560M PRO WIFI  Motherboard Lightning Fast Experience PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution Upgraded network solution for professional and multimedia use. MSI B560M PRO WIFI  Motherboard Delivers a secure, stable and fast network connection audio Boost  Reward your ears with studio grade sound quality steel Armor Protecting VGA cards against bending and EMI for better performance, stability, and strength.

[product_table id="34" limit="10" type="filter" filter_category="7270"]


REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the MSI B560M PRO WIFI 10th Gen and 11th Gen Micro ATX Motherboard Price in Bangladesh 2026 ?

The MSI B560M PRO WIFI Price in BD is 43,500৳ . This MSI B560M PRO WIFI 10th Gen and 11th Gen Micro ATX Motherboard Manufacturing by MSI Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you MSI B560M PRO WIFI by 43,500৳ and its regular price is 45,000৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
