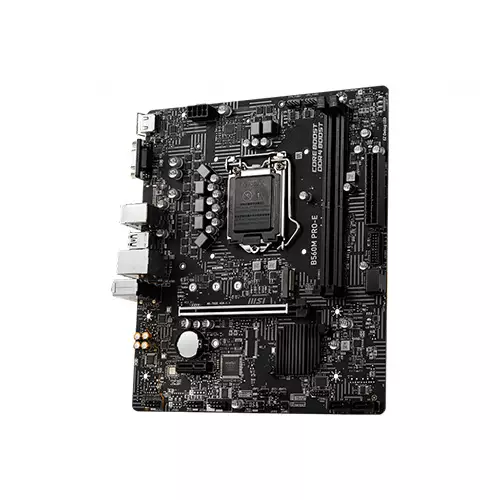

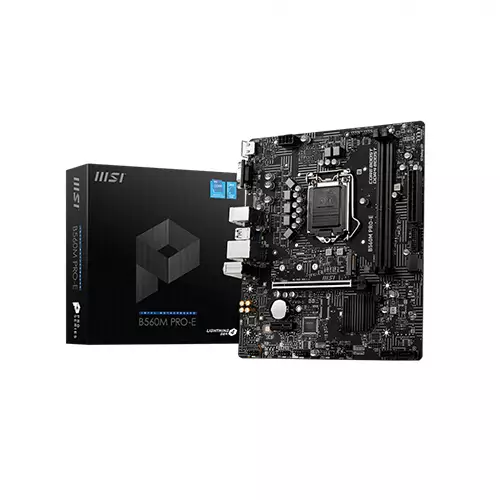

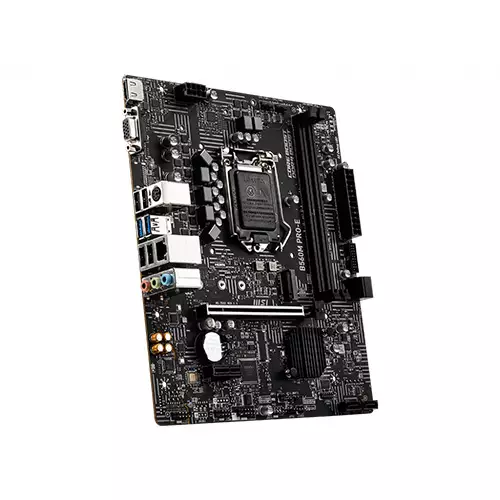

MSI B560M PRO-E 10th and 11th Gen Micro ATX Motherboard
MSI B560M PRO-E 10th and 11th Gen Micro ATX Motherboard
MSI B560M PRO-E 10th and 11th Gen Micro ATX Motherboard - 1
MSI B560M PRO-E 10th and 11th Gen Micro ATX Motherboard - 2
MSI B560M PRO-E 10th and 11th Gen Micro ATX Motherboard - 3

MSI B560M PRO-E 10th and 11th Gen Micro ATX Motherboard

0 Reviews
Stock : Out of Stock
PID : P0402506061
Brand : MSI
Model : B560M PRO-E
Warranty : 3 years
  • Intel B560 chipset
  • Intel I219V 1Gbps LAN controller
  • Supports 10th and 11th Gen Processors
  • 2x DDR4 memory slots

Product Pricing

Discount Price

৳10,100 ৳11,500
+ Available Payment Method

EMI Start From*

৳356

SPECIFICATIONS

Processor

Supported CPU Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors
Processor socket LGA 1200

Mainboard

Chipset Intel B560 chipset
BIOS 1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.2, SMBIOS 3.0
Multi-language

Memory

Memory 2x DDR4 memory slots, support up to 64GB1
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 4800 MHz
1DPC 2R Max speed up to 4600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

Storage

Supported Storage Intel B560 Chipset
4x SATA 6Gb/s ports (From B560 Chipset)
1x M.2 slot (Key M)
M2_1 slot (From B560 Chipset)
Supports up to PCIe 3.0 x4
Supports SATA 6Gb/s1
Supports 2242/ 2260/ 2280 storage devices

Graphics

Graphics 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz

Networking & Connectivity

LAN Intel I219V 1Gbps LAN controller

Audio & Microphone

Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio

Ports

Slots 1x PCIe x16 slot (From CPU)
Support up to PCIe 4.0 for 11th Gen Intel CPU
Support up to PCIe 3.0 for 10th Gen Intel CPU
1x PCIe 3.0 x1 slot (From PCH)
Internal I/O Ports 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x System panel connectors
1x Serial port connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector

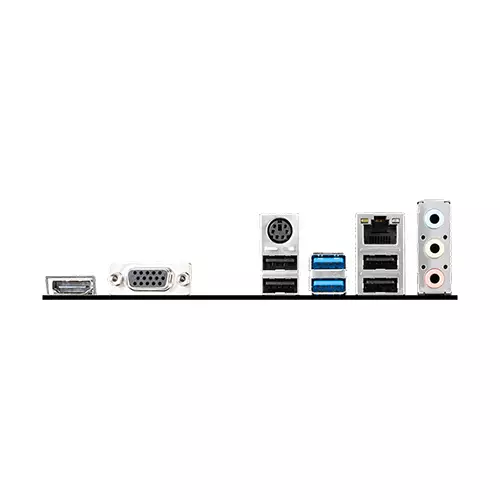

External I/O Ports HDMI
VGA
Mouse / Keyboard
LAN port
Audio connector
USB 2.0
USB 3.2 Gen 1 5Gbps Type-A
USB 2.0
HDMI 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz

Physical Specification

Form Factor mATX Form Factor
9.29 in. x 7.95 in. (23.6 cm x 20.2 cm)

Warranty Information

Warranty 03 Years

DESCRIPTION

MSI B560M PRO E Motherboard in Bangladesh

Meet the MSI B560M PRO-E Motherboard! a part of the professional Series by MSI, users can work smarter by being provided an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. Features include core boost, audio boost, DDR4 Boost, and lightning Gen 4 solution. Lighter than most B560 models on features, this is often far and away from the foremost basic of MSI's B560 stack. within the center of the board may be a single full-length PCIe 4.0 x16 slot, with a further PCIe 3.0 x1 slot. Storage options include one PCI 4.0 x4 M.2 slot, with four SATA ports with RAID 0, 1, 5, and 10 support. within the top-right hand corner maybe a pair of memory slots, with support for up to DDR4-4800, and a maximum capacity of 64 GB.

Cooling

MSI B560M PRO E Motherboard provides many thermal solutions! Frozr AI Cooling detects CPU & GPU temperatures and automatically adjusts system fans to make sure your system is kept cool. choose between performance mode, silent mode, and manual mode!

Connectivity

MSI B560M PRO E Motherboards features many options for your needs. Stable LAN, faster storage and USB transfer speeds, and other connectors are ready for you to enlarge your flexibility. Stay connected with Intel LAN, optimized for stable internet throughput ideal for championship level online plays.

Experience More

MSI B560M PRO E Motherboard Designed to satisfy any professional workflow, MSI motherboards allow you to enjoy enhancing tools that are easy to use. MSI lightning Gen 4 PCI-E is that the latest and therefore the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. MSI B560M PRO E Motherboard DDR4 Boost provides extreme stability and compatibility, while core boost combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision.


[product_table id="34" limit="10" type="filter" filter_category="6136"]

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the MSI B560M PRO-E 10th and 11th Gen Micro ATX Motherboard Price in Bangladesh 2026 ?

The MSI B560M PRO-E Price in BD is 10,100৳ . This MSI B560M PRO-E 10th and 11th Gen Micro ATX Motherboard Manufacturing by MSI Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you MSI B560M PRO-E by 10,100৳ and its regular price is 11,500৳ Which is also Out of Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
