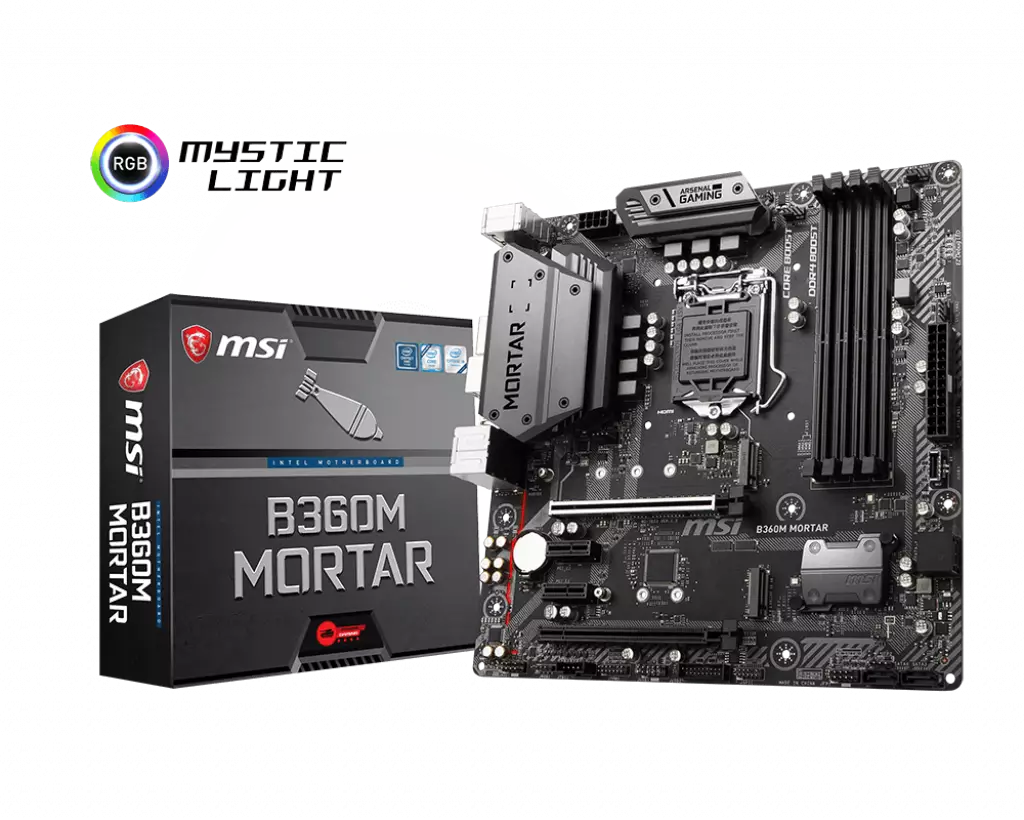

MSI B360M Mortar Intel Motherboard
MSI B360M Mortar Intel Motherboard

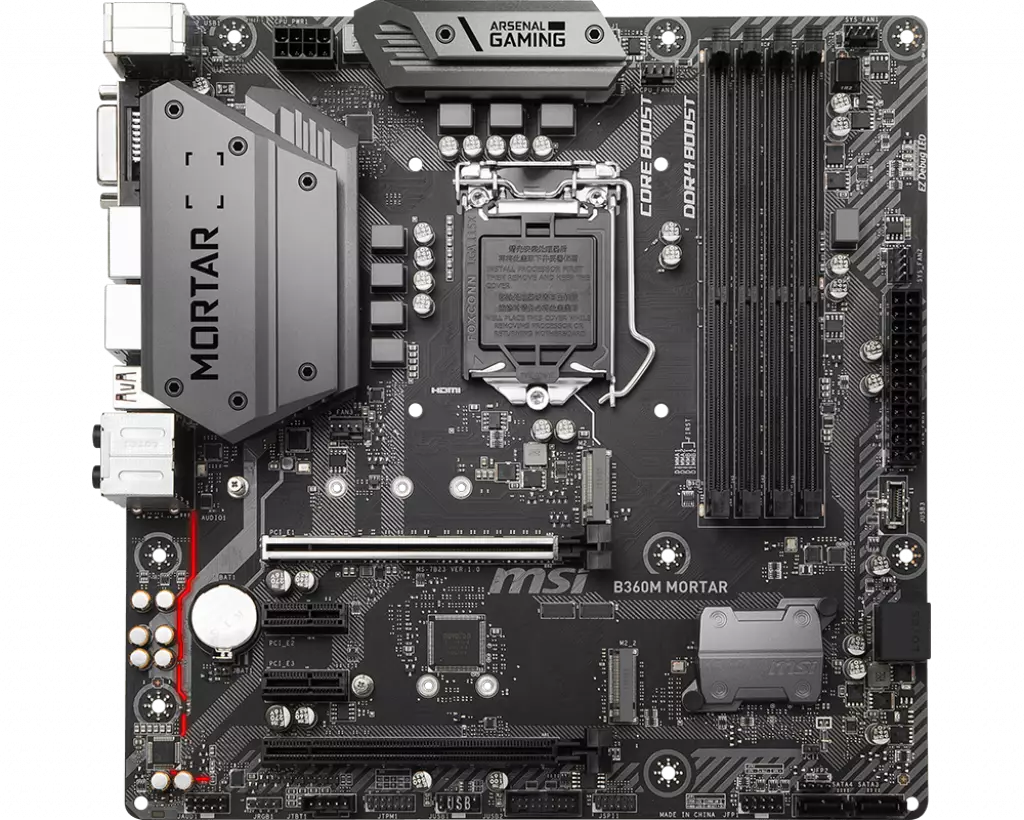

MSI B360M Mortar Intel Motherboard - 1
MSI B360M Mortar Intel Motherboard - 2

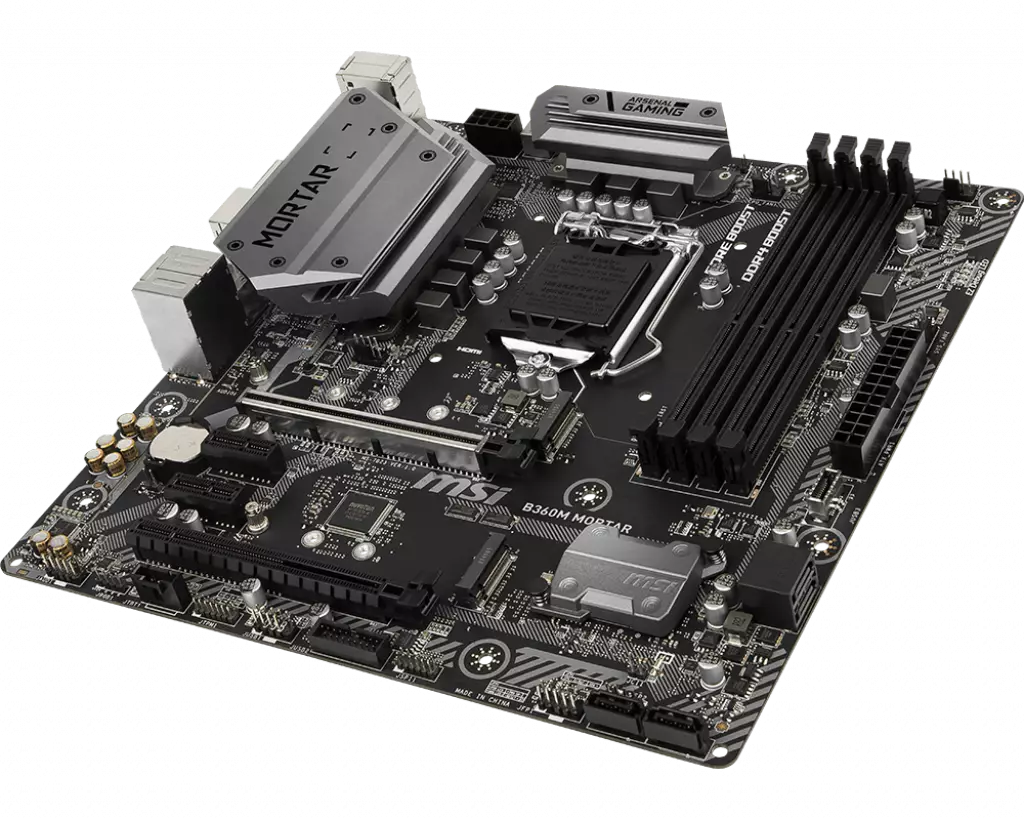

MSI B360M Mortar Intel Motherboard - 3

MSI B360M Mortar Intel Motherboard

0 Reviews
Stock : Discontinued
PID : P00025061141
Brand : MSI
Model : MSI B360M
Warranty : 3 Years
  • Memory type: DDR4
  • Supports 9th/8th/Pentium/Celeron
  • Chipset: Intel B360
  • Intel I219-V Gigabit LAN

SPECIFICATIONS

Processor

Supported CPU Supports 9th / 8th Gen Intel®Core™ / Pentium®Gold /Celeron®
processors for LGA 1151 socket

Mainboard

Chipset Intel® B360 Chipset

Memory

Memory 4 DIMMs, Dual Channel DDR4 up to 2666MHz

Storage

Supported Storage 2 x Turbo M.2 slots, supports Intel®
OptaneTM Technology
4 x SATA 6Gb/s

Graphics

Graphics 2 x PCI-E 3.0 x16 slot, Supports 2-way CrossFire

Networking & Connectivity

LAN Intel® I219-V Gigabit LAN

Audio & Microphone

Audio 8-Channel(7.1) HD Audio with Audio Boost

Ports

Slots 2 x PCIe 3.0 x16
2 x PCIe 3.0 x1
Internal I/O Ports 1. PS/2 Combo Port
2. DisplayPort
3. LAN Port
4. USB 3.1 Gen2 Type A
5. HD Audio Connectors
6. USB 2.0 Port
7. DVI-D Port
8. HDMI Port
9. USB 2.0 Port
10. USB 3.1 Gen2 Type C
11. Optical S/PDIF OUT

Physical Specification

Form Factor Micro-ATX

Warranty Information

Warranty 3 Years

DESCRIPTION

MSI B360M Mortar Intel Motherboard

Specifications :

●︎ Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket

●︎ Supports DDR4 Memory, up to 2666 MHz

●︎ Twin Turbo M.2: With 2 x M.2 slots. Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs

●︎ Intel Turbo USB 3.1 Gen2: Powered by Intel, ensure an uninterrupted connection with more stability and fastest USB speeds.

●︎ Extended Heatsink Design: MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.

●︎ Core Boost: With premium layout optimized power design to support more cores and provide better performance.

●︎ DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability.

●︎ GAMING LAN: Experience smooth online gaming experience by reducing CPU overhead and offer long-term network usage.

●︎ Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience

●︎ MULTI-GPU: With STEEL ARMOR PCI-E slot. Supports 2-Way AMD Crossfire™

●︎ EZ Debug LED: Easiest way to troubleshoot.

**03 Year Warranty


Related Video :




MSI Mortar Intel Motherboard

The B360M Mortar LGA 1151 Micro-ATX Motherboard from MSI is built on the Intel B360 chipset and has an LGA 1151 socket designed for 8th generation Intel Core, Pentium Gold, and Celeron processors. It's equipped with four DDR4 memory slots that support up to 64GB of 2666 MHz RAM. For storage, it has four SATA III ports and a two M.2 slots, which also supports Intel Optane Memory. As a gaming-focused board, the B360M Mortar has two PCIe 3.0 x 16 slots, ideal for graphics cards, and two PCIe 3.0 x 1 slots for other PCIe-based hardware. Other integrated features include Intel Gigabit LAN, HDMI, DVI-D, and DisplayPort outputs, and Realtek ALC892 7.1-channel high-definition audio. Moreover, this motherboard is equipped with RGB lighting that you can customize using MSI's downloadable software.


[product_table id="34" limit="10" type="filter" filter_category="6136"]

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the MSI B360M Mortar Intel Motherboard Price in Bangladesh 2026 ?

The MSI MSI B360M Price in BD is 24,999৳ . This MSI B360M Mortar Intel Motherboard Manufacturing by MSI Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you MSI MSI B360M by 24,999৳ and its regular price is 25,999৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
