| Stock Status | Out Of Stock |
| Product ID | 17069 |
| Brand | Biostar |
| Product model | B450GT3 |
| Warranty | 3 years |
| Total Reviews | Based on 0 reviews. - Write a review |
| Processor | |
| Supported CPU | Supports AMD AM4 Socket for 3rd, 2nd and 1st Gen Ryzen/2nd and 1st Gen Ryzen with Radeon Vega. Graphics/Athlon with Radeon Vega Graphics Processors |
| Mainboard | |
| Chipset | AMD B450 |
| Memory | |
| Memory | Support Dual Channel DDR4 1866/2133/2400/2666/2933/3200(OC) MHz Max. Supports up to 64GB Memory. Each DIMM supports non-ECC 8/16 GB DDR4 module |
| Storage | |
| Supported Storage | 6 x SATA III Connectors (6Gb/s) : Supports AHCI & RAID 0, 1, 10 1 x M.2 (M Key) 32Gb/s Connector: Support PCI-E (32Gb/s) & SATA III (6Gb/s) SSD * M.2 (32Gb/s) : The bandwidth is depended on CPU, Ryzen is 32Gb/s ; APU & CPU is 16Gb/s. * When PCIE-M2_1 slot is occupied, the SATAIII_1 / SATAIII_2 connector will be disabled. |
| Graphics | |
| Graphics | By CPU model Supports DX12 Supports HDCP |
| Audio & Microphone | |
| Audio | Realtek ALC1150 7.1-Channel Audio Support HD Audio Support SPDIF_out |
| Networking & Connectivity | |
| LAN | Realtek RTL8118AS - 10/100/1000Mb/s Controller |
| Ports | |
| Slots | 1 x PCI-E 3.0 x16 Slot 1 x PCI-E 2.0 x16 Slot(x4) 2 x PCI-E 2.0 x1 Slots |
| Internal I/O Ports | 1 x USB 3.2 Gen1 Header(5Gb/s) (each header supports 2 USB 3.2 Gen1 ports) 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 6 x SATA III Connector (6Gb/s) 1 x Front Audio Header 1 x Front Panel Header 1 x S/PDIF-Out Header 1 x CPU Fan Connector 2 x System Fan Connector 2 x 5050 LED Header 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x Clear CMOS Header 1 x COM Port Header |

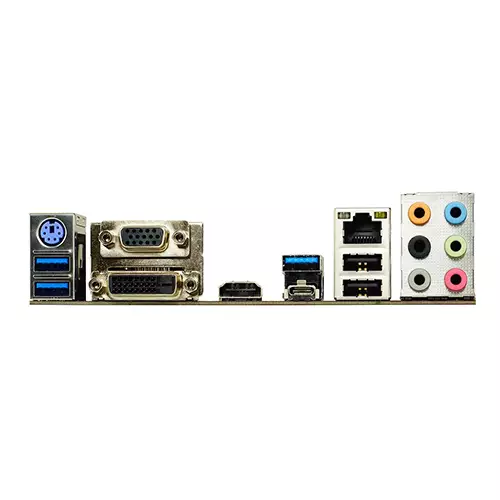

| External I/O Ports | 1 x PS/2 Keyboard/Mouse 1 x USB 3.2 Gen2 (10Gb/s) Type-C Port 1 x USB 3.2 Gen2 (10Gb/s) Type-A Port 2 x USB 3.2 Gen1 (5Gb/s) Ports 2 x USB 2.0 Ports 1 x HDMI Connector ,resolution up to 4096 x 2160@30Hz 1 x DVI-D Connector ,resolution up to 1920 x 1200 @60Hz 1 x VGA Port ,resolution up to 1920 x 1200 @60Hz 1 x LAN Port 6 x Audio Jacks |
| USB | 1 x USB 3.2 Gen2 Type-C Port(10Gb/s) (1 on rear I/O) 1 x USB 3.2 Gen2 Type-A Port(10Gb/s) (1 on rear I/O) 4 x USB 3.2 Gen1 Ports (5Gb/s) (2 on rear I/Os and 2 via internal headers) 6 x USB 2.0 Ports (2 on rear I/Os and 4 via internal headers) |
| Physical Specification | |
| Form Factor | Micro ATX Form Factor |
| Dimension | 24.4cm x 24.4cm ( W x L ) |

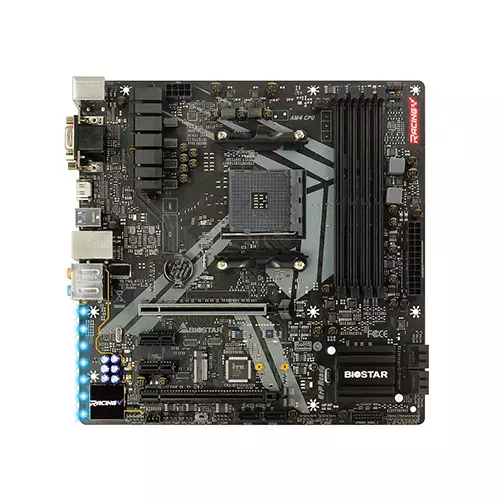

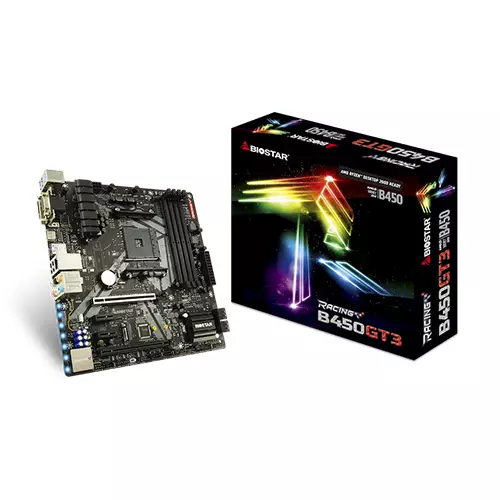

Biostar B450GT3 Motherboard Overview:
Biostar B450GT3 Motherboard with AMD B450 is the high-end chipset for overclockers and tweakers who need robust platforms. This chip provides the ultimate low-level control to its users and delivers ultimate graphics card bandwidth. A combination of exclusive hardware & software design including "ground-isolation circuit design", "an independent audio power", and "a built=on-board amplifier", with all these hardware features gives you the best audio quality and performance. As for software, we offer you a free bundle utility "Multi-Channel Calibration" which normally you'll find in high-level sound systems; this feature allows you to autodetect your location; with a user-friendly interface, you can easily adjust the volume of every speaker to make a well-balanced surround sound. And of course, the built-on-board amplifier always gives you a super powerful sound comparing to other motherboards. Provides high-quality sound with minimal loss of audio fidelity. DirectX 12 introduces the next version of Direct3D, the graphics API at the heart of DirectX. Direct3D. is one of the most critical pieces of a game or the game engine and we've redesigned it to be faster and more efficient than ever before. Direct3D 12 enables richer scenes, more objects, and full utilization of modern GPU hardware. Integrated HDMI with HDCP Onboard HDMI connector allows full video & audio support. It has industry-leading high definition video quality USB 3.2 Gen2 offers up to double the transfer speed of USB 3.2 Gen1 at 10 Gbps that allows for much higher data transfer rates and more efficient data transfer. And the Type-C connector is reversible so it's easier for the plugin. USB 3.2 Gen1 Type-A USB 3.2 Gen1 delivers compelling performance boosts and can be used to connect multiple devices without worrying about compatibility. It is capable of data transfer speeds up to 5Gbps and backwards compatible with all existing USB products. USB 3.2 Gen2 is a new standard called SuperSpeed USB 10Gbps to address increased performance and improve data transmission speed. It is for a max data transfer rate of 10Gbps and creates the best possible connection between your devices. Iron Slot Protection The exclusive Iron Slot Protection can reinforce PCI-E x16 slots to handle heavier graphics cards, prevent bending, and extend the longevity of the slot, making the new-gen RACING Series much more robust. Dual BIOS technology offers a backup BIOS chip to take over the failed main BIOS and recover the system automatically without factory repair.
