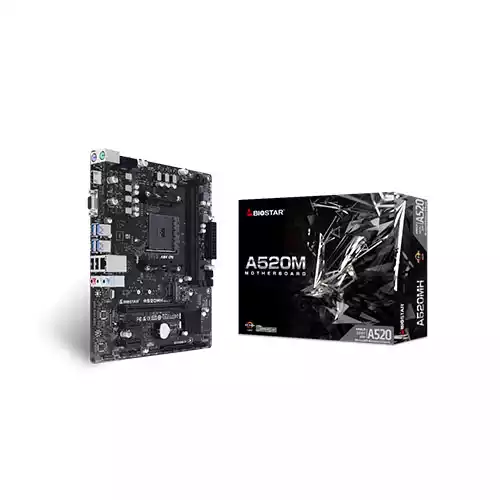

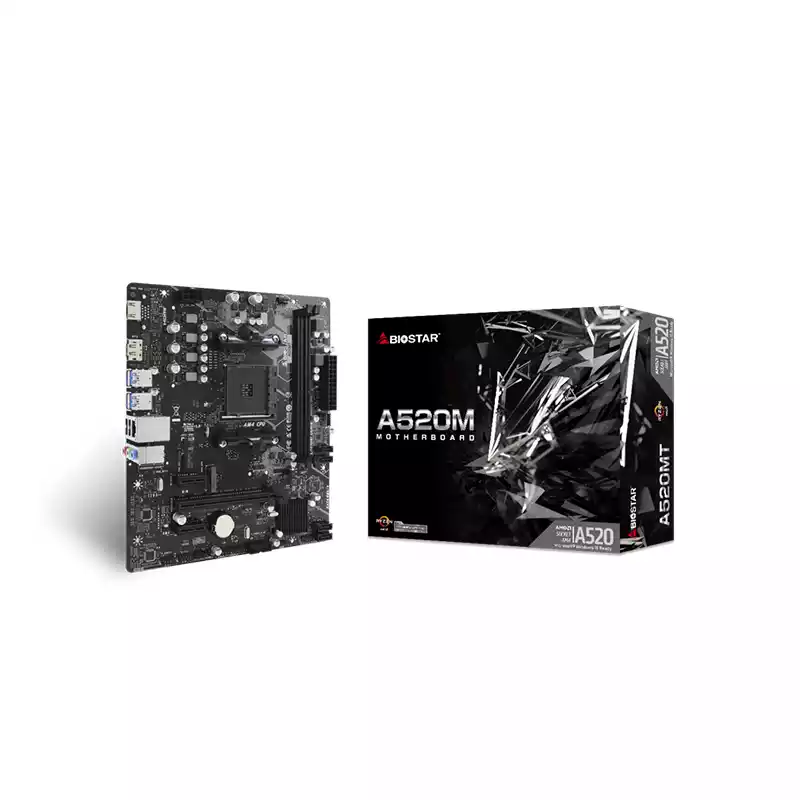

BIOSTAR A520MH MICRO ATX AMD AM4 MOTHERBOARD

BIOSTAR A520MH MICRO ATX AMD AM4 MOTHERBOARD PRICE IN BD

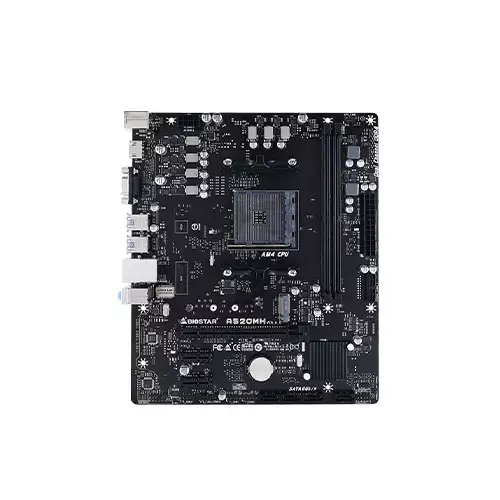

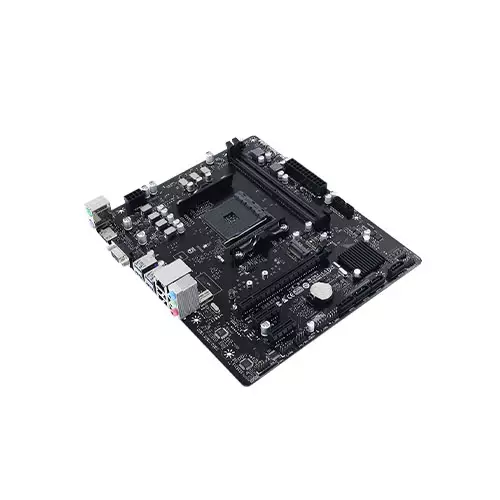

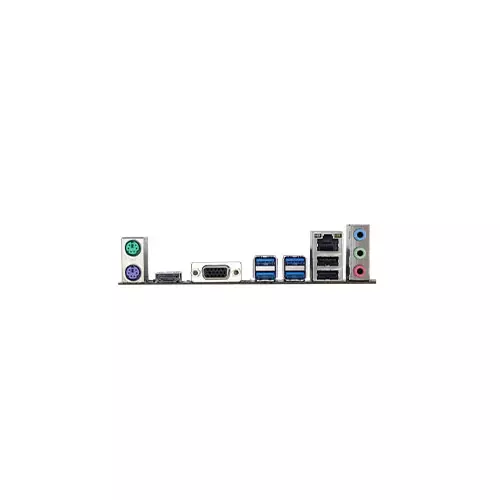

The Biostar A520MH motherboard is a Micro ATX form factor board that supports Socket AM4 and is compatible with 3rd Gen Ryzen processors (Matisse/Renoir) as well as Ryzen 4th Gen (Vermeer) processors. It also supports future AMD Ryzen processors with a BIOS update.The motherboard has two DDR4 DIMM memory slots that support a maximum of 64 GB memory, with support for DDR4 4400+(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200/ 2933 / 2667 / 2400 / 2133 / 1866, depending on the CPU model. The integrated video is dependent on the CPU model and supports DirectX 12 and HDCP.Storage options on the motherboard include 4 x SATA III connectors that support AHCI & RAID 0, 1, 10, and 1 x M.2 (M Key) Socket that supports M.2 Type 2242/ 2260/ 2280 SSD modules and has support for PCIe 3.0 x 4 (32Gb/s) and SATA III (6.0Gb/s) SSDs.The Biostar A520MH motherboard has Realtek RTL8111H LAN and audio codec ALC887, with 7.1 channels, high definition audio, and Hi-Fi on the front. It also has 6 x USB 3.2 (Gen1) ports, 6 x USB 2.0 ports, and 1 x PCIe 3.0 x 16 slot that supports PCIe 3.0 x 16 mode with AMD Ryzen processors (Matisse only) and PCIe 3.0 x 16 mode AMD Ryzen with Radeon Vega Graphics processors (Renoir only).The rear I/O of the motherboard includes 1 x PS/2 Keyboard, 1 x PS/2 Mouse, 1 x HDMI Port, 1 x VGA Port, 1 x LAN port, 4 x USB 3.2 (Gen1) Ports, 2 x USB 2.0 Ports, and 3 x Audio Jack. The internal I/O includes 4 x SATA III (6.0Gb/s) Connectors, 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports), 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports), 1 x 8-Pin Power Connector, 1 x 24-Pin Power Connector, 1 x CPU Fan Connector, 1 x System Fan Connector, 1 x Front Panel Header, 1 x Front Audio Header, 1 x Clear CMOS Header, 1 x Internal Stereo Speaker Header, and 1 x COM Port Header.The motherboard supports CPU/System Temperature Monitoring, CPU/System Fan Monitoring, Smart/Manual CPU Fan Control, and CPU/DDR Voltage Monitoring. The Biostar A520MH motherboard comes with two SATA cables, one I/O shield, one DVD driver, and one quick guide, and has support for Windows 10 (64bit) / 11 (64bit). It also supports 100% solid capacitor, BIO-FLASHER, A.I FAN, and PCIe M.2 32Gb/s. Order now from Techland BD for the best price in bd.
