Asus PRIME H610M-CS D4 DDR4 12th Gen Micro-ATX Intel Motherboard
Product Pricing
EMI Start From*
Asus PRIME H610M-CS D4 DDR4 12th Gen Micro-ATX Intel Motherboard

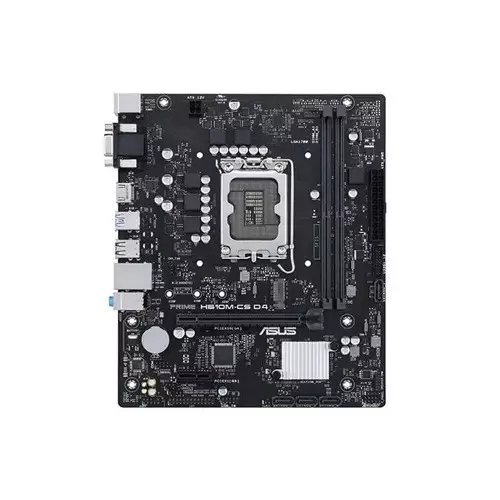

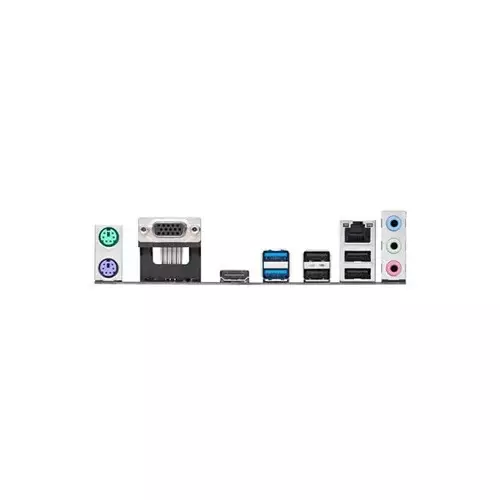

Asus PRIME H610M-CS D4 is a Micro-ATX motherboard that supports 12th generation Intel Core, Pentium Gold, and Celeron processors. It can support up to an Intel 65W CPU. The motherboard comes with the Intel H610 Chipset. The motherboard accepts two DDR4 3200/3000/2933/2800/2666/2400/2133 non-ECC, unbuffered DIMMs with a maximum capacity of 64GB. It also supports the Intel® Extreme Memory Profile (XMP). The actual memory data rate is determined by the CPU type and the DRAM modules. There is one D-Sub and one HDMI port for graphics. The graphics specifications may differ between CPU types. The motherboard has one PCle 4.0 x16 slot for Intel 12th Gen processors and one PCIe 3.0 x1 slot for the Intel H610 Chipset. For storage, it has one M.2 slot and four SATA 6Gb/s ports. The M.2 slot (Key M) of type 2242/2260/2280 supports PCIe 3.0 x4 mode. The motherboard includes 1 x Realtek 1Gb Ethernet for network connectivity. It also has multiple USB ports, including 2x USB 3.2 Gen 1 ports (2x Type-A), 4x USB 2.0 ports (4x Type-A) on the back, and additional USB ports on the front. The motherboard includes a Realtek 7.1 Surround Sound High Definition Audio CODEC that allows for jack detection, multi-streaming, front panel jack retasking, and playback at up to 24-Bit/192 kHz. The back panel I/O ports include two USB 3.2 Gen 1 ports, four USB 2.0 ports, one D-Sub port, one HDMI port, one Realtek 1Gb Ethernet port, three audio jacks, one PS/2 keyboard (purple) port, and one PS/2 mouse (green) port. The motherboard has a UEFI BIOS and supports the Windows 11 x64 and Windows 10 x64 operating systems. It has a micro-ATX form factor. This motherboard is an excellent choice for creating a compact and powerful PC.
