ASUS EX-B650M-V7 AMD AM5 DDR5 MICRO-ATX MOTHERBOARD
ASUS EX-B650M-V7 AMD AM5 DDR5 MICRO-ATX MOTHERBOARD
ASUS EX-B650M-V7 AMD AM5 DDR5 MICRO-ATX MOTHERBOARD - 1
ASUS EX-B650M-V7 AMD AM5 DDR5 MICRO-ATX MOTHERBOARD - 2
ASUS EX-B650M-V7 AMD AM5 DDR5 MICRO-ATX MOTHERBOARD - 3

ASUS EX-B650M-V7 AMD AM5 DDR5 MICRO-ATX MOTHERBOARD

5 Reviews
Stock : In Stock
PID : P0122506562
Brand : Asus
Model : EX-B650M-V7
Warranty : 3 Years
  • Chipset: AMD B650
  • Type: DDR5
  • Memory: 96GB
  • Warranty: 3 Years

Product Pricing

Discount Price

৳16,500 ৳17,500
+ Available Payment Method

EMI Start From*

৳581

SPECIFICATIONS

Processor

Supported CPU AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors

Mainboard

Chipset AMD B650
BIOS 256 Mb Flash ROM, UEFI AMI BIOS

Memory

Memory 2 x DIMM slots, Max. 96GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

Supports AMD Extended Profiles for Overclocking (EXPO)

OptiMem II

Storage

Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports



AMD Ryzen 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)



AMD B650 Chipset

4 x SATA 6Gb/s ports

Graphics

Graphics 1 x HDMI port

Audio & Microphone

Audio Realtek 7.1 Surround Sound High Definition Audio CODEC

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback



Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

Ports

Slots AMD Ryzen 7000 Series Desktop Processors

1 x PCIe 4.0 x16 slot (supports x16 mode)



AMD B650 Chipset

1 x PCIe 4.0 x1 slot
Internal I/O Ports Fan and Cooling related

1 x 4-pin CPU Fan header

3 x 4-pin Chassis Fan headers



Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector



Storage related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports



USB

1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C)

1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports



Miscellaneous

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x Speaker header

1 x 10-1 pin System Panel header

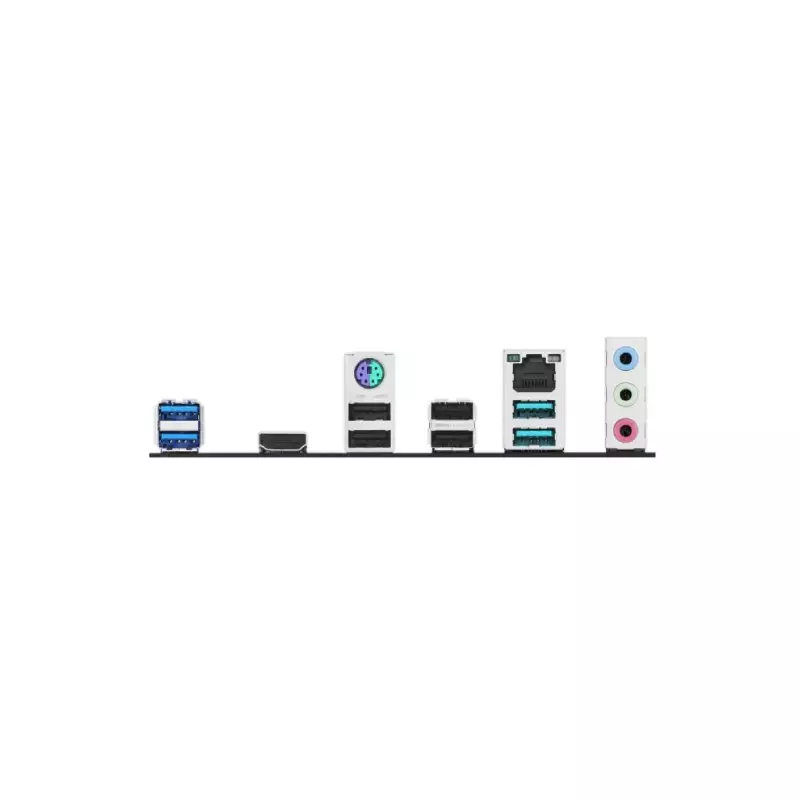

USB Rear USB (Total 8 ports)

2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A)

2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)



Front USB (Total 7 ports)

1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C)

1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Physical Specification

Form Factor micro-ATX Form Factor

9.6 inch x 8.7 inch (24.4 cm x 22.1 cm)

Warranty Information

Warranty 3 Years

DESCRIPTION

ASUS EX-B650M-V7 AMD AM5 DDR5 MICRO-ATX MOTHERBOARD IN BD

The ASUS EX-B650M-V7 AMD AM5 DDR5 Micro-ATX Motherboard, available at TechLand BD, is a high-performance motherboard designed for AMD Ryzen™ 7000 Series Desktop Processors. It features the AMD B650 Chipset and supports up to 96GB of DDR5 memory with speeds up to 8000+(OC) MHz. The motherboard also supports AMD Extended Profiles for Overclocking (EXPO™) and OptiMem II for enhanced memory performance. The motherboard comes with a HDMI™ port that supports 4K@60Hz as specified in HDMI 2.1. It has one PCIe 4.0 x16 slot and one PCIe 4.0 x1 slot for expansion. The motherboard supports 2 x M.2 slots and 4 x SATA 6Gb/s ports for storage. It also features 1 x Realtek 2.5Gb Ethernet for networking and multiple USB ports for connectivity. The motherboard also comes with Realtek 7.1 Surround Sound High Definition Audio CODEC for an immersive audio experience. The motherboard also features ASUS 5X PROTECTION III, which includes DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, and Stainless-Steel Back I/O for enhanced durability and reliability. The ASUS EX-B650M-V7 AMD AM5 DDR5 Micro-ATX Motherboard is available at TechLand BD with a 3-year warranty.

REVIEWS

Login to write a review.

Overall Rating

5 out of 5 stars
5
Total Reviews
5 star
5
4 star
0
3 star
0
2 star
0
1 star
0
সারা খান

এই মাদারবোর্ডটির বিল্ড ভালো। কোনো সমস্যা ছাড়াই সুন্দরভাবে চলছে।

11 July, 2024

Zinia Khan

I've been using this board for a few months now, and it's handled everything I've thrown at it.

21 April, 2024

Ishtiaq

Upgraded to this motherboard and noticed a significant boost in my system's speed and responsiveness. The DDR5 support is incredible.

02 April, 2024

Fateh Sabbir

The build quality is solid, and it's been running smoothly without any issues. Thanks Tech Land.

29 February, 2024

Rahat Islam

গেমিং এর জন্য পারফেক্ট. গেমিং সেশনের সময় কোনো ল্যাগ নেই

19 September, 2023

What is the ASUS EX-B650M-V7 AMD AM5 DDR5 MICRO-ATX MOTHERBOARD Price in Bangladesh 2026 ?

The Asus EX-B650M-V7 Price in BD is 16,500৳ . This ASUS EX-B650M-V7 AMD AM5 DDR5 MICRO-ATX MOTHERBOARD Manufacturing by Asus Comes With 3 Years Warranty & Based on 5 reviews. Tech Land BD Offers you Asus EX-B650M-V7 by 16,500৳ and its regular price is 17,500৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
