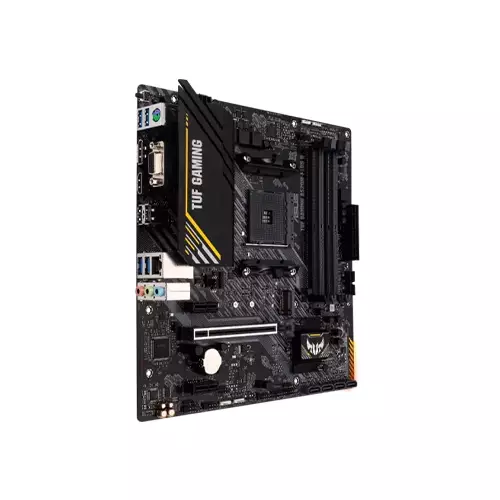

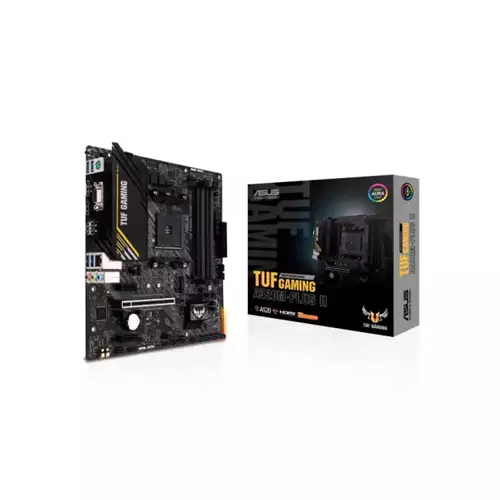

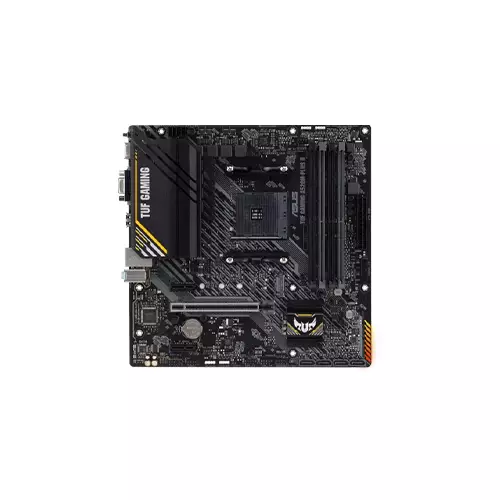

ASUS TUF GAMING A520M-PLUS II AM4 MICRO-ATX AMD MOTHERBOARD
ASUS TUF GAMING A520M-PLUS II AM4 MICRO-ATX AMD MOTHERBOARD
ASUS TUF GAMING A520M-PLUS II AM4 MICRO-ATX AMD MOTHERBOARD - 1
ASUS TUF GAMING A520M-PLUS II AM4 MICRO-ATX AMD MOTHERBOARD - 2
ASUS TUF GAMING A520M-PLUS II AM4 MICRO-ATX AMD MOTHERBOARD - 3

ASUS TUF GAMING A520M-PLUS II AM4 MICRO-ATX AMD MOTHERBOARD

0 Reviews
Stock : In Stock
PID : P0122506381
Brand : Asus
Model : TUF GAMING A520M-PLUS II
Warranty : 3 years
  • Chipset A520
  • Form Factor microATX
  • Memory Type DDR4
  • Slots 4 x DIMM

Product Pricing

Night Offer Price 00:00:00

৳12,100 ৳14,000
+ Available Payment Method

EMI Start From*

৳426

SPECIFICATIONS

Processor

Supported CPU AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

Mainboard

Chipset A520

Memory

Memory 4 x DIMM, Max. 128GB, DDR4
4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4266(OC)
/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory

Storage

Supported Storage AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors


M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)


AMD A520 Chipset


4 x SATA 6Gb/s ports


Support RAID 0, 1, 10

Graphics

Graphics 1 x DisplayPort 1.2


1 x HDMITM 2.1(4K@60Hz)


1 x D-Sub

Networking & Connectivity

LAN 1 x Realtek 1Gb Ethernet

TUF LANGuard

Audio & Microphone

Audio Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback"

Audio Features

- Audio Shielding

- Premium Japanese audio capacitors

- Dedicated audio PCB layers

*A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Ports

Slots AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors


1 x PCIe 3.0 x16 slot (supports x16 mode)


AMD A520 Chipset

2 x PCIe 3.0 x1 slots
Internal I/O Ports Fan and cooling related


1 x 4-pin CPU Fan header


2 x 4-pin Chassis Fan headers


Power related


1 x 24-pin Main Power connector


1 x 8-pin +12V Power connector


Storage related


1 x M.2 slot (Key M)


4 x SATA 6Gb/s ports


USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports


2 x USB 2.0 headers support additional 4 USB 2.0 ports


Miscellaneous


2 x AURA Addressable Gen 2 header


2 x AURA RGB headers


1 x Clear CMOS header

1 x COM Port header


1 x Front Panel Audio header (AAFP)


1 x S/PDIF Out header

1 x Speaker header


1 x SPI TPM header (14-1pin)


1 x 10-1 pin System Panel header

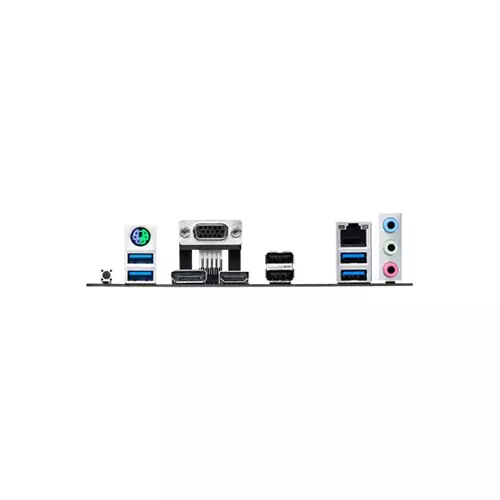

External I/O Ports 4 x USB 3.2 Gen 1 ports (4 x Type-A)


2 x USB 2.0 ports (2 x Type-A)


1 x BIOS FlashBack™ button


1 x DisplayPort


1 x HDMI port


1 x D-Sub


1 x Realtek 1Gb Ethernet port


3 x Audio jacks


1 x PS/2 Keyboard/Mouse combo port
USB 4 x USB 3.2 Gen 1 ports (4 x Type-A)


2 x USB 2.0 ports (2 x Type-A)



Front USB:Total 6 ports

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports


2 x USB 2.0 headers support additional 3 USB 2.0 ports

Physical Specification

Form Factor microATX
Dimension 24.4cm x 24.4cm

Warranty Information

Warranty 3 years

DESCRIPTION

ASUS TUF GAMING A520M-PLUS II Motherboard in Bangladesh

TUF Gaming A520M-Plus II distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.

When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the ASUS TUF GAMING A520M-PLUS II AM4 MICRO-ATX AMD MOTHERBOARD Price in Bangladesh 2026 ?

The Asus TUF GAMING A520M-PLUS II Price in BD is 12,900৳ . This ASUS TUF GAMING A520M-PLUS II AM4 MICRO-ATX AMD MOTHERBOARD Manufacturing by Asus Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus TUF GAMING A520M-PLUS II by 12,900৳ and its regular price is 14,000৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
