Zebex Z-3100 Barcode Scanner

Zebex Z-3100 Barcode Scanner

♦ Light Source-  617 nm visible red LED

♦ Optical System-  Linear CCD array

♦ Microprocessor-  32 bit

♦ Depth of Field-  0 – 300 mm (UPC/EAN 100%, PCS=90%)

♦ Scan Angle-  42°

♦ Scan Rate-  330 scans per second

♦ Minimum Bar Width-  0.1 mm (4 mil) (0.07 mm actually) (Code 39, PCS=90%); more than 100 mm on 0.125 mm barcode

♦ Print Contrast-  Min. 30% @ UPC/EAN 100%

♦ Indicators (LED)-  Blue LED

♦ Beeper Operation-  Programmable tone & beep time

♦ System Interfaces-  Keyboard, RS-232, HID USB, USB Virtual COM, wand

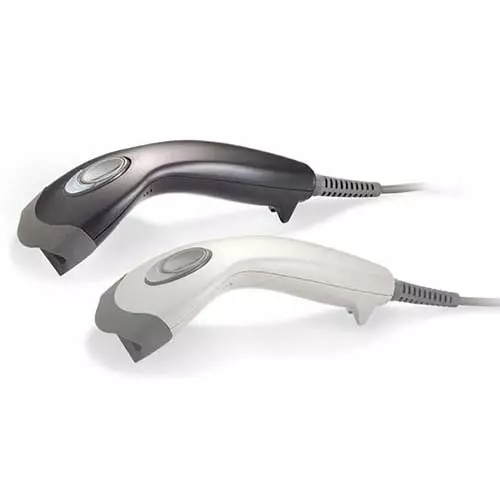

Advanced Middle-Range Handheld CCD Scanner

Z-3100 is the upgraded version of ZEBEX middle-range handheld CCD scanner with faster scan rate, longer scanning depth and better decoding ability. At a superior rate of 330 scans per second, ZEBEX proprietary Ultrascan hardware decoding technology empowers Z-3100 to decode the majority of 1D barcodes as well as GS1 DataBar. It has working range up to 300 mm and is able to decode a barcode wider than 102 mm.

• Proprietary Ultrascan decoding technology

• Streamline design and Large trigger for effortless operation

• 32 bit micro processor unit

• Analog image capture technology

• Support presentation scan mode

• 0 – 100,000 Lux light immunity
