TP-LINK TL-SX3016F SPECIFICATION |
Interface
| - 16× 10GE SFP+ Slots
- 1× RJ45 Console Port
- 1× Micro-USB Console Port
|
Fan Quantity
| 1
|
Power Supply
| 100-240 V AC~50/60 Hz
|
Dimensions ( W x D x H )
| 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
|
Mounting
| Rack Mountable
|
Max Power Consumption
| 32.74 W (220 V / 50 Hz)
|
Max Heat Dissipation
| 111.71 BTU/hr (220 V / 50 Hz)
|
Switching Capacity
| 320 Gbps
|
Packet Forwarding Rate
| 238.08 Mpps
|
MAC Address Table
| 32 K
|
Jumbo Frame
| 9 KB
|
Packet Buffer Memory
| 24 Mbit
|
Quality of Service
| - • 8 priority queues
- • 802.1p CoS/DSCP priority
- • Queue scheduling
- - SP (Strict Priority)
- - WRR (Weighted Round Robin)
- - SP+WRR
- • Bandwidth Control
- - Port/Flow-based Rating Limiting
- • Smoother Performance
- • Action for Flows
- - Mirror (to supported interface)
- - Redirect (to the supported interface)
- - Rate Limit
- - QoS Remark
|
L2 and L2+ Features
| - • Link Aggregation
- - static link aggregation
- - 802.3ad LACP
- - Up to 8 aggregation groups, containing 8 ports per group
- • Spanning Tree Protocol
- - 802.1d STP
- - 802.1w RSTP
- - 802.1s MSTP
- - STP Security: TC Protect, BPDU Filter, Root Protect
- • Loopback Detection
- - Port-based
- - VLAN based
- • Flow Control
- - 802.3x Flow Control
- - HOL Blocking Prevention
- • Mirroring
- - Port Mirroring
- - CPU Mirroring
- - One-to-One
- - Many-to-One
- - Tx/Rx/Both
|
L2 Multicast
| - • IGMP Snooping
- - IGMP v1/v2/v3 Snooping
- - Fast Leave
- - IGMP Snooping Querier
- - IGMP Authentication
- • IGMP Authentication
- • MLD Snooping
- - MLD v1/v2 Snooping
- - Fast Leave
- - MLD Snooping Querier
- - Static Group Config
- - Limited IP Multicast
- • MVR
- • Multicast Filtering: 256 profiles and 16 entries per profile
|
VLAN
| - • VLAN Group
- - Max 4K VLAN Groups
- • 802.1Q Tagged VLAN
- • MAC VLAN: 30 Entries
- • Protocol VLAN: Protocol Template 16, Protocol VLAN 16
- • Private VLAN
- • GVRP
- • VLAN VPN (QinQ)
- - Port-Based QinQ
- - Selective QinQ
- • Voice VLAN
|
Access Control List
| - • Time-based ACL
- • MAC ACL
- - Source MAC
- - Destination MAC
- - VLAN ID
- - User Priority
- - Ether Type
- • IP ACL
- -Source IP
- - Destination IP
- - Fragment
- - IP Protocol
- - TCP Flag
- - TCP/UDP Port
- - DSCP/IP TOS
- - User Priority
- • Combined ACL
- • Packet Content ACL
- • IPv6 ACL
- • Policy
- - Mirroring
- - Redirect
- - Rate Limit
- - QoS Remark
- • ACL applies to Port/VLAN
|
Security
| - • IP-MAC-Port Binding
- - 512 Entries
- - DHCP Snooping
- - ARP Inspection
- - IPv4 Source Guard: 100 Entries
- • IPv6-MAC-Port Binding
- - 512 Entries
- - DHCPv6 Snooping
- - ND Detection
- - IPv6 Source Guard: 100 Entries
- • DoS Defend
- • Static/Dynamic Port Security
- - Up to 64 MAC addresses per port
- • Broadcast/Multicast/Unicast Storm Control
- - kbps/ratio control mode
- • 802.1X
- - Port base authentication
- - Mac-based authentication
- - VLAN Assignment
- - MAB
- - Guest VLAN
- - Support Radius authentication and accountability
- • AAA (including TACACS+)
- • Port Isolation
- • Secure web management through HTTPS with SSLv3/TLS 1.2
- • Secure Command Line Interface (CLI) management with SSHv1/SSHv2
- • IP/Port/MAC-based access control
|
IPv6
| - • IPv6 Dual IPv4/IPv6
- • Multicast Listener Discovery (MLD) Snooping
- • IPv6 ACL
- • IPv6 Interface
- • Static IPv6 Routing
- • IPv6 neighbor discovery (ND)
- • Path maximum transmission unit (MTU) discovery
- • Internet Control Message Protocol (ICMP) version 6
- • TCPv6/UDPv6
- • IPv6 applications
- - DHCPv6 Client
- - Ping6
- - Tracert6
- - Telnet (v6)
- - IPv6 SNMP
- - IPv6 SSH
- - IPv6 SSL
- - Http/Https
- - IPv6 TFTP
|
L3 Features
| - • 16 IPv4/IPv6 Interfaces
- • Static Routing
- - 48 static routes
- • Static ARP
- - 128 Static Entries
- • Proxy ARP
- • Gratuitous ARP
- • DHCP Server
- • DHCP Relay
- - DHCP Interface Relay
- - DHCP VLAN Relay
- • DHCP L2 Relay
|
Management
| - • Web-based GUI
- • Command Line Interface (CLI) through the console port, telnet
- • SNMP v1/v2c/v3
- - Trap/Inform
- - RMON (1,2,3,9 groups)
- • SDM Template
- • DHCP/BOOTP Client
- • 802.1ab LLDP/LLDP-MED
- • DHCP AutoInstall
- • Dual Image, Dual Configuration
- • CPU Monitoring
- • Cable Diagnostics
- • EEE
- • Password Recovery
- • SNTP
- • System Log
|
Advanced Features
| - • Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller
- • Automatic Device Discovery
- • Batch Configuration
- • Batch Firmware Upgrading
- • Intelligent Network Monitoring
- • Abnormal Event Warnings
- • Unified Configuration
- • Reboot Schedule
- • ZTP (Zero-Touch Provisioning)*
|

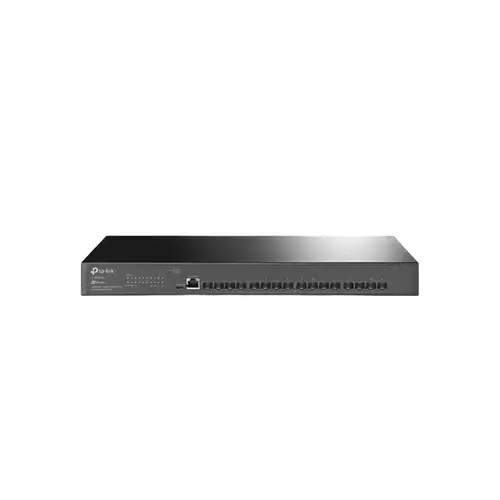

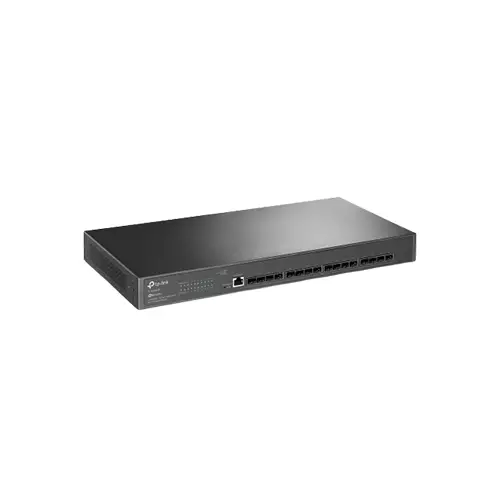

TP-LINK TL-SX3016F JETSTREAM 16-PORT 10GE SFP+ L2+ MANAGED SWITCH IN BANGLADESH
FEATURES
- 16× Full 10GE SFP+ Slots: Lightning-fast full 10 Gbps SFP+ slots provide high-bandwidth aggregation connectivity and non-blocking 320 Gbps switching capacity.
- Abundant L2 and L2+ Features: Supports a complete lineup of L2 and L2+ features including Static Routing, enterprise-level QoS, IGMP Snooping, and more.
- Robust Security Strategies: Helps protect LAN area investment with integrated IP-MAC-Port Binding, ACL, Port Security, 802.1X Authentication, and more.
- Dual Redundant Power Supplies: Two power supplies backing each other up make it an ideal choice for reliable networking architecture.
- Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
Full Fiber Switch with Lightning-Fast 10G
Build and expand your lightning-fast network with TP-Link TL-SX3016F—a fully managed switch with full 16-port 10G fiber ports and 320 Gbps switching capacity. Ideal for small, medium, and large business networks, it meets and surpasses the need for high-speed, reliable, and safe enterprise networks.
Seamless Integration to Omada Cloud SDN
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

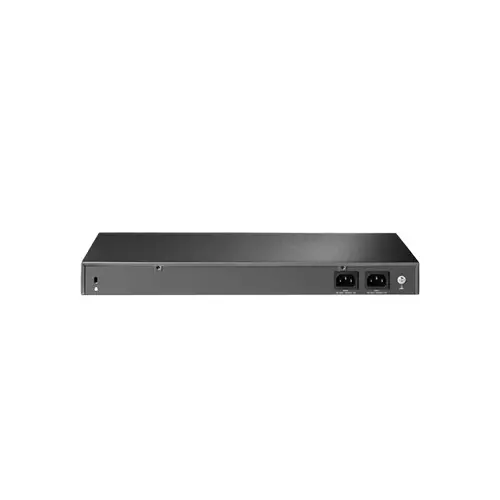

Dual Redundant Power Supplies
Two power supplies backing each other up make it an ideal choice for reliable networking architecture.
Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses, and ISPs.
Secure Networking
Our high-quality security features defend against a range of network threats. They include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. The Access Control Lists (ACL, L2 to L4) restrict access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. User access to the network can be controlled through 802.1X authentication to grant access according to the valid user credentials.
Enterprise Level Features
A complete lineup of L2+ features is supported. 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control are among the innovative features. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to appropriate subscribers and reducing unnecessary traffic, while IGMP throttling & filtering restrict subscribers at the port level to prevent unauthorized multicast access. Static Routing segments the network to route traffic efficiently.
Advanced Quality of Service (QoS)
Voice and video traffic and be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS, voice and video services remain smooth, even in situations of low bandwidth.
ISP Features
Internet Service Providers (ISPs) get the support they need with features including sFlow, QinQ, L2PT, PPPoE ID Insertion, and IGMP authentication. 802.3ah OAM and Device Link Detection Protocol (DLDP) provide straightforward monitoring and troubleshooting of Ethernet links across the entire network.
IPv6 Support
An enormous variety of IPv6 functions guarantees your network will be ready for the Next Generation Network (NGN) without the need to upgrade your hardware. Take advantage of features such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover to enhance your network environment.
