Standards and Protocols
| IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
|

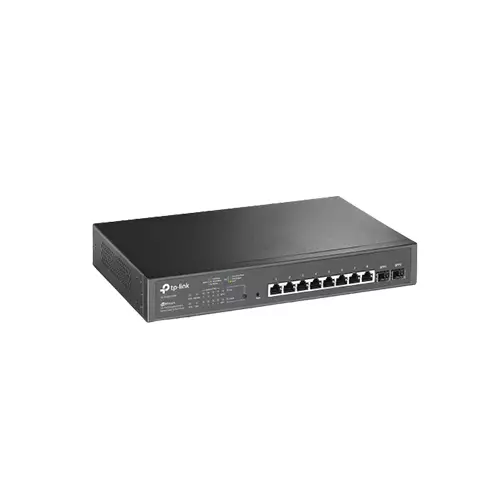

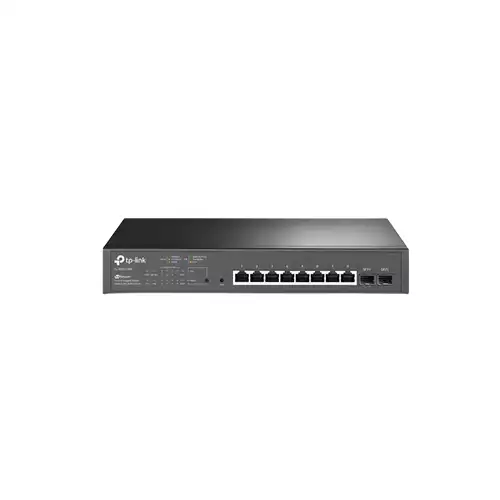

Interface
| - • 8× 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX)
- • 2× 100/1000 Mbps SFP Slots
|
Network Media
| - • 10BASE-T: UTP/STP category 3, 4, 5 cable (maximum 100m)
- • 100BASE-TX/1000Base-T: UTP/STP category 5, 5e or above cable (maximum 100m)
- • 100BASE-FX: MMF, SMF
- • 1000BASE-X: MMF, SMF
|
Fan Quantity
| 1
|
Physical Security Lock
| Yes |

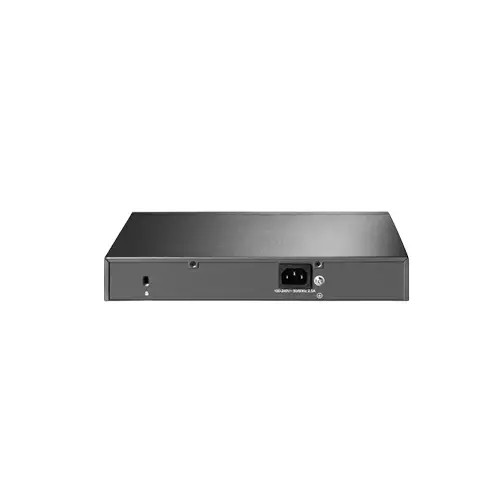

Power Supply
| 100-240V AC, 50/60Hz
|
PoE+ Ports(RJ45)
| - • Standard: 802.3at/af compliant
- • PoE+ Ports: 8 Ports
- • Power Supply: 150 W
|
PoE Ports (RJ45)
| - • Standard: 802.3at/af compliant
- • PoE+ Ports: 8 Ports
- • PoE Power Budget: 150 W*
|
Dimensions ( W x D x H )
| 11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm) |
Mounting
| - Desktop
- 13" or 19" 1U rack-mountable
|
Max Power Consumption
| - • 12.2 W (110 V / 60 Hz with no PD connected)
- • 173.9 W (110 V / 60 Hz with 150 W PD connected)
|
Max Heat Dissipation
| - • 41.6 BTU/h (with no PD connected)
- • 539.4 BTU/h (with 150 W PD connected)
|
Switching Capacity
| 20 Gbps
|
Packet Forwarding Rate
| 14.9 Mpps
|
MAC Address Table
| 8 K
|
Jumbo Frame
| 9 KB |
Packet Buffer Memory
| 4.1 Mbit
|
Quality of Service
| - • 802.1p CoS/DSCP priority
- • 8 priority queues
- • Priority Schedule Mode
- - SP (Strict Priority)
- - WRR (Weighted Round Robin)
- • Queue Weight Config
- • Bandwidth Control
- - Port/Flow-based Rating Limit
- • Smoother Performance
- • Storm Control
- - Multiple Control Modes(kbps/ratio)
- - Broadcast/Multicast/Unknown-Unicast Control
|
L2 and L2+ Features
| - • DHCP Relay
- - DHCP VLAN Relay
- • DHCP L2 Relay
- • Link Aggregation
- - Static link aggregation
- - 802.3ad LACP
- - Up to 8 aggregation groups and up to 8 ports
- per group
- • Spanning Tree Protocol
- - 802.1D STP
- - 802.1w RSTP
- - 802.1s MSTP
- - STP Security: TC Protect, BPDU Filter/Protect,
- Root Protect
- • Loopback Detection
- • Flow Control
- - 802.3x Flow Control
- • Mirroring
- - Port Mirroring
- - CPU Mirroring
- - One-to-One
- - Many-to-One
- - Flow-Based
- - Ingress/Egress/Both
- • Device Link Detect Protocol (DLDP)
- • 802.1ab LLDP/ LLDP-MED
|
L2 Multicast
| - • IPv4, IPv6 shared multicast groups (511 groups max.)
- • IGMP Snooping
- - IGMP v1/v2/v3 Snooping
- - Fast Leave
- - IGMP Snooping Querier
- - Static Group Config
- • Multicast VLAN Registration (MVR)
- • Multicast Filtering
- • MLD Snooping
- - MLD v1/v2 Snooping
- - Fast Leave
- - MLD Snooping Querier
- - Static Group Config
- • Limited IP Multicast (256 profiles and 16 entries per profile)
|
IPv6 Support
| - • IPv6 Dual IPv4/IPv6
- • Multicast Listener Discovery (MLD) Snooping
- • IPv6 neighbor discovery (ND)
- • Path maximum transmission unit (MTU) discovery
- • Internet Control Message Protocol (ICMP)
- version 6
- • TCPv6/UDPv6
- • IPv6 applications
- - DHCPv6 Client
- - Ping6
- - Tracert6
- - Telnet (v6)
- - IPv6 SNMP
- - IPv6 SSH
- - IPv6 SSL
- - Http/Https
- - IPv6 TFTP
|
VLAN
| - • VLAN Group
- - Max. 4K VLAN Groups
- • 802.1Q tag VLAN
- • MAC VLAN
- • Protocol VLAN
- • GVRP
- • Voice VLAN
|
Access Control List
| - • Support up to 230 entries
- • Time-Range
- - Time Slice
- - Week Time-Range
- - Absolute Time-Range
- - Holiday
- • Time-based ACL
- • MAC ACL
- - Source MAC
- - Destination MAC
- - VLAN ID
- - User Priority
- - Ether Type
- • IP ACL
- - Source IP
- - Destination IP
- - IP Protocol
- - TCP Flag
- - TCP/UDP Source Port
- - TCP/UDP Destination Port
- - DSCP/IP TOS
- • IPv6 ACL
- • Combined ACL
- • Rule Operation
- - Permit/Deny
- • Policy Action
- - Mirror
- - Rate Limit
- - Redirect
- - QoS Remark
- • ACL Rules Binding
- - Port Binding
- - VLAN Binding
- • Actions for flows
- - Mirror (to supported interface)
- - Redirect (to the supported interface)
- - Rate Limit
- - QoS Remark
|
Security
| - • AAA
- • 802.1X
- - Port-based authentication
- - MAC (Host) based authentication
- - Authentication Method includes PAP/EAP-MD5
- - MAB
- - Guest VLAN
- - Support Radius authentication and
- accountability
- • IP/IPv6-MAC Binding
- - 512 Binding Entries
- - DHCP Snooping
- - DHCPv6 Snooping
- - ARP Inspection
- - ND Detection
- • IP Source Guard
- - 253 Entries
- - Source IP+Source MAC
- • IPv6 Source Guard
- - 183 Entries
- - Source IPv6 Address+Source MAC
- • DoS Defend
- • Static/Dynamic/Permanent Port Security
- - Up to 64 MAC addresses per port
- • Broadcast/Multicast/Unicast Storm Control
- - kbps/ratio control mode
- • Port Isolation
- • Secure web management through HTTPS with
- SSLv3/TLS 1.2
- • Secure Command Line Interface (CLI)
- management with SSHv1/SSHv2
- • IP/Port/MAC based access control
|
IPv6
| - • IPv6 Static Routing and ACL
- • IPv6 Dual IPv4/IPv6
- • IPv6 Interface
- • Multicast Listener Discovery (MLD) Snooping
- • IPv6 neighbor discovery (ND)
- • Path maximum transmission unit (MTU) discovery
- • Internet Control Message Protocol (ICMP)
- version 6
- • TCPv6/UDPv6
- • IPv6 applications
- - DHCPv6 Client
- - Ping6
- - Tracert6
- - Telnet(v6)
- - IPv6 SNMP
- - IPv6 SSH
- - IPv6 SSL
- - Http/Https
- - IPv6 TFTP
|
MIBs
| - • MIB II (RFC1213)
- • Bridge MIB (RFC1493)
- • P/Q-Bridge MIB (RFC2674)
- • Radius Accounting Client MIB (RFC2620)
- • Radius Authentication Client MIB (RFC2618)
- • Remote Ping, Traceroute MIB (RFC2925)
- • Support TP-Link private MIBs
- • RMON MIB(RFC1757, rmon 1,2,3,9)
|
Advanced Features
| - • Automatic Device Discovery
- • Batch Configuration
- • Batch Firmware Upgrading
- • Intelligent Network Monitoring
- • Abnormal Event Warnings
- • Unified Configuration
- • Reboot Schedule
|
