TP-LINK TL-SL2428P V4 JETSTREAM 24-PORT 10/100MBPS + 4-PORT GIGABIT SMART SWITCH WITH 24-PORT POE+ SURVEILLANCE SWITCH
EMI Start From*
TP-LINK TL-SL2428P V4 SPECIFICATION |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| Interface |
|
| Network Media |
|
| Fan Quantity | 2 |
| Physical Security Lock | Yes |
| Power Supply | 100-240V AC, 50/60Hz |
| PoE Budget | 250 W |
| Dimensions ( W x D x H ) | 17.3 x 7.1 x 1.7 in.(440 x 180 x 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption |
|
| Max Heat Dissipation |
|
| Switching Capacity | 12.8 Gbps |
| Packet Forwarding Rate | 9.5 Mpps |
| MAC Address Table | 8 K |
| Jumbo Frame | 9216 Bytes |
| Quality of Service |
|
| L2 Features |
|
| L2 Multicast |
|
| IPv6 Support |
|
| VLAN |
|
| Access Control List |
|
| Security |
|
| Management |
|
| MIBs |
|
TP-LINK TL-SL2428P V4 JETSTREAM 24-PORT 10/100MBPS + 4-PORT GIGABIT SMART SWITCH WITH 24-PORT POE+ SURVEILLANCE SWITCH IN BANGLADESH
FEATURES
- Features 24 PoE ports, with a total PoE power budget of 250 W* and useful PoE power management features
- Integrated security strategy including 802.1Q VLAN, Port Security, and Storm control help protect LAN area investment
- L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
- WEB/CLI managed modes, SNMP, and RMON bring abundant management features
- Dual Firmware Image improves the reliability and uptime of your network
What This Product Does

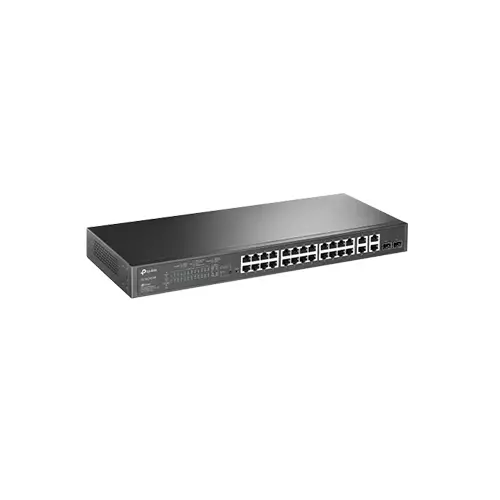

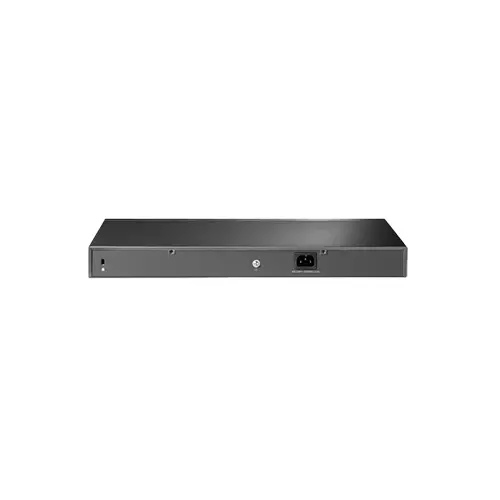

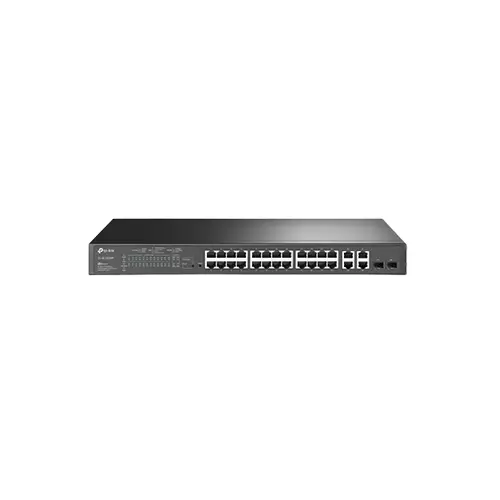

TP-Link smart switch TL-SL2428P is equipped with 24 10/100Mbps RJ45 ports, 4 10/100/1000Mbps RJ45 ports, and 2 combo Gigabit SFP slots. All 24 10/100Mbps RJ45 ports support the 802.3at/af (PoE+) standard with a total PoE power budget of 250 W* and useful PoE power management features. The switch provides high performance, enterprise-level QoS, helpful security strategies, and rich layer 2 management features. TP-Link smart switch TL-SL2428P is a cost-effective product solution for small and medium businesses. TL-SL2428P has useful security features. The Storm Control feature protects against Broadcast, Multicast, and Unknown unicast Storm. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Furthermore, the easy-to-use web management interfaces, SNMP and RMON, mean faster setup and configuration with less downtime. For workgroups and departments requiring cost-sensitive layer 2 switch and gigabit capability, TP-Link smart switch TL-SL2428P provides you with the ideal access-edge solution.
IEEE 802.3at/af-compliant Power over Ethernet
The TL-SL2428P supports 24 ports of IEEE 802.3af/at-compliant PoE and has a total power supply of 250 W* to power any 802.3af/at-compliant power device. It’s an efficient and cost-effective choice to work with wireless access points, surveillance cameras, IP phones, and other PoE-supported devices while getting rid of cables or power lines running around. Compact and flexible, the TL-SL2428P is ideal for flexibly use PoE to deploy wireless access points or IP-based network surveillance cameras for projects or small business networks.
Advanced QoS features
To integrate voice, data, and video services on one network, the switch applies rich QoS policies. Administrators can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority, and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter-free. In conjunction with the Voice VLAN the switch supports, the voice applications will operate with much smoother performance.
Abundant Layer 2 features
For more applications of layer 2 switches, TL-SL2428P supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Group, and 802.3x Flow Control function. Any more, the switches provide advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics, and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access.
Enterprise Level Management Features
TL-SL2428P is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface (GUI) or industry-standard Command Line Interface (CLI). SNMP (v1/2/3) and RMON support enable the switch to be polled for valuable status information and send traps on abnormal events.
