TP-LINK TL-SG3210 V1 SPECIFICATION |
Standards and Protocols
| - IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE802.3z,IEEE 802.3ad,
- IEEE 802.3x,IEEE 802.1d,IEEE 802.1s,IEEE 802.1w,IEEE 802.1q,
- IEEE 802.1x,IEEE 802.1p
|
Interface
| - 8 10/100/1000Mbps RJ45 Ports
- (Auto Negotiation/Auto MDI/MDIX)
- 2 1000Mbps SFP Slots
- 1 Console Port
|
Network Media
| - 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- 100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- 1000BASE-X: MMF, SMF
|
Fan Quantity
| Fanless
|
Power Supply
| 100-240 V AC~50/60 Hz
|
Dimensions ( W x D x H )
| 11.6*7.9*1.7in. (294*200*44 mm)
|
| Power Consumption | Maximum: 10.7W (220V/50Hz)
|
Switching Capacity
| 20Gbps
|
Packet Forwarding Rate
| 14.9Mpps
|
MAC Address Table
| 8K
|
Packet Buffer Memory
| 4Mb
|
Quality of Service
| - Support 802.1p CoS/DSCP priority
- Support 4 priority queues
- Queue scheduling: SP, WRR, SP+WRR
- Port/Flow-based Rate Limiting
- Voice VLAN
|
L2 Features
| - IGMP Snooping V1/V2/V3
- 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
- Spanning Tree STP/RSTP/MSTP
- Port isolation
- BPDU filtering/guard
- TC/Root protect
- Loopback detection
- 802.3x Flow Control
|
VLAN
| - Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
- Port/ MAC/Protocol-based VLAN
- GARP/GVRP
- Management VLAN configuration
|
Access Control List
| - L2～L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol, and VLAN ID;
- Time Range Based
|
Security
| - IP-MAC-Port-VID Binding
- IEEE 802.1X Port/MAC Based authentication, Radius, Guest VLAN
- DoS Defence
- Dynamic ARP inspection (DAI)
- SSH v1/v2
- SSL v2/v3/TLSv1
- Port Security
- Broadcast/Multicast/Unknown-unicast Storm Control
|
IPv6
| - Dual IPv4/IPv6 stack
- Multicast Listener Discovery (MLD) Snooping
- IPv6 neighbor discovery (ND)
- Path maximum transmission unit (MTU) discovery
- Internet Control Message Protocol (ICMP) version 6
- TCPv6/UDPv6
|
| IPv6 Applications | - DHCPv6 Client
- Ping6
- Tracert6
- Telnet(v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP
|
Management
| - Web-based GUI and CLI management
- SNMP v1/v2c/v3, compatible with public MIBs and TP-LINK private MIBs
- RMON (1, 2, 3, 9 groups)
- DHCP/BOOTP Client,DHCP Snooping,DHCP Option82
- CPU Monitoring
- Port Mirroring
- Time Setting: SNTP
- Integrated NDP/NTDP feature
- Firmware Upgrade: TFTP & Web
- System Diagnose: VCT
- SYSLOG & Public MIBS
|
TP-LINK TL-SG3210 V1 JETSTREAM 8-PORT GIGABIT L2 MANAGED SWITCH WITH 2 SFP SLOTS SWITCH IN BANGLADESH
FEATURES
- IP-MAC-Port-VID Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X Authentication and Radi,us provide you robust sewith curity strategies
- L2/L3/L4 QoS and IGMP snooping optimize voice and video application
- WEB/CLI managed modes, SNMP, RMON brinand g abundant management features
Overview

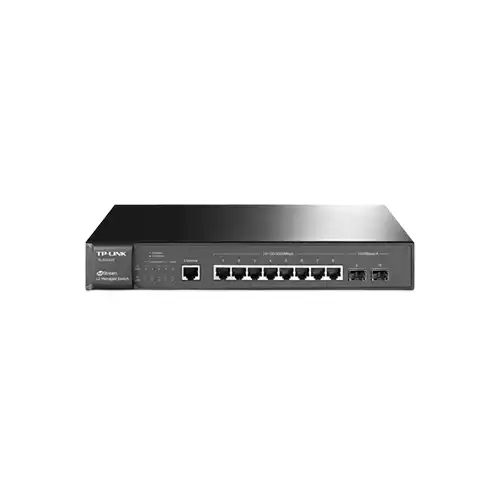

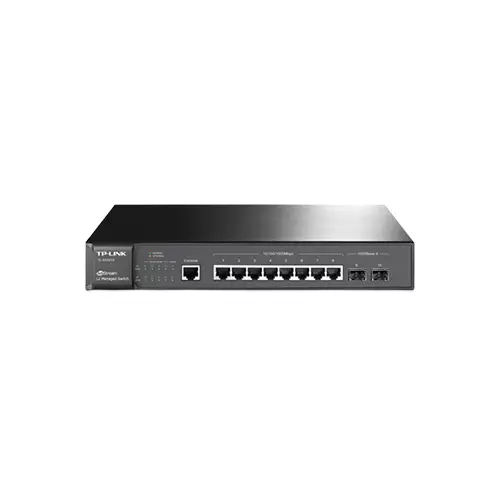

TP-LINK JetStream gigabit L2 managed switch TL-SG3210 provides 8 10/100/1000Mbps ports. The switch provides high performance, enterprise-level QoS, advanced security strategies, and rich layer 2 management features. Moreover, the switch also comes equipped with 2 gigabit SFP slots, expanding your network flexibly. TL-SG3210 is the cost-effective network solution for the ideal small and medium business. TL-SG3210 has robust security and management features. The IP-MAC-Port-VID Binding and Access Control List（ACL) functions protect against broadcast storms, ARP and Denial-of-Service(DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Anymore, the easy-to-use web management interfaces, along with CLI, SNMP, and RMON, mean faster setup and configuration with less downtime. For workgroups and departments requiring cost-sensitive Layer 2 Switch and gigabit capability, TP-LINK JetStream L2 managed Switch TL-SG3210 provides you the idealwith access-edge solution.
Advanced QoS features
To integrate voice, data, and video services on one network, the switch applies rich QoS policies. Administrators can designate the priority of the traffic based on a variety of means including IP or MAC address, TCP or UDP port number, etc, to ensure that voice and video are always clear, smooth, and jitter-free. In conjunction with the Voice VLAN the switch supporting, the voice applications will operate with much smoother performance.
Secure Networking
TP-LINK this TL-SG3210 provides IP-MAC-Port-VID Binding, Port Security, Storm control, and DHCP Snooping which protect against broadcast storms, ARP attacks, etc. It integrates some typical DoS attacks to select. You can protect against these attacks more easily ever than before. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, and even VLAN ID. Moreover, the switch supports 802.1X authentication, which is used in conjunction with a RADIUS server to require some authentication information before access to the network is allowed. Guest VLAN function supports enabling the non-802.1X clients to access the specific network resource.
Abundant Layer 2 features
For more applications of layer 2 switches, TL-SG3210 supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control function. Any more, the switch provides advanced features for network maintenance. Such as Loop Back Detection, Cable Diagnostics, and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access.
Enterprise Level Management Features
TL-SG3210 is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface(GUI) or industry-standard Command Line Interface(CLI), and administration traffic can be protected through SSL or SSH encryptions. SNMP (v1/2/3) and RMON support enable the switch to be polled for valuable status information and send traps on abnormal events. In addition, with integrated NDP/NTDP protocol, the switch supports to be managed by the commander switch through the IP clustering function more easily.
