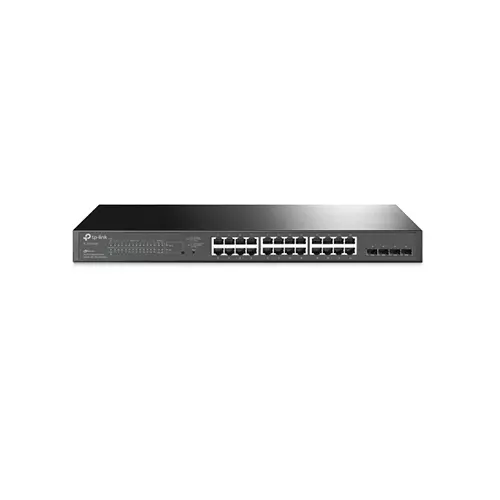

TP-LINK TL-SG2428P Gigabit Smart Switch Overview
Standards and Protocols
| IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad,IEEE 802.3x, IEEE 802.3az IEEE 802.1d, IEEE 802.1s, IEEE 802.1w,IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
|
Interface
| 24× 10/100/1000 Mbps RJ45 Ports 4× Gigabit SFP Slots
|
Network Media
| • 10BASE-T: UTP category 3, 4, 5 cable • 100BASE-TX/1000Base-T: UTP Category 5, 5e, or above cable • 4× Gigabit SFP Slots
|
Fan Quantity
| 2
|
PoE+ Ports(RJ45)
| • Standard: 802.3at/af compliant • PoE+ Ports: 24 Ports Power Supply: 250 W
|
Dimensions ( W x D x H )
| 17.3 × 8.7 × 1.73 in
|
Mounting
| Rack-Mountable
|
Power Consumption
| • 32.1 W • 308.6 W
|
Max Heat Dissipation
| • 1052.94 BTU
|
Bandwidth
| 56 Gbps
|
Packet Forwarding Rate
| 41.7 Mpps
|
MAC Address Table
| 8K
|
Packet Buffer Memory
| 4.1 Mbit
|
Jumbo Frame
| 9KB
|
Quality of Service
| • Support 802.1p CoS/DSCP priority • Support 8 priority queues • Queue scheduling: SP, WRR, SP+WRR • Port/Flow-based Rate Limiting • IPv6 QoS
|
L2 and L2+ Features
| • Static Routing • DHCP Relay • DHCP Server • IGMP Snooping V1/V2/V3 • 802.3ad LACP • Spanning Tree STP/RSTP/MSTP • BPDU Filtering/Guard • TC/Root Protect
|
VLAN
| • Supports up to 4K VLANs simultaneously • MAC/Protocol-based VLAN
|
Access Control List | • L2–L4 package filtering • MAC ACL • Combined ACL
|
Security
| • AAA • Port Security • DHCP Snooping
|
Omada App
| Yes
|
Centralized Management
| • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Hardware Controller • Omada Software Controller
|
Cloud Access
| Yes
|
Environment
| • Operating Temperature: 0–50 ℃ • Storage Temperature: -40–70 ℃ • Operating Humidity: 10–90% • Storage Humidity: 5–90%
|
Warranty | 1 Year |
TP-LINK TL-SG2428P Gigabit Smart Switch in Bangladesh
250 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 250 W*.
Full Gigabit Ports: 24× gigabit PoE+ ports and 4× gigabit SFP Slots provide high-speed connections.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Static Routing: Helps route internal traffic for more efficient use of network resources.
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery.
