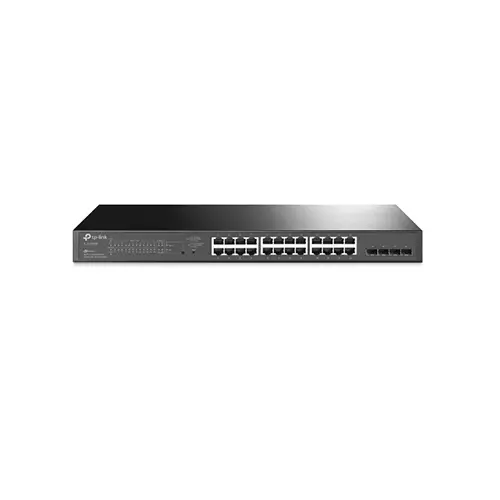

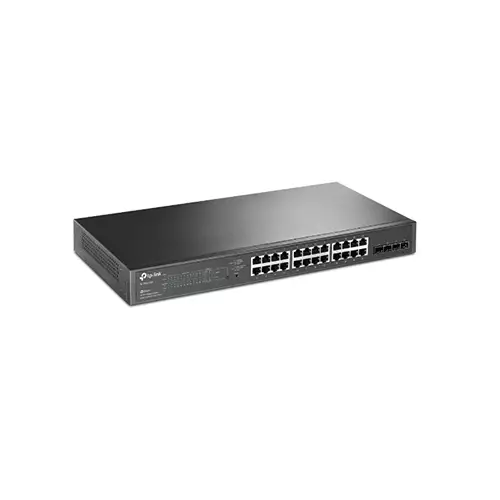

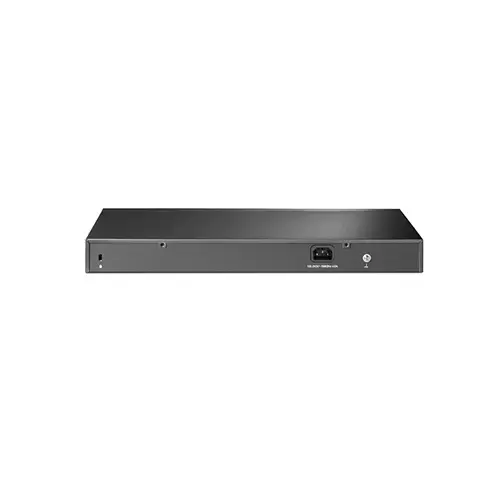

TP-Link T1500-28PCT Smart Switch Overview
Standards and Protocols
| Standards and Protocols
IEEE 802.3ab, IEEE 802.3z,
IEEE 802.3x, IEEE 802
IEEE 802.3ad,
|
Interface
| 24 10/100Mbps RJ45 Ports
|
Network Media
| 10BASE-T: UTP category 3, 4, 5 cable
1000BASE-X: MMF, SMF
|
Fan Quantity
| 2
|
Physical Security Lock
| Yes
|
Power Supply
| 100~240VAC, 50/60Hz
|
Power Consumption
| Maximum(PoE on): 222.15W (220V/50Hz)
|
PoE Budget
| 192W
|
Dimensions ( W x D x H )
| 17.3*8.7*1.7 in.
|
| Warranty | 1 Year |
TP-Link T1500-28PCT Smart Switch in Bangladesh
Supports 24 802.3at/af-compliant PoE+ ports with a total power supply of 192W, Integrated security strategy including 802.1Q VLAN, Port Security, and Storm control help protect LAN area investment, L2/L3/L4 QoS and IGMP snooping optimize voice and video applications, WEB/CLI managed modes, SNMP, RMON bring abundant management features.
What This Product Does
TP-Link smart switch T1500-28PCT is equipped with 24 10/100Mbps RJ45 ports, 4 10/100/1000Mbps RJ45 ports and 2 combo Gigabit SFP slots. All of the 24 10/100Mbps RJ45 ports support the 802.3at/af (PoE+) standard with total PoE power budget of 192W and useful PoE power management features. The switch provides high performance, enterprise-level QoS, useful security strategies and rich layer 2 management features. TP-Link smart switch T1500-28PCT is a cost-effective product solution for the small and medium business. T1500-28PCT has useful security features. The Storm Control feature protects against Broadcast, Multicast and Unknown unicast Storm. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Anymore, the easy-to-use web management interfaces, along with SNMP and RMON, mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive layer 2 switch and gigabit capability, TP-Link smart switch T1500-28PCT provides you the ideal access-edge solution.
IEEE 802.3at/af-compliant Power over Ethernet
The T1500-28PCT supports 24 ports of IEEE 802.3af/at-compliant PoE and has a total power supply of 192W to power any 802.3af/at-compliant power device. It’s an efficient and cost-effective choice to work with wireless access points, surveillance cameras, IP phones and other PoE-supported devices, while getting rid of cables or power lines running around. Compact and flexible, the T1500-28PCT is ideal to flexibly use PoE to deploy wireless access points or IP-based network surveillance cameras for projects or small business networks.
Advanced QoS features
To integrate voice, data, and video services on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth, and jitter-free. In conjunction with the Voice VLAN the switch supports, the voice applications will operate with much smoother performance.
Abundant Layer 2 features
For more application of layer 2 switches, T1500-28PCT supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Group and 802.3x Flow Control function. Any more, the switches provide advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forwards the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access.
Enterprise Level Management Features
T1500-28PCT is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface (GUI) or industry-standard Command Line Interface (CLI). SNMP (v1/2/3) and RMON support enable the switch to be polled for valuable status information and send traps on abnormal events.
