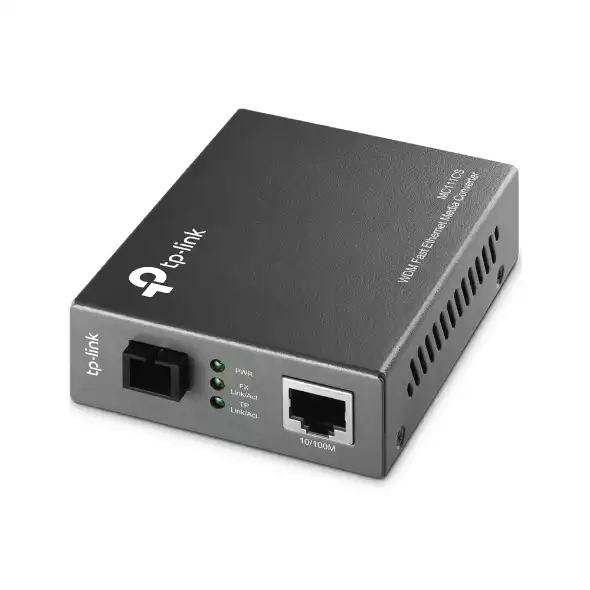

Tp-Link MC111CS WDM Media Converter
Product Pricing
Tp-Link MC111CS Media Converter in Bangladesh
Features:
power supply included
1 x Ethernet port 10/100 Mbps (RJ-45)
maximum transmission distance - 20 km
transmission via one single-mode fiber (WDM
LED indicators showing operating status
easy installation (plug and play))
What This Product Does
The MC111CS may be a media converter designed to convert 100BASE-FX fiber to 10/100Base-TX copper media or the other way around. Adopting WDM technology, MC111CS takes just one fiber cable to transmit and receive data, which can be half cable cost for you. Designed with IEEE 802.3u 100Base-TX and 100Base-FX standards, the MC111CS is meant to be used with single-mode fiber cable utilizing the SC-Type connector. The MC111CS supports longwave (LX) laser specification at a full wire-speed forwarding rate. It works at 1550nm on transferring data and at 1310nm on receiving data. therefore the other end device to cooperate with the MC111CS should work on 1310nm on transferring data and at 1550nm on receiving data. Another TP-LINK´s media converter MC112CS is simply one among the examples to cooperate with MC111CS. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port, and front panel status LEDs. The MC111CS will transmit at extended fiber optic distances utilizing single-mode fiber up to twenty kilometers(12.5 miles).
TP-LINK MC111CS is a reliable media converter enabling the transmission of Fast Ethernet data stream in one single-mode glass fiber over distances up to twenty km. The media converter has one SC connector wont to transmit and receive optical signals. it's possible thanks to the utilization of wavelength-division multiplexing technology (WDM) - different wavelengths of laser light carry different signals, over one strand of fiber. It significantly lowers installation costs.
The device transmits optical signal within the III transmission window (1550 nm) and receives optical signal within the II window (1310 nm). The sensitivity of the receiver and output power of the transmitter is adapted to transmit optical information up to twenty km.
TP-LINK devices have MDI/MDIX auto-detection features and automatically find and set the fastest connection speed and mode. The "Store and forward" mechanism allows verifying the received data using the checksum function.
TP-LINK media converters are fully compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3x standards. Their installation is extremely simple because of the "Plug and Play" feature. The LED indicators show the current operating status.
