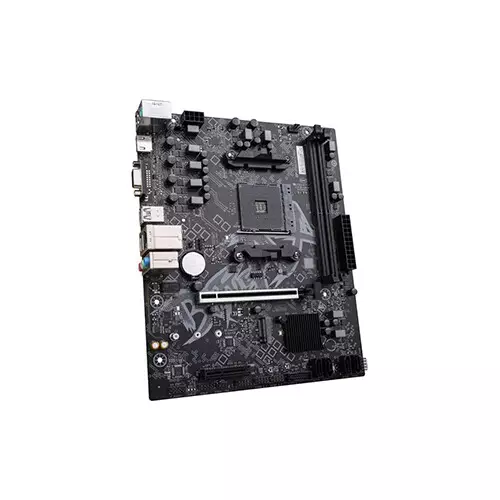

Colorful BATTLE-AX B550M-D PRO V14 DDR4 AMD AM4 M-ATX Motherboard
Chipset: AMD B550
Memory Type: 2 x DDR4
Memory Support: up to 64GB
Form Factor: M-ATX
Sale Ends In
31 Mar, 2026 02:39:00 PM
| Processor | |
| Supported CPU |
Supports AMD Ryzen series processors that fit the AMD AM4 slot of the motherboard |
| Chipset |
AMD B550 |
| Mainboard | |
| BIOS |
128M UEFI, support multiple languages |
| Memory | |
| Memory |
2 DDR4 memory sockets are provided, which can support up to 64GB of memory (a single socket can support up to 32 GB of memory) Support DDR4-3600(OC)/3200/2933/2666/2400MHz memory Support Extreme Memory Profile (XMP) memory technology Supports dual-channel memory technology |
| Storage | |
| Supported Storage |
1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces, and supports creating RAID 0, RAID 1, RAID 10 disk arrays using SATA hard disk devices M.2_1 slot: supports 2242/2260/2280 M.2 SSD (PCIe 4.0 x4/SATA, CPU channel) |
| Networking & Connectivity | |
| LAN |
RTL8125 2.5Gbit LAN |
| Audio & Microphone | |
| Audio |
Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels |
| Ports | |
| Slots |
1×PCIe 4.0 x16 slot 1×PCIe 3.0 x4 slot |
| Internal I/O Ports |
1×CPU fan pin 1×System fan pin 2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces 1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A 1×12V 4-pin RGB pin 1×Front audio pin 1×Front panel pin 1×Speaker pin 1×Clear CMOS jumper 1×COM port pin 1×BIOS burner pin 1×Debug light pin 1×USB live control jumper |

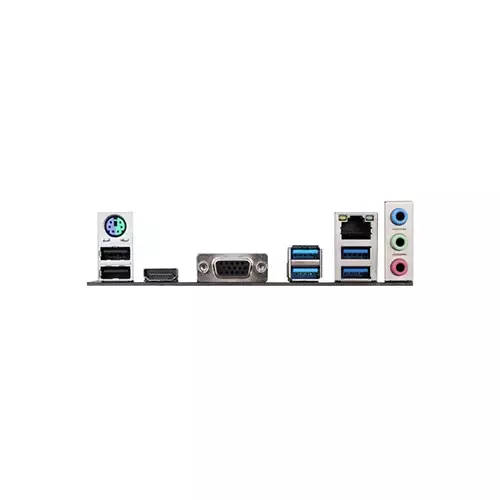

| External I/O Ports |
2×USB 2.0 interfaces 4×USB 3.2 Gen 1 Type-A interfaces 1×HDMI 1.4 interface, Supports up to 4K 30Hz resolution 1×VGA interface 1×PS/2 interface 1×2.5G network interface 3×Audio interfaces (audio input/audio output/microphone) |
| Software | |
| Software Features |
Hardware Monitor: CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
| Others | |
| Other Features |
Power Management: Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot |
| Physical Specification | |
| Form Factor |
M-ATX 197mm x 240mm |
| Warranty Information | |
| Warranty |
3 Years
|
