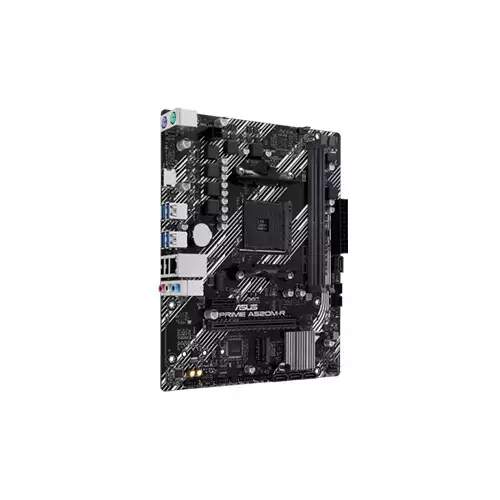

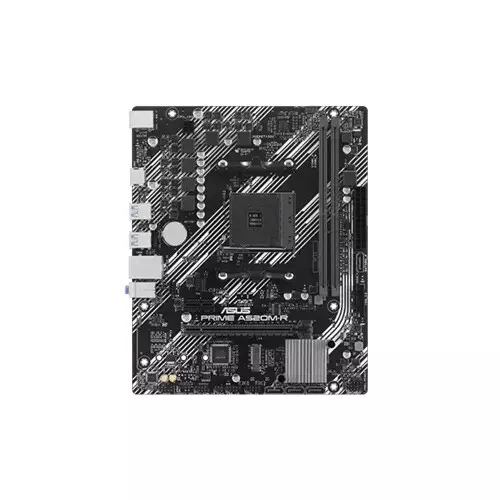

Asus PRIME A520M-R AM4 micro ATX Motherboard

AMD Socket AM4 for AMD Ryzen 5000 Series/

5000 G-Series/ 4000 G-Series/ 3000 Series/

3000 G-Series Desktop Processors

A520

128 Mb Flash ROM, UEFI AMI BIOS

64GB

1 x M.2 slot (Key M)

4 x SATA 6Gb/s ports

M.2 slot (Key M), type 2242/2260/2280

(supports PCIe 3.0 x4 & SATA modes)

1 x HDMI port**

* Graphics specifications may vary between CPU types

1 x Realtek 1Gb Ethernet

ASUS LANGuard

3 x Audio jacks

Realtek 7.1 Surround Sound High Definition Audio CODEC

Supports: Jack-detection, Multi-streaming,

Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features:

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is
required to support 7.1 Surround Sound audio output.

Fan and Cooling Related

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header

Power Related

1 x 24-pin Main Power connector

1 x 4-pin +12V Power connector

Storage Related

1 x M.2 slot (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (F_AUDIO)

1 x S/PDIF Out header

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin System Panel header

TPM (Trusted Platform Module )

1 x SPI TPM header (14-1pin)

AMD Ryzen 5000 Series/ 5000 G-Series/

4000 G-Series/ 3000 Series/

3000 G-Series Desktop Processors

1 x PCIe 3.0 x16 slot (supports x16 mode)

AMD A520 Chipset

1 x PCIe 3.0 x1 slot

2 x DIMM

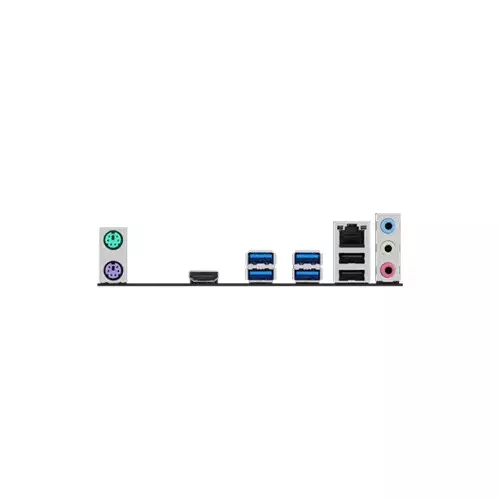

Rear USB (Total 6 ports)

4 x USB 5Gbps ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 6 ports)

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

1 x HDMI

ASUS Exclusive Software

Armoury Crate

AI Suite 3

- Performance And Power Saving Utility

TurboV EVO

EPU

DIGI+ VRM

Fan Xpert

- EZ update

- PC Cleaner

ASUS CPU-Z

Norton 360 Deluxe (60 Days Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

ASUS 5X PROTECTION III

- DIGI+ VRM

- LANGuard

- Overvoltage protection

- SafeSlot Core

- Stainless-steel back I/O

ASUS Q-Design

- Q-DIMM

- Q-LED Core

- Q-Slot

ASUS Thermal Solution

- Aluminum heatsink design

Black

micro-ATX Form Factor

9.3 inch x 7.6 inch ( 23.6 cm x 19.3 cm )

DDR4

PRIME A520M-R

3 years
