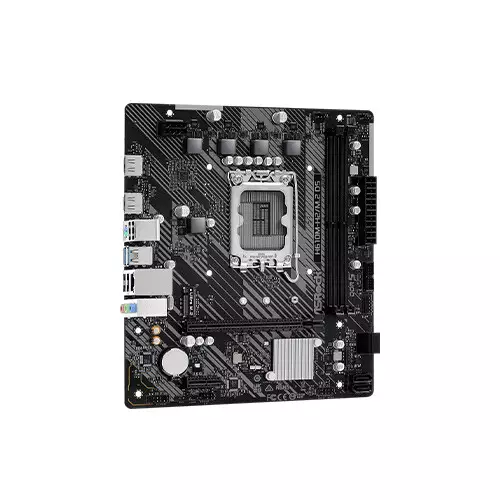

ASROCK H610M-H2/M.2 D5 Intel mATX DDR5 Motherboard
Chipset - Intel H610
Form Factor - Micro ATX
Memory - DDR5, 64GB
Audio - 7.1 CH HD Audio
Sale Ends In
31 Mar, 2026 02:39:00 PM
| Processor | |
| Supported CPU |
- Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700) - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology |
| Chipset |
Intel H610 |
| Mainboard | |
| BIOS |
- 128Mb AMI UEFI Legal BIOS with GUI support |
| Memory | |
| Memory |
- Dual Channel DDR5 Memory Technology - 2 x DDR5 DIMM Slots - 13th Gen Intel Core Processors support DDR5 non-ECC, un-buffered memory up to 5600 - 12th Gen Intel Core Processors support DDR5 non-ECC, un-buffered memory up to 4800* - Max. capacity of system memory: 96GB - Supports Intel Extreme Memory Profile (XMP) 3.0 |
| Storage | |
| Supported Storage |
Chipset: - 1 x Ultra M.2 Socket (M2_1, Key M), - 4 x SATA3 6.0 Gb/s Connectors |
| Graphics | |
| Graphics |
Intel Xe Graphics Architecture (Gen 12) - 2 x HDMI 2.1 TMDS Compatible, |
| Networking & Connectivity | |
| LAN |
- Gigabit LAN 10/100/1000 Mb/s - Realtek 8111H |
| Audio & Microphone | |
| Audio codecs |
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| Ports | |
| Slots |
CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE2) |
| Internal I/O Ports |
- 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x Chassis/Water Pump Fan Connector - 1 x 24-pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header |

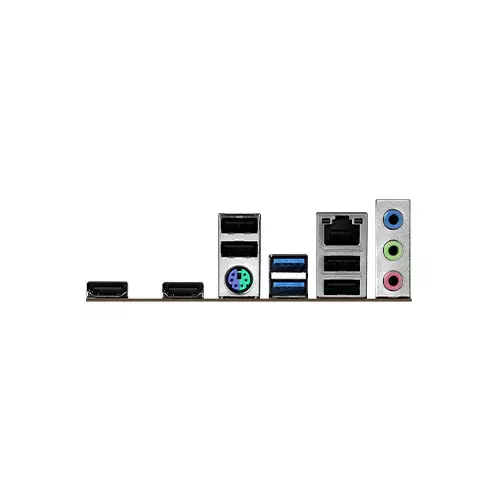

| External I/O Ports |
- 1 x PS/2 Mouse/Keyboard Port - 2 x HDMI Ports - 2 x USB 3.2 Gen1 Type-A Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / |
| USB |
- 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) - 6 x USB 2.0 (4 Rear, 2 Front) |
| Software | |
| Software Features |
Software - ASRock Motherboard Utility (A-Tuning) UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |
| Others | |
| Accessories |
- 1 x User Manual - 1 x I/O Shield - 2 x SATA Data Cables - 1 x Screw for M.2 Socket |
| Other Features |
- FCC, CE - ErP/EuP ready (ErP/EuP ready |
| Physical Specification | |
| Form Factor |
- Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm |
| Technical Info | |
| OS |
- Microsoft Windows 10 64-bit / 11 64-bit |
| Warranty Information | |
| Warranty |
3 years |
