ASUS PRIME A520M-A II AM4 MICRO ATX MOTHERBOARD
ASUS PRIME A520M-A II AM4 MICRO ATX MOTHERBOARD-cover-thumbnail ASUS PRIME A520M-A II AM4 MICRO ATX MOTHERBOARD-1 ASUS PRIME A520M-A II AM4 MICRO ATX MOTHERBOARD-2 ASUS PRIME A520M-A II AM4 MICRO ATX MOTHERBOARD-3 ASUS PRIME A520M-A II AM4 MICRO ATX MOTHERBOARD-4 ASUS PRIME A520M-A II AM4 MICRO ATX MOTHERBOARD-5

ASUS PRIME A520M-A II AM4 MICRO ATX MOTHERBOARD

Stock : In Stock
PID : P0122506497
Brand : Asus
Model : PRIME A520M-A II
Warranty : 3 Year's
★ ★ ★ ★ ★
0 Reviews
  • CPU: AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series
  • Dual Channel Memory Architecture
  • Output: 1 x DisplayPort, 1 x D-Sub, 1 x HDMITM port
  • Features: 5X Protection III

    • Discount Price

    ৳ 11,100 ৳ 11,500
    Available Payment Method

    Sale Ends In

    31 Mar, 2026 02:39:00 PM

    Processor
    Supported CPU
    AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
    Mainboard
    Chipset
    A520
    BIOS
    128 Mb Flash ROM, UEFI AMI BIOS
    Memory
    Memory
    4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory*

    Dual Channel Memory Architecture

    *ECC Memory (ECC mode) support varies by CPU.
    Storage
    Supported Storage
    Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports

    AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

    M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

    AMD A520 Chipset

    4 x SATA 6Gb/s ports

    Support Raid 0, 1, 10
    Graphics
    Graphics
    Graphics specifications may vary between CPU types
    Audio & Microphone
    Audio
    Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC

    - Supports: Jack detection, Multi-streaming, Front Panel Jack-retasking

    - Supports up to 24-Bit/192 kHz playback"

    Audio Features

    - Audio Shielding

    - Premium Japanese audio capacitors

    - Dedicated audio PCB layers
    Ports
    Slots
    AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

    1 x PCIe 3.0 x16 slot (supports x16 mode)

    AMD A520 Chipset

    2 x PCIe 3.0 x1 slots
    Internal I/O Ports
    Fan and cooling related

    1 x 4-pin CPU Fan header

    2 x 4-pin Chassis Fan headers

    Power related

    1 x 24-pin Main Power connector

    1 x 8-pin +12V Power connector

    Storage related

    1 x M.2 slot (Key M)

    4 x SATA 6Gb/s ports

    USB

    1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

    2 x USB 2.0 headers support additional 4 USB 2.0 ports

    Miscellaneous

    2 x AURA Addressable Gen 2 header

    2 x AURA RGB headers

    1 x Clear CMOS header

    1 x COM Port header

    1 x Front Panel Audio header (AAFP)

    1 x S/PDIF Out header

    1 x Speaker header

    1 x SPI TPM header (14-1pin)

    1 x 10-1 pin System Panel header

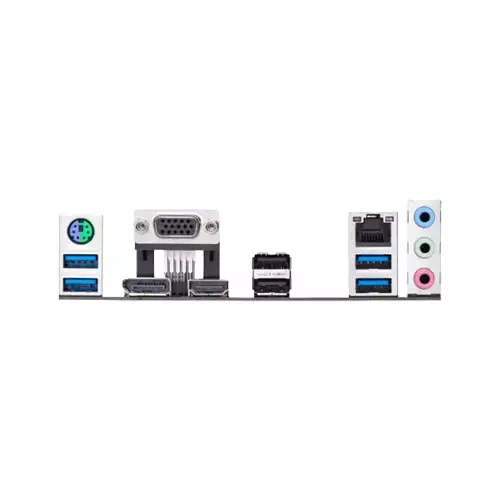

    External I/O Ports
    4 x USB 3.2 Gen 1 ports (4 x Type-A)

    2 x USB 2.0 ports (2 x Type-A)

    1 x DisplayPort

    1 x HDMITM port

    1 x D-Sub

    1 x Realtek 1Gb Ethernet port

    3 x Audio jacks

    1 x PS/2 Keyboard/Mouse combo port
    Software
    Software Features
    ASUS Exclusive Software

    Armoury Crate

    - Aura Creator

    - Aura Sync

    AI Suite 3

    - Performance And Power Saving Utility

    TurboV EVO

    EPU

    Digi+ VRM

    Fan Xpert 2+

    - EZ update

    ASUS CPU-Z

    AI Charger

    DAEMON Tools

    Norton Anti-virus software (Free Trial version)

    WinRAR

    UEFI BIOS

    ASUS EZ DIY

    - ASUS CrashFree BIOS 3

    - ASUS EZ Flash 3

    - ASUS UEFI BIOS EZ Mode
    Special Features
    Special Features
    ASUS 5X PROTECTION III

    - DIGI+ VRM

    - LANGuard

    - Overvoltage Protection

    - SafeSlot Core

    - Stainless-Steel Back I/O

    ASUS Q-Design

    - ASUS Q-DIMM

    - ASUS Q-Slot

    ASUS Thermal Solution

    - VRM heatsink design

    AURA Sync

    - AURA RGB headers

    - Addressable Gen 2 RGB headers
    Others
    Other Features

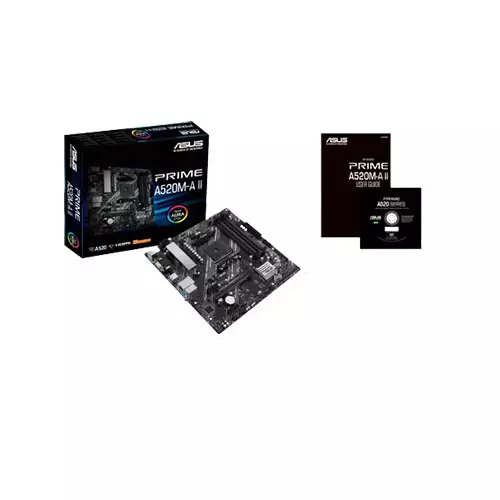

    Accessories

    Cables

    2 x SATA 6Gb/s cables

    Miscellaneous

    1 x I/O Shield

    1 x M.2 SSD screw package

    Installation Media

    1 x Support DVD

    Documentation

    1 x User manual
    Physical Specification
    Form Factor
    microATX
    Dimension
    24.4cm x 24.4cm
