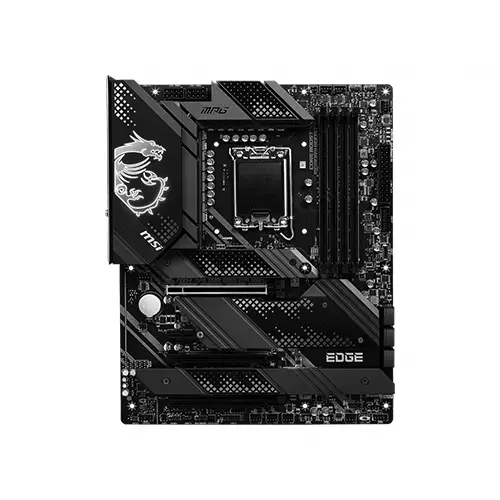

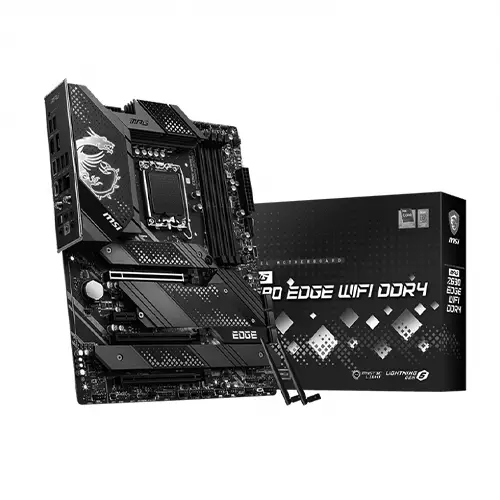

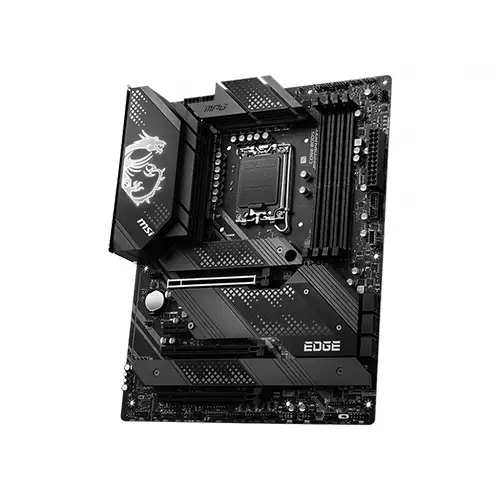

MSI MPG Z690 EDGE WIFI 12th Gen Intel Motherboard in Bangladesh

Streamline overclocking performance and connectivity with the MPG Z690 EDGE WIFI DDR4 LGA 1700 ATX Motherboard from MSI. Featuring an LGA 1700 socket and Z690 chipset, this motherboard is compatible with Intel 12th Gen Core, Pentium Gold, and Celeron processors. Install up to 128GB of dual-channel RAM across four DDR4 memory slots, with speeds up to 5200 MHz supported via overclocking. Four M.2 and six SATA III connectors accommodate storage drives, while a PCIe 5.0 x16 slot, two PCIe 3.0 x16 slots, and a PCIe 3.0 x1 slot can be used to install various adapter cards. This board also supports AMD CrossFireX for boosted multi-GPU performance.

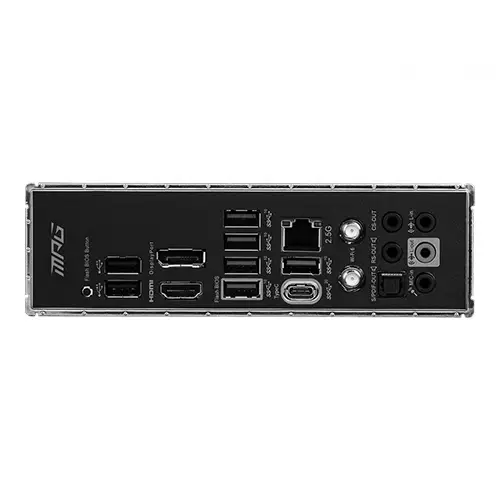

Connect accessories via five USB 3.2 Gen 2 and two USB 2.0 Type-A ports on the rear I/O panel. Pair to wireless peripherals via Bluetooth 5.2 or go online with Wi-Fi 6. An RJ45 port is also present, supporting wired 2.5 Gigabit Ethernet connections. Connect to monitors via the DisplayPort 1.4 or HDMI 2.1 outputs. Internal headers provide connections for liquid or air cooling, dual CPU power, a TPM module, chassis intrusion alarm, a USB 3.2 Gen 2 Type-C port on the front panel, and more. Relying on the Realtek ALC4080 Audio Codec, the MSI MPG Z690 EDGE WIFI DDR4 supports 8-channel audio, sample rates up to 32-bit/384 kHz, and digital audio output.

LGA 1700 Socket

Utilizing the LGA 1700 socket and Z690 chipset, this motherboard is compatible with 12th Gen Intel Core, Pentium Gold, and Celeron processors.

Cooled to the Core

A heavy plated MOS heatsink, aluminum cover, heat pipe, M.2 Shield FROZR, enlarged chipset heatsink, 7W/mK thermal pads, and extra choke pads ensure your board stays cool.

M.2 Shield FROZR

Featuring an integrated design, this heatsink ensures your M.2 drive isn't hampered by throttling due to high temperatures.

MSI AI Engine

Detect CPU and GPU temperatures and automatically adjust the system fans via MSI AI ENGINE. Take advantage of performance, silent, and manual modes for tailored operation.

Fully Controllable in BIOS and Software

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, with automatic adjustment of fan speeds.

Easy DIY Cooling

Connect and sync with a range of cooling components and cases thanks to strategically positioned header locations.

16+1+1 Power Design

Utilizing a VRM design built with a total of 16 digital CPU power phases, two 8-pin power connectors, and Core Boost technology, this motherboard is ready for intense workloads.

Core Boost

Core Boost technology combines a streamlined layout with an optimized power design, allowing for faster and undistorted current delivery to the CPU for precise multi-core computing and overclocking.

Game Boost

MSI Game Boost enables one-second overclocking, boosting performance so you can achieve more frames per second.

Load Line Calibration

Load line calibration ensures CPU voltage remains stable under any load.

Overvoltage Protection

Overvoltage protection prevents potential short-circuit damage to the CPU and other critical components.

Digital Power Design

A fully digital power design allows for faster and undistorted current delivery to the CPU for precision and easy overclocking.

Dual Power Connectors

Two 8-pin connectors deliver adequate power, even for an overclocked multi-core CPU.

EZ M.2 Clip

Install an M.2 SSD quickly and effortlessly using the EZ M.2 clips.

Preinstalled I/O Shield

The preinstalled I/O shield makes your installation process easy and safe. The design also prevents electrostatic discharge damage for a stronger gaming platform.

Keep Out Zone

MSI motherboard circuitry ensures the case standoff keep out zones are clear of contacts, preventing shorts or damage to the motherboard. Plus, an avoid-collision notification is printed in protective paint around each screw hole to prevent parts from being scratched.

Easy DIY Setup and Installation

Cable stickers, a cleaning brush, screwdriver set, and USB drive are included, allowing for easy DIY installation and setup.

XL Clip

The enlarged PCIe clip helps you swap or remove your devices with ease while also keeping the PCIe slot stronger and safer.

EZ Debug LED

Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get your machine up and running again.

EZ LED Control

This built-in LED button on the motherboard controls your lighting effect, allowing you to turn motherboard lighting on or off in a second.

PCB Design

The PCB design is optimized for higher bandwidth and faster transfer speeds, as well as reliable circuit transmission. Utilizing a six-layer PCB, this motherboard sports server-grade materials and two ounces of thickened copper.

PCIe Steel Armor

MSI PCIe Steel Armor slots are secured to the motherboard with extra solder points. In addition to supporting the weight of heavy graphics cards, these slots are also intended to shield the points of contact from electromagnetic interference.

Double ESD Protection

Double ESD protection increases the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.

Compatibility

In addition to being compatible with 12th Gen Intel processors, this motherboard is Windows 10 and 11 certified. Furthermore, it has been tested for compatibility and stability with a range of memory modules from brands such as Corsair, Crucial, Kingston, G.Skill, and more.

Easy Memory Overclocking

XMP memory profile support enables improved performance and efficiency for the Z690 chipset. Plus, use the MSI BIOS to access auto power settings and boost speed and stability.

PCIe 5.0

Get speeds up to 128 GB/s with the PCIe 5.0 x16 interface, which doubles the speed of the previous generation.

SMT PCIe 5.0 Slot

A Surface Mount Technology (SMT) PCIe 5.0 slot diminishes interference and electrical noise, while also fully supporting the higher bandwidth and faster transfer speeds of PCIe 5.0 signal.

2.5 Gigabit Ethernet

Get fast internet connectivity via an RJ45 port supporting 2.5 Gigabit Ethernet.

Wi-Fi 6

Wi-Fi 6 adopts OFDMA and two-way MU-MIMO technologies for up to four times higher network capacity and efficiency in a high signal density environment, translating to improved performance compared to older Wi-Fi 5 standards.

Optimized for Lower Latency

MSI LAN Manager automatically classifies and prioritizes latency-sensitive applications, giving you the best online experience with low latency. Change an application's traffic priority or customize the bandwidth for each application.

Hi-Res Audio Ready

Designed to tackle hi-res audio needs, this motherboard features the Realtek ALC4080 codec and supports up to 32-bit/192 kHz and 32-bit/384 kHz for uncompromised fidelity.

Analog and Digital Audio Outputs

Connect analog audio equipment via five 3.5mm jacks on the I/O panel, or use the digital S/PDIF output to connect digital audio equipment like a stand-alone DAC.

Onboard Headphone Amplifier

The integrated headphone amplifier can drive headphones with impedances of up to 600 ohms.

Isolated Audio Design

Like a dedicated sound card, audio components and circuits have been laid on a reserved motherboard section and electrically isolated.

Separate Audio Layers

Using separated layers in the PCB ensures accurate sound quality for both left and right audio channels.

De-Pop Protection

Audio Boost technology protects your ears by eliminating annoying loud popping sounds when you plug in or unplug devices or turn your computer on or off.

Maximize USB Performance

Use the USB 3.2 Gen 2x2 Type-C port on the rear I/O panel to take advantage of transfer speeds up to 20 Gb/s.

Front-Panel USB Type-C Port

Use the internal header to connect a USB 3.2 Gen 2 Type-C port on the front panel.

MSI Mystic Light

Splash on some color and vibrant RGB lighting effects using MSI Mystic Light. With 16.8 million colors and a plethora of LED effects, MSI Mystic Light provides complete control over your RGB lighting via a single program.

Extend RGB with Ease

The Mystic Light Extension pin header provides an intuitive way to control RGB strips and other RGB peripherals added to a system without needing a separate RGB controller.

USB 3.2 Gen 2

Doubling the speed of its predecessor, USB 3.2 Gen 2 features a maximum throughput of 10 Gb/s when used with compatible devices and is synonymous with USB 3.1 Gen 2.
