Product Information

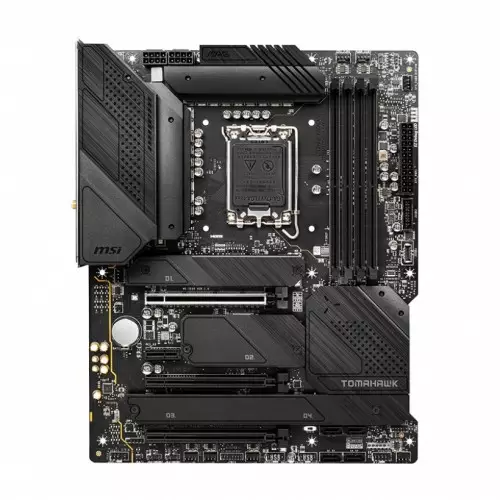

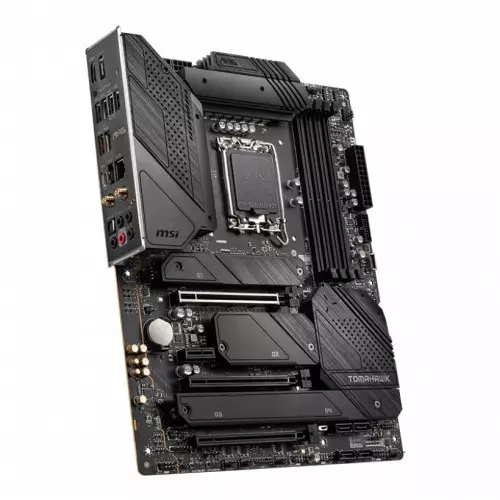

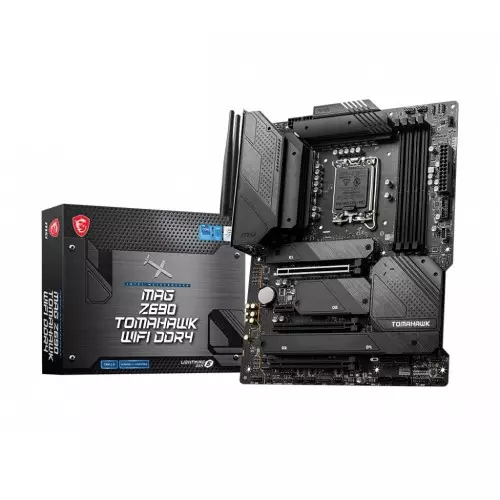

MSI MAG Z690 TOMAHAWK WIFI DDR4 12th Gen ATX Motherboard
- Intel Z690 chipset
- ATX Form Factor
- Supports 12th Gen Processors
- 2.5G LAN and Intel Wi-Fi Solution
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
Processor socket LGA1700
Mainboard
Memory
Slots: 4 x DIMM
Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5200+ MHz
1DPC 2R Max speed up to 4800+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Maximum Memory: 128GB
Storage
4x M.2 slots (Key M)
M2_1 slot (From CPU)
Supports up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (From Z690 chipset)
Supports up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280 storage devices
M2_3 slot (From Z690 chipset)
Supports up to PCIe 3.0 x4
Supports up to SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_4 slot (From Z690 chipset)
Supports up to PCIe 4.0 x4
Supports up to SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Intel Optane Memory Ready for M.2 slots from Z690 Chipset
Supports Intel Smart Response Technology for Intel Core processors
RAID:
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Graphics
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Supports AMD CrossFire Technology
Networking & Connectivity
Audio & Microphone
7.1-Channel High Definition Audio
Supports S/PDIF output
Ports
PCI_E1 (From CPU)
Support up to PCIe 5.0 x16
PCI_E3 (From Z690 chipset)
Support up to PCIe 3.0 x4
PCI_E4 (From Z690 chipset)
Support up to PCIe 3.0 x1
1x PCIe 3.0 x1 slot (From Z690 chipset)
4x M.2 slots (Key M)
2x 8-pin ATX 12V power connectors
6x SATA 6Gb/s connectors
4x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
1x Clear CMOS jumper
1x TBT connector (supports RTD3)
1x Tuning Controller connector
Display Port (s): 1x DisplayPort 1.4

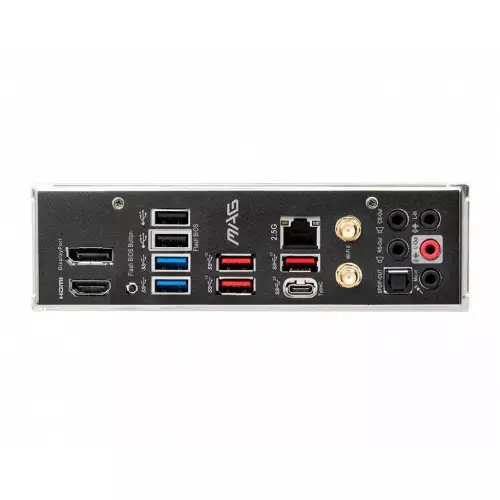

1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel
4x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector, 3 Type-A ports on the back panel)
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal connector)
1x USB 2.0 Type-A port on the back panel
Hub-GL850G:
5x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors)
Physical Specification
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Warranty Information
PRODUCT DESCRIPTION
MSI Z690 TOMAHAWK WIFI Motherboard
The MSI Z690 TOMAHAWK WIFI Motherboard from MSI. Featuring an LGA 1700 socket and Z690 chipset, MSI Z690 TOMAHAWK WIFI Motherboard is compatible with Intel 12th Gen Core, Pentium Gold, and Celeron processors. Install up to 128GB of dual-channel RAM across four DDR4 memory slots, with speeds up to 5200 MHz supported via overclocking. Four M.2 and six SATA III connectors accommodate storage drives, while a PCIe 5.0 x16 slot, two PCIe 3.0 x16 slots, and a PCIe 3.0 x1 slot can be used to install various adapter cards. This MSI Z690 TOMAHAWK WIFI Motherboard also supports AMD CrossFireX for boosted multi-GPU performance.Connect accessories via a USB 3.2 Gen 2x2 Type-C port, three USB 3.2 Gen 2, two USB 3.2 Gen 1, and two USB 2.0 Type-A ports on the rear I/O panel. Pair to wireless peripherals via Bluetooth 5.2 or go online with Wi-Fi 6. An RJ45 port is also present, supporting wired 2.5 Gigabit Ethernet connections. Connect to monitors via the DisplayPort 1.4 or HDMI 2.1 outputs. Internal headers provide connections for liquid or air cooling, dual CPU power, a TPM module, chassis intrusion alarm, a USB 3.2 Gen 2 Type-C port on the front panel, and more. Relying on the Realtek ALC4080 Audio Codec, the MSI Z690 TOMAHAWK WIFI Motherboard supports 8-channel audio, sample rates up to 32-bit/384 kHz, and digital audio output.
