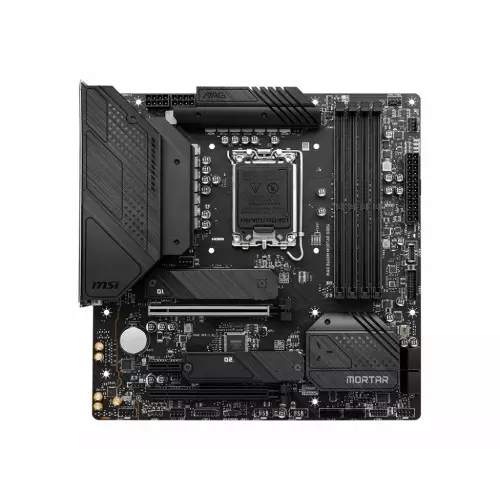

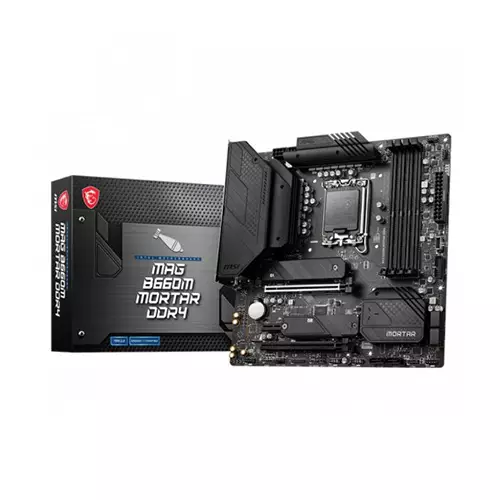

MSI MAG B660M MORTAR DDR4 12th Gen Micro-ATX Motherboard

MSI MAG B660M MORTAR DDR4 12th Gen Micro-ATX Motherboard

Name: MSI MAG B660M MORTAR DDR4 12th Gen Micro-ATX Motherboard
Brand: MSI
SKU: P0402506100
Price: 22600 BDT
Availability: OutOfStock

0 Reviews

Stock : Out of Stock

PID : P0402506100

Brand : MSI

Model : MAG B660M MORTAR DDR4

Warranty : 3 years

Intel B660 Chipset
socket LGA1700
12th generation Intel
Micro-ATX Form Factor

Discount Price

৳22,600 ৳23,800

+ Available Payment Method

EMI Start From*

৳796

SPECIFICATIONS

Processor

Supported CPU Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors

Processor socket LGA1700

Mainboard

Chipset Intel B660 Chipset

Memory

Memory 4x DDR4 memory slots, support up to 128GB 1

Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)

Max overclocking frequency:

1DPC 1R Max speed up to 4800+ MHz

1DPC 2R Max speed up to 4000+ MHz

2DPC 1R Max speed up to 4000+ MHz

2DPC 2R Max speed up to 3600+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel® Extreme Memory Profile (XMP)

Storage

Supported Storage 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset)

2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061)

2x M.2 slots (Key M)

M2_1 slot (From CPU)

Supports PCIe 4.0 x4

Supports 2242/ 2260/ 2280 storage devices

M2_2 slot (From B660 Chipset)

Supports PCIe 4.0 x4

Supports SATA 6Gb/s

Supports 2242/ 2260/ 2280 storage devices

Supports Intel® Optane™ Memory

Graphics

Multi-GPU Supports 2-Way AMD CrossFire Technology

Graphics 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz

1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz

Networking & Connectivity

LAN 2.5G LAN Port

Audio & Microphone

Audio Realtek® ALC1200 Codec

7.1-Channel High Definition Audio

Supports S/PDIF output

Ports

Slots 2x PCIe x16 slots

PCI_E1 slot (From CPU)

Supports PCIe 4.0 x16

PCI_E3 slot (From B660 Chipset)

Supports PCIe 3.0 x4

1x PCIe 3.0 x1 slot

Internal I/O Ports 1x 24-pin ATX main power connector

2x 8-pin ATX 12V power connectors

6x SATA 6Gb/s connectors

2x M.2 slots (M-Key)

1x USB 3.2 Gen 2 10Gbps Type-C connector

1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin water-pump fan connector

2x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1x Clear CMOS jumper

1x TPM module connector

1x TBT connector (supports RTD3)

1x Tuning Controller connector

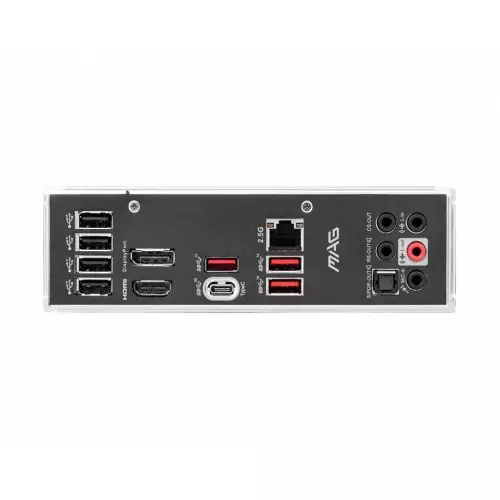

External I/O Ports USB 2.0 Port

DisplayPort 1.4

USB 3.2 Gen 2 10Gbps Type-A

2.5G LAN Port

Wi-Fi / Bluetooth Antenna

HD Audio Connectors

HDMI 2.1 Port

USB 3.2 Gen 2x2 20Gbps Type-C

Optical S/PDIF OUT

USB 1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel
1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector
2x USB 3.2 Gen 1 5Gbps ports available through the internal connector

4x USB 2.0 ports on the back panel

USB Hub-GL3590

3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel

USB Hub-GL850G

4x USB 2.0 ports available through internal connectors

HDMI HDMI 2.1 Port

Physical Specification

Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

Dimension Micro-ATX Form Factor

Warranty Information

Warranty 3 years

DESCRIPTION

MSI MAG B660M MORTAR DDR4 Motherboard

The MSI MAG B660M MORTAR DDR4 Motherboard From MSI.This MSI MAG B660M MORTAR DDR4 Motherboard supports with 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket, DDR4 Memory, up to 4800+(OC) MHz. This motherboard comes with Premium Thermal Solution, so that Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works and also this MSI MAG B660M MORTAR DDR4 Motherboard has 2.5G LAN, so that it helps to Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. By Utilizing 12th Gen Intel processors, the MSI MAG B660M MORTAR DDR4 Motherboard feature with latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. This MSI MAG B660M MORTAR DDR4 Motherboard designed with Lightning M.2, which helps to Running at PCIe Gen 4 maximizes performance for NVMe based SSDs. It is also has Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1 and also With Steel armor PCIe slots. Supports AMD Crossfire. Here, the 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN.

[product_table id="34" limit="10" type="filter" filter_category="7270"]

REVIEWS

No reviews yet

Be the first to share your thoughts about this product.

What is the MSI MAG B660M MORTAR DDR4 12th Gen Micro-ATX Motherboard Price in Bangladesh 2026 ?

The MSI MAG B660M MORTAR DDR4 Price in BD is 22,600৳ . This MSI MAG B660M MORTAR DDR4 12th Gen Micro-ATX Motherboard Manufacturing by MSI Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you MSI MAG B660M MORTAR DDR4 by 22,600৳ and its regular price is 23,800৳ Which is also Out of Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
