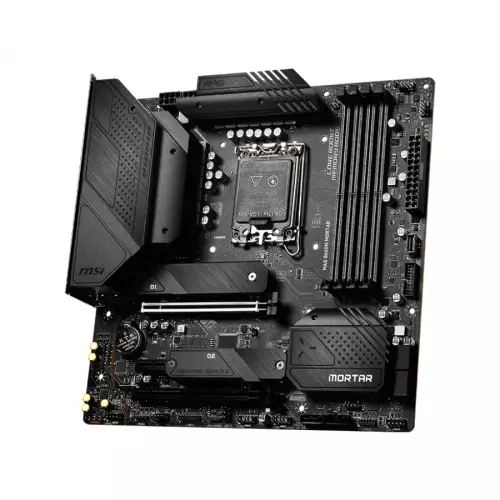

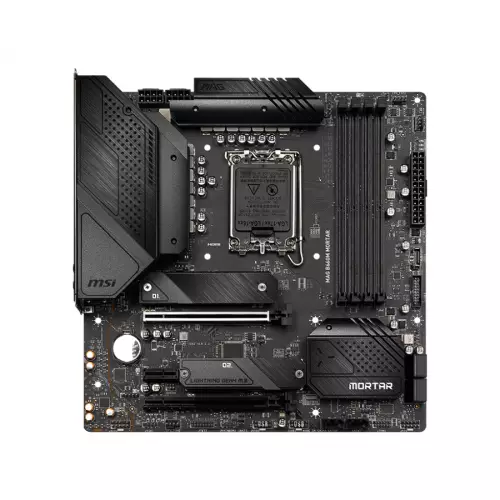

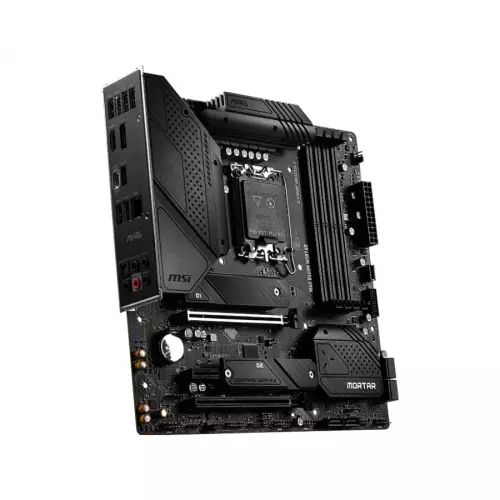

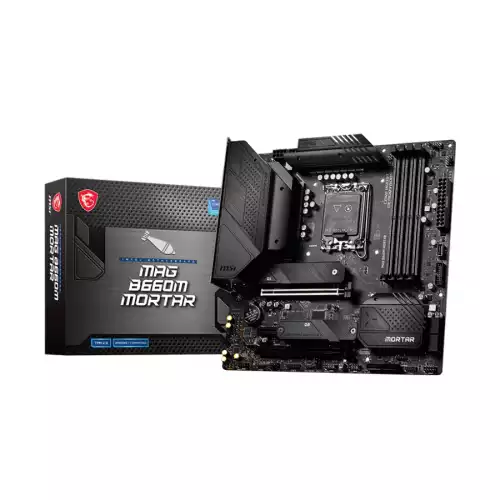

MSI MAG B660M MORTAR DDR5 12th Gen Micro-ATX Motherboard
- Supported CPU: Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors Processor socket LGA...
- Memory: 4x DDR5 memory slots, support up to 128GB1 Supports 1R 4800 MHz (by JEDEC & POR) Max overc...
- Supported Storage: 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset)1 2x SATA 6Gb/s ports (SATA_A & SATA_B, fr...
- LAN: 1X Realtek 8125BG 2.5G LAN Port
Product Pricing
EMI Start From*
SPECIFICATIONS
Processor
Processor socket LGA1700
Mainboard
Memory
Supports 1R 4800 MHz (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 6200+ MHz
1DPC 2R Max speed up to 5200+ MHz
2DPC 1R Max speed up to 4000+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Storage
2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061)
2x M.2 slots (Key M)
M2_1 slot (From CPU)
Supports PCIe 4.0 x4
Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (From B660 Chipset)1
Supports PCIe 4.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Supports Intel® Optane™ Memory
Graphics
1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz
Networking & Connectivity
Audio & Microphone
7.1-Channel High Definition Audio
Supports S/PDIF output
Ports
PCI_E1 slot (From CPU)
Supports PCIe 4.0 x16
PCI_E3 slot (From B660 Chipset)
Supports PCIe 3.0 x4
1x PCIe 3.0 x1 slot
2x 8-pin ATX 12V power connectors
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C connector
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
2x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
1x TBT connector (supports RTD3)
1x Tuning Controller connector

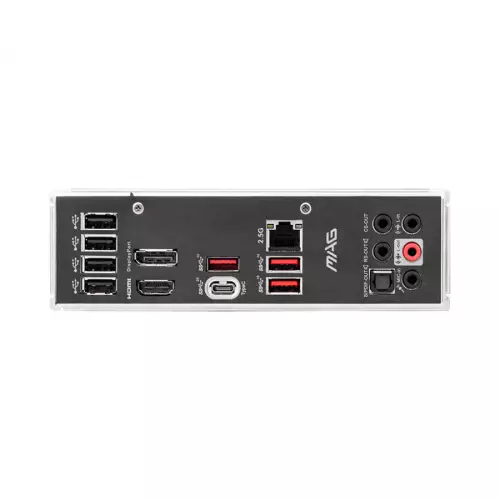

DisplayPort 1.4
USB 3.2 Gen 2 10Gbps Type-A
2.5G LAN Port
HD Audio Connectors
HDMI 2.1 Port
USB 3.2 Gen 2x2 20Gbps Type-C
Optical S/PDIF OUT
1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel
1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector
2x USB 3.2 Gen 1 5Gbps ports available through the internal connector
4x USB 2.0 ports on the back panel
USB Hub-GL3590
3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
USB Hub-GL850G
4x USB 2.0 ports available through internal connectors
Physical Specification
Warranty Information
DESCRIPTION
PREMIUM HARDWARE DESIGN
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs evaluated a wide selection of high-quality components and developed products for reliability even under extreme conditions.
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensure even high-end Intel CPU to run in full speed with MSI motherboards.
ENHANCED PERFORMANCE
High-performance MSI Motherboards are loaded with advanced features and the best technology to overwhelm any challenge at hand no matter whether you're a gamer, prosumer, or enthusiast.
LIGHTNING GEN 4 M.2
Utilizing 12th Gen Intel Core processors, MSI B660 motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.
CONNECTIVITY
MSI Motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB, and Mystic Light turn any gaming experience into an immerse one.
OPTIMIZE ONLINE GAMING TRAFFIC FOR LOWER LATENCY
MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.
[product_table id="34" limit="10" type="filter" filter_category="7270"]
REVIEWS
Login to write a review.
Overall Rating
This has to be one of the motherboard out there to support DDR5 ram that is cheap. The built quality along with sustainability is insanely good.
18 May, 2022
