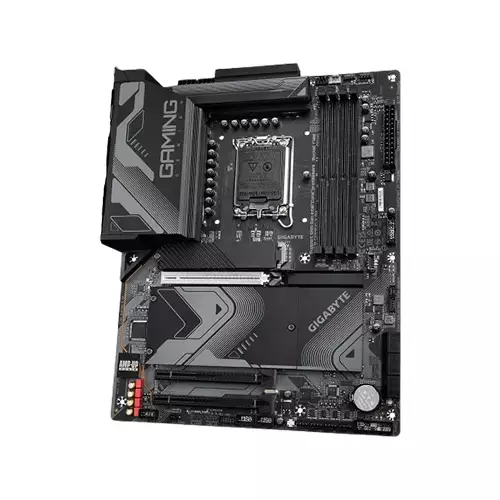

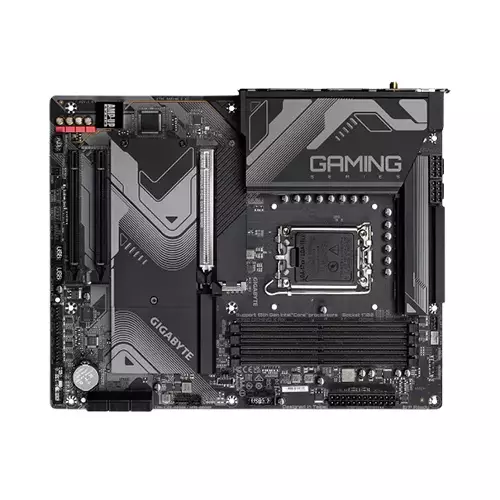

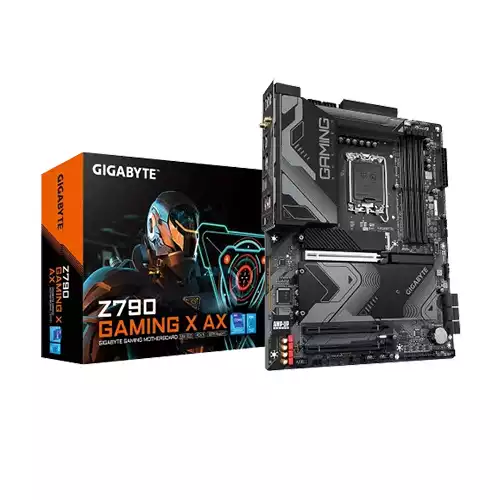

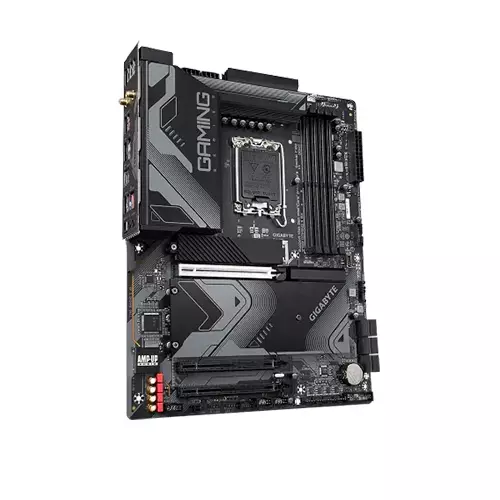

GIGABYTE Z790 GAMING X AX 13TH & 12TH GEN ATX MOTHERBOARD
- Supported CPU: 13th Gen & 12th Gen Processors (LGA1700)
- Supported RAM: 4 x DDR5 DIMMs, up to 7600(O.C.)
- Graphics Output: 1 x HDMI, 1 x DisplayPort
- Features: 2.5GbE LAN & Wi-Fi 6E 802.11ax
⌨️ PC BUILD + FREE KL-139 KEYBOARD
Product Pricing
EMI Start From*
৳1,162
SPECIFICATIONS
Processor
Supported CPU
LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
L3 cache varies with CPU
Mainboard
Chipset
Intel Z790 Express Chipset
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Memory
Memory
Type: DDR5
Slots: 4 x DIMM sockets
Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Slots: 4 x DIMM sockets
Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Storage
Supported Storage
CPU:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
6 x SATA 6Gb/s connectors
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
6 x SATA 6Gb/s connectors
Graphics
Multi-GPU
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60
* Support for DisplayPort 1.2 version and HDCP 2.3
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60
* Support for DisplayPort 1.2 version and HDCP 2.3
Networking & Connectivity
LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
WiFi
Intel Wi-Fi 6E AX211
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Audio & Microphone
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Ports
Slots
CPU:
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
1 x PCI Express x16 slots, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
1 x PCI Express x16 slots, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Internal I/O Ports
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x reset button
1 x Q-Flash Plus button
1 x Clear CMOS button
1 x reset jumper
1 x Clear CMOS jumper
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x reset button
1 x Q-Flash Plus button
1 x Clear CMOS button
1 x reset jumper
1 x Clear CMOS jumper
External I/O Ports
4 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x DisplayPort
1 x HDMI 2.0 port
3 x USB 3.2 Gen 1 ports
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
2 x SMA antenna connectors (2T2R)
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x DisplayPort
1 x HDMI 2.0 port
3 x USB 3.2 Gen 1 ports
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
USB
Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Special Features
Special Features
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model.
Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
* Available applications in GCC may vary by motherboard model.
Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Others
Other Features
RAID:
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Physical Specification
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
Warranty Information
Warranty
3 years
DESCRIPTION
BEST GIGABYTE Z790 GAMING X AX ATX MOTHERBOARD BD
The GIGABYTE Z790 GAMING X Hatchet ATX Motherboard accompanies Intel Attachment LGA 1700 that upholds thirteenth and twelfth Gen Series Processors. It conveys unmatched execution with twin 16+1+2 Stages Advanced VRM Arrangement. The motherboard accompanies 4x DIMMs with XMP 3.0 Memory Module Backing. The attachments support up to 128 GB (32 GB single DIMM limit) of framework memory. The motherboard is furnished with the PCIe 5.0 x16 opening and M.2 attachment intended to upgrade performing multiple tasks and enormous jobs, which is likewise prepared for another PCIe 5.0 designs card or capacity gadget. It upholds new PCIe 5.0 SSD with up to type 25110 M.2 space intended to give high power M.2 PCIe 5.0 SSD arrangements. The GIGABYTE Z790 GAMING X Hatchet is outfitted with Intel 2.5Gb Ethernet gives a quick lift to in general organize execution, smooth video altering, and quick information moves. Wi-Fi 6E carries the capacity to direct AR/VR encounters, get imaginative with less dropped associations, and download enormous documents at quicker speeds without slack. The high level cooling arrangement additionally gives the ideal stylish heatsink plan to keep your PC at an ideal temperature, keeping you from unforeseen framework crashes during the inventive approach.
REVIEWS
Login to write a review.
Overall Rating
1
Total Reviews
5 star
0
4 star
1
3 star
0
2 star
0
1 star
0
Antu
Quiet, cool, and efficient. Power consumption is low, and it runs my setup without breaking a sweat. The debug LEDs are a thoughtful touch for troubleshooting. Not flashy, but incredibly practical.
16 June, 2026
What is the GIGABYTE Z790 GAMING X AX 13TH & 12TH GEN ATX MOTHERBOARD Price in Bangladesh 2026 ?
The Gigabyte Z790 GAMING X AX Price in BD is 33,000৳ . This GIGABYTE Z790 GAMING X AX 13TH & 12TH GEN ATX MOTHERBOARD Manufacturing by Gigabyte Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte Z790 GAMING X AX by 33,000৳ and its regular price is 38,600৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
