GIGABYTE Z690 UD DDR4 LGA 1700 Intel 12th Gen ATX Motherboard
GIGABYTE Z690 UD DDR4 LGA 1700 Intel 12th Gen ATX Motherboard
GIGABYTE Z690 UD DDR4 LGA 1700 Intel 12th Gen ATX Motherboard - 1
GIGABYTE Z690 UD DDR4 LGA 1700 Intel 12th Gen ATX Motherboard - 2

GIGABYTE Z690 UD DDR4 LGA 1700 Intel 12th Gen ATX Motherboard

0 Reviews
Stock : Out of Stock
PID : P0392506173
Brand : Gigabyte
Model : Z690 UD DDR4
Warranty : 3 years
  • Supports 12th Gen Intel Processors
  • 4 x Dual-Channel DDR4 RAM Slots
  • Ultra Performance VRM Heatsinks
  • Direct 16+1+2 Digital VRM Design

Product Pricing

Discount Price

৳24,500 ৳28,000
+ Available Payment Method

EMI Start From*

৳863

SPECIFICATIONS

Processor

Supported CPU LGA1700 socket: Support for 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors
L3 cache varies with CPU

Mainboard

Chipset Intel Z690 Express Chipset
BIOS 1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory Support for DDR4 5333(O.C.)

DDR4 5133(O.C.)

DDR4 5000(O.C.)

4933(O.C.)

4800(O.C.)

4700(O.C.)

4600(O.C.)

4500(O.C.)

4400(O.C.)

4300(O.C.)

4266(O.C.)

4133(O.C.)

4000(O.C.)

3866(O.C.)

3800(O.C.)

3733(O.C.)

3666(O.C.)

3600(O.C.)

3466(O.C.)

3400(O.C.)

3333(O.C.)

3300(O.C.)

3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules

4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage CPU:1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)

6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10

Intel Optane Memory Ready

Graphics

Multi-GPU Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Graphics integrated Graphics Processor-Intel HD Graphics support:

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support native HDMI 2.1 TMDS compatible ports.

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

Networking & Connectivity

LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Audio & Microphone

Audio Realtek Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

Ports

Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)

1 x PCI Express x16 slot, running at x4 (PCIEX4)

1 x PCI Express x16 slot, running at x1 (PCIEX1_4)

2 x PCI Express x1 slots
Internal I/O Ports 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

3 x system fan headers

1 x system fan/water cooling pump header

2 x addressable LED strip headers

2 x RGB LED strip headers

3 x M.2 Socket 3 connectors

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB Type-C header, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x serial port header

2 x Thunderbolt add-in card connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x reset button

1 x reset jumper

1 x Q-Flash Plus button

1 x Clear CMOS jumper

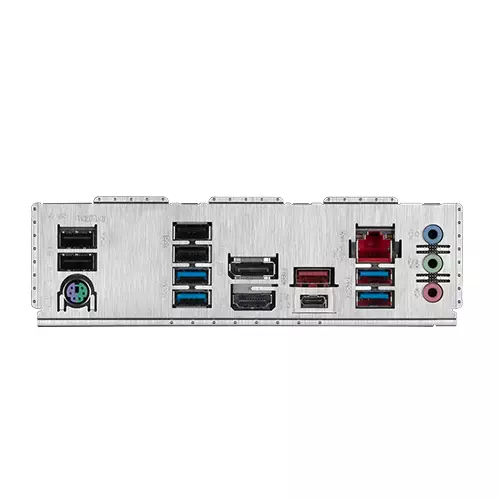

External I/O Ports 1 x PS/2 keyboard/mouse port
1 x DisplayPort

1 x HDMI port

1 x USB Type-C port, with USB 3.2 Gen 2x2 support

1 x USB 3.2 Gen 2 Type-A port (red)

4 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks
USB Chipset:

1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support

1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header

1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hubs:

8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Physical Specification

Form Factor ATX
Dimension 30.5cm x 24.4cm

Warranty Information

Warranty 3 Years

DESCRIPTION

Features:

  • Supports 12th Gen Intel Core Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Direct 16+1+2 Digital VRM Design with 60A Power Stage* and Tantalum Polymer Capacitor​
  • Ultra Performance VRM Heatsinks
  • Fast 2.5 GbE LAN with Bandwidth Management
  • 3 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Enlarged Thermal Guard
  • SuperSpeed USB 3.2 Gen 2x2 TYPE-C delivers up to 20Gb/s transfer speeds
  • RGB FUSION 2.0 supports Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory, and Graphics Card

GIGABYTE Z690 UD DDR4 Motherboard in Bangladesh

The Gigabyte Z690 UD DDR4 Motherboard will serve as the foundation for your high-performance processor-based gaming PC with Gigabyte-exclusive features like Smart Fan 6. GIGABYTE Z690 DDR4 UD Motherboard supports 12th generation Intel Core processors. The 12th generation Intel Core processors are a small revolution in x86 architectures, as they are the first to integrate a hybrid architecture. This process consists of combining two different types of cores on the same chip. The first 1, called Performance-Cores, is dedicated to performance in games and mono-threaded applications requiring resources. The second type, called Efficient-Cores, is particularly efficient for multitasking and side task processing. Together, the two provide spectacular performance and incredible responsiveness for your system. the GIGABYTE Z690 UD DDR4 Motherboard. With technology moving so fast, GIGABYTE still keeps up with the latest trends and provides our customers with advanced features and the latest technology. GIGABYTE Z690 Series motherboards come with upgraded power solution, latest storage standards, and outstanding connectivity to enable optimized performance for gaming.Z690 UD DDR4 uses high performance Covered thermal design with high coverage MOSFET Heatsinks and thick thermal pad, providing ultimate MOSFET cooling performance for enthusiasts, overclockers and gamers.




[product_table id="34" limit="10" type="filter" filter_category="139"]

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the GIGABYTE Z690 UD DDR4 LGA 1700 Intel 12th Gen ATX Motherboard Price in Bangladesh 2026 ?

The Gigabyte Z690 UD DDR4 Price in BD is 24,500৳ . This GIGABYTE Z690 UD DDR4 LGA 1700 Intel 12th Gen ATX Motherboard Manufacturing by Gigabyte Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte Z690 UD DDR4 by 24,500৳ and its regular price is 28,000৳ Which is also Out of Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
