Gigabyte Z690 AORUS PRO 12th Gen ATX Motherboard
Gigabyte Z690 AORUS PRO 12th Gen ATX Motherboard

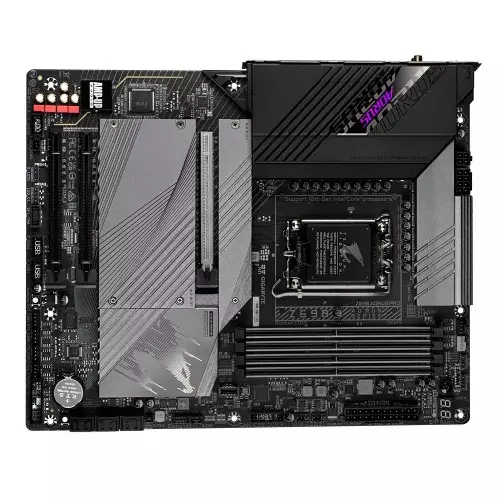

Gigabyte Z690 AORUS PRO 12th Gen ATX Motherboard - 1

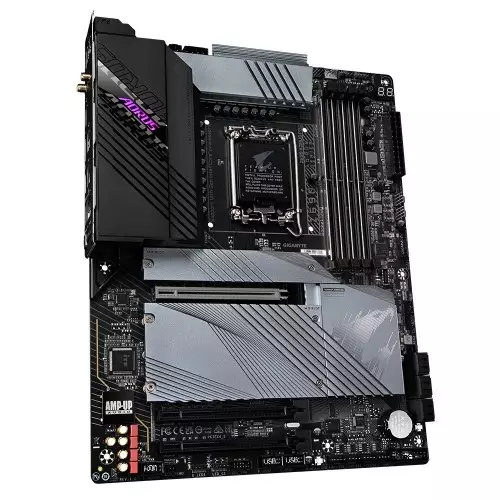

Gigabyte Z690 AORUS PRO 12th Gen ATX Motherboard - 2

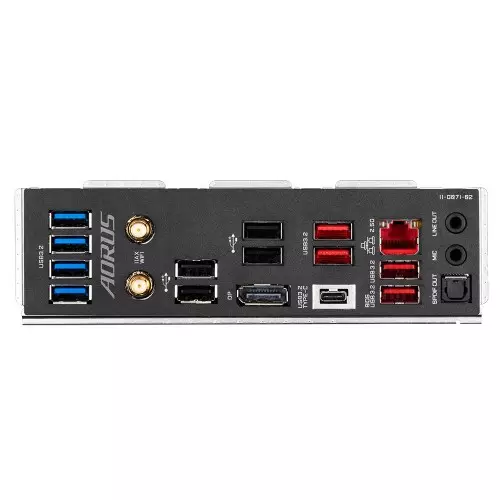

Gigabyte Z690 AORUS PRO 12th Gen ATX Motherboard - 3

Gigabyte Z690 AORUS PRO 12th Gen ATX Motherboard

0 Reviews
Stock : Out of Stock
PID : P0392506188
Brand : Gigabyte
Model : Z690 AORUS PRO
Warranty : 3 years
  • LGA1700 socket support 12th Gen Intel Series Processors
  • Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
  • 16+1+2 Direct Digital VRM Design
  • Intel WIFI 6 802.11ax 2T2R And BT5

Product Pricing

Discount Price

৳36,499 ৳37,000
+ Available Payment Method

EMI Start From*

৳1,285

SPECIFICATIONS

Processor

Supported CPU LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors
(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Mainboard

Chipset Intel Z690 Express Chipset
BIOS 1. 1 x 256 Mbit flash

2. Use of licensed AMI UEFI BIOS

3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory Support for DDR5 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules

4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage CPU:

1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2C_SB)

2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB/M2Q_SB)

6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10

* Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Intel Optane Memory Ready

* System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.

Graphics

Multi-GPU Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Graphics Integrated Graphics Processor-Intel HD Graphics support:

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

Networking & Connectivity

LAN Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
WiFi Intel Wi-Fi 6 AX200:

WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band

BLUETOOTH 5.2

Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Audio & Microphone

Audio 1. Realtek® ALC4080 CODEC

2. High Definition Audio

3.2-channel analogue output

4. Support for S/PDIF Out 7.1-channel digital signals

Ports

Slots 4 x DIMM
Internal I/O Ports 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

4 x system fan headers

2 x system fan/water cooling pump headers

2 x addressable LED strip headers

2 x RGB LED strip headers

4 x M.2 Socket 3 connectors

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C header, with USB 3.2 Gen 2x2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x noise detection header

2 x Thunderbolt add-in card connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x power button

1 x reset button

1 x Q-Flash Plus button

2 x temperature sensor headers

1 x reset jumper

1 x Clear CMOS jumper
USB Chipset:

2 x USB Type-C ports, with USB 3.2 Gen 2x2 support (1 port on the back panel,
1 port available through the internal USB header)

4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Others

Other Features Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

@BIOS

EasyTune

Fast Boot

Game Boost

ON/OFF Charge

RGB Fusion

Smart Backup

System Information Viewer

Support for Q-Flash Plus

Support for Q-Flash

Support for Xpress Install

Physical Specification

Form Factor ATX Form Factor; 30.5cm x 24.4cm

Warranty Information

Warranty 3 years

DESCRIPTION

Gigabyte Z690 AORUS PRO 12th Gen ATX Motherboard

The Gigabyte Z690 AORUS PRO 12th Gen ATX Motherboard is featured with 16+1+2 Direct Digital VRM Design with 90A Power Stage and Tantalum Polymer Capacitor, DDR5 XTREME MEMORY Design, Fins-Array III Heatsink, Direct-Touch Heatpipe II, NanoCarbon Baseplate, M.2 Thermal Guard III, 125dB ESS Sabre Audio, Intel WIFI 6E 802.11ax, AQUANTIA 10GbE LAN. It is supported with LGA1700 socket: Support for 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors. It comes with Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs. It has a DDR5 XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing. Advanced Thermal Solution with NanoCarbon Fins-Array III Heatsink, Direct-Touch Heatpipe II, and NanoCarbon Baseplate. It has Intel WIFI 6 802.11ax 2T2R & BT5 with AORUS Antenna. It has 4 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards. It features RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips. The Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, and Noise Detection. The Gigabyte Z690 AORUS PRO comes with 3 years of warranty.


[product_table id="34" limit="10" type="filter" filter_category="139"]

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the Gigabyte Z690 AORUS PRO 12th Gen ATX Motherboard Price in Bangladesh 2026 ?

The Gigabyte Z690 AORUS PRO Price in BD is 36,499৳ . This Gigabyte Z690 AORUS PRO 12th Gen ATX Motherboard Manufacturing by Gigabyte Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte Z690 AORUS PRO by 36,499৳ and its regular price is 37,000৳ Which is also Out of Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
