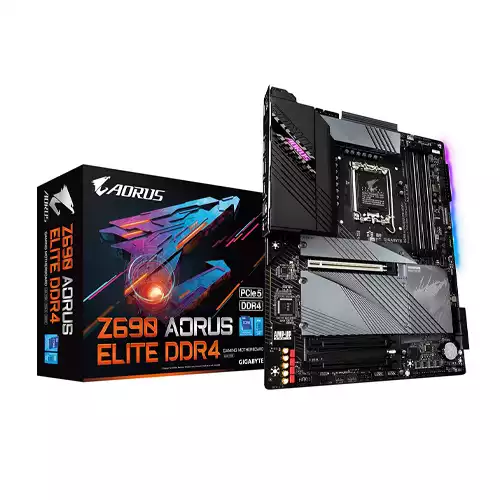

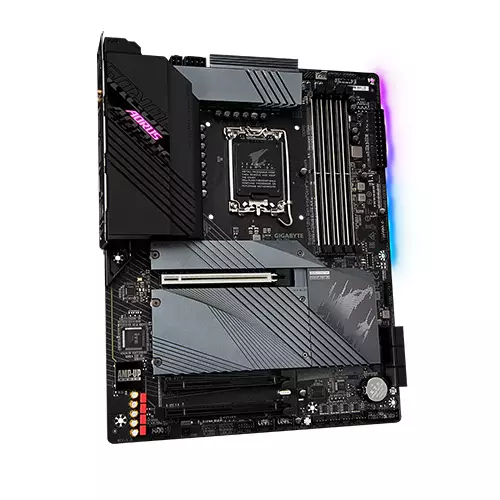

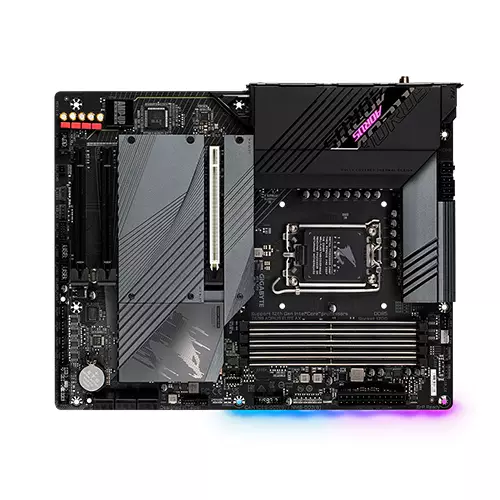

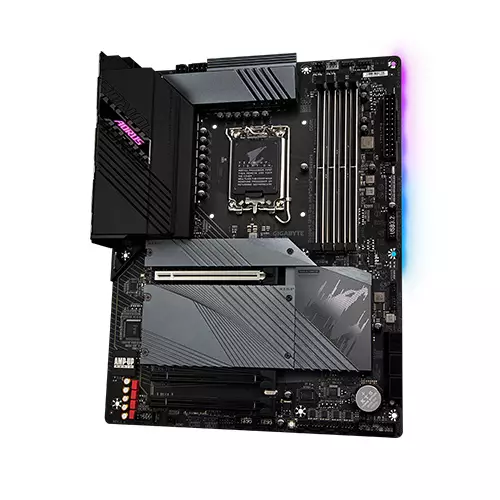

GIGABYTE Z690 AORUS ELITE DDR4 intel 12th Gen WIFI Motherboard
GIGABYTE Z690 AORUS ELITE DDR4 Motherboard
GIGABYTE Z690 AORUS ELITE DDR4 intel 12th Gen WIFI Motherboard comes with Supports 12th Gen Intel® Core™ Series Processors, Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs, Direct 16+1+2 Digital VRM Design with 70A Power Stage* and Tantalum Polymer Capacitor, Shielded Memory Routing to Avoid Interference, Fully Covered Thermal Design with High Coverage MOSFET Heatsinks, Onboard WIFI 6 802.11ax 2T2R & BT5 with AORUS Antenna, AMP-UP Audio with ALC1220 and WIMA Audio Capacitors, Fast 2.5GbE LAN with Bandwidth Management, 4x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal Guards SuperSpeed USB 3.2 Gen2x2 TYPE-C® delivers up to 20Gb/s transfer speeds, RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips, Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP, Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card.
[product_table id="34" limit="10" type="filter" filter_category="139"]
| Processor | |
| Supported CPU |
1. LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7
processors/Intel® Core™ i5 processors 2. L3 cache varies with CPU |
| Mainboard | |
| Chipset |
Intel® Z690 Express Chipset
|
| BIOS |
1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS 3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Memory | |
| Memory |
1. Support for DDR4 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory 3. Dual channel memory architecture 4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) 5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules 6. Support for Extreme Memory Profile (XMP) memory modules |
| Storage | |
| Supported Storage |
CPU:
1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 2. 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2Q_SB/M2P_SB) 3. 6 x SATA 6Gb/s connectors |
| Graphics | |
| Multi-GPU |
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
|
| Graphics |
Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 |
| Networking & Connectivity | |
| LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
|
| Audio & Microphone | |
| Audio |
1. Realtek® ALC1220-VB CODEC
The back panel line out jack supports DSD audio. 2. High Definition Audio 3. 2-channel analog output 4. Support for S/PDIF Out 5. 7.1-channel digital signals |
| Ports | |
| Slots |
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 2. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (The PCIEX4 slots conform to PCI Express 3.0 standard.) |
| Internal I/O Ports |
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector 3. 1 x 4-pin ATX 12V power connector 4. 1 x CPU fan header 5. 1 x water cooling CPU fan header 6. 3 x system fan headers 7. 1 x system fan/water cooling pump heade 8. 2 x addressable LED strip headers 9. 2 x RGB LED strip headers 10. 4 x M.2 Socket 3 connectors 11. 6 x SATA 6Gb/s connectors 12. 1 x front panel header 13. 1 x front panel audio header 14. 1 x USB Type-C® header, with USB 3.2 Gen 2 support 15. 1 x USB 3.2 Gen 1 header 16. 2 x USB 2.0/1.1 headers 17. 2 x Thunderbolt™ add-in card connectors 18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 19. 1 x reset button 20. 1 x Q-Flash Plus button 21. 1 x reset jumper 22. 1 x Clear CMOS jumper |
| USB |
1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
2. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 3. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hub: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| HDMI |
1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
2. Support for HDMI 2.1 version and HDCP 2.3. 3. Support native HDMI 2.1 TMDS compatible ports |
| Others | |
| Other Features |

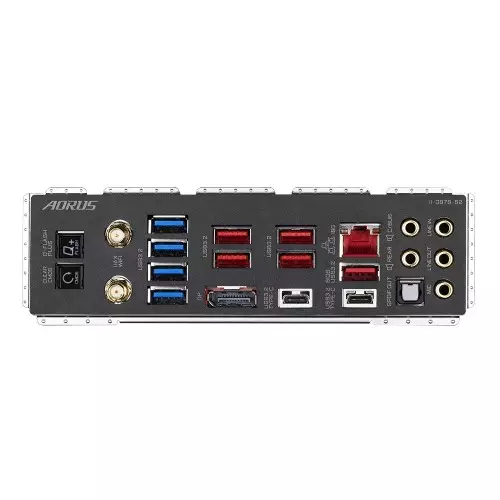

Back Panel Connectors:
1. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 2. 2 x USB 3.2 Gen 2 Type-A ports (red) 3. 3 x USB 3.2 Gen 1 ports 4. 4 x USB 2.0/1.1 ports 5. 2 x SMA antenna connectors (2T2R) 6. 1 x HDMI port 7. 1 x DisplayPort 8. 1 x RJ-45 port 9. 1 x optical S/PDIF Out connector 10. 2 x audio jacks |
| Physical Specification | |
| Form Factor |
1. ATX Form Factor; 30.5cm x 24.4cm
|
| Warranty Information | |
| Warranty |
3 years
|
