| product price | 37,500৳ |
| special price | 32,600৳ |
| Stock Status | In Stock |
| Product ID | 22244 |
| Product SKU | GBIT-Z690-Arus-Elit-AX |
| Brand | Gigabyte |
| Product model | Z690 Aorus Elite AX |
| Warranty | 3 years |
| Total Reviews | Based on 0 reviews. - Write a review |
| Processor | |
| Supported CPU | 1. LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors 2. L3 cache varies with CPU |
| Mainboard | |
| Chipset | 1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support 2. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 3. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) |
| Memory | |
| Memory | 1. Support for DDR5 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules 2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory 3. Dual channel memory architecture 4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) 5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules 6. Support for Extreme Memory Profile (XMP) memory modules |
| Storage | |
| Supported Storage | CPU: 1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 2. 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2Q_SB/M2P_SB) 3. 6 x SATA 6Gb/s connectors |
| Graphics | |
| Multi-GPU | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
| Graphics | 1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
| Audio & Microphone | |
| Audio | 1. Realtek® ALC1220-VB CODEC The back panel line out jack supports DSD audio. 2. High Definition Audio 3. 2-channel analog output 4. Support for S/PDIF Out 5. 7.1-channel digital signals |
| Networking & Connectivity | |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| WiFi | 1. WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band 2. BLUETOOTH 5.2 3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Actual data rate may vary depending on environment and equipment. |
| Ports | |
| Slots | 1. 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 2. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (The PCIEX4 slots conform to PCI Express 3.0 standard.) |
| Internal I/O Ports | 1. 1 x 24-pin ATX main power connector 2. 1 x 8-pin ATX 12V power connector 3. 1 x 4-pin ATX 12V power connector 4. 1 x CPU fan header 5. 1 x water cooling CPU fan header 6. 3 x system fan headers 7. 1 x system fan/water cooling pump heade 8. 2 x addressable LED strip headers 9. 2 x RGB LED strip headers 10. 4 x M.2 Socket 3 connectors 11. 6 x SATA 6Gb/s connectors 12. 1 x front panel header 13. 1 x front panel audio header 14. 1 x USB Type-C® header, with USB 3.2 Gen 2 support 15. 1 x USB 3.2 Gen 1 header 16. 2 x USB 2.0/1.1 headers 17. 2 x Thunderbolt™ add-in card connectors 18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 19. 1 x reset button 20. 1 x Q-Flash Plus button 21. 1 x reset jumper 22. 1 x Clear CMOS jumper |
| USB | 1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support 2. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 3. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) |
| HDMI | 1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 2. Support for HDMI 2.1 version and HDCP 2.3. 3. Support native HDMI 2.1 TMDS compatible ports |
| Technical Info | |
| BIOS | 1. 1 x 256 Mbit flash 2. Use of licensed AMI UEFI BIOS 3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Physical Specification | |
| Form Factor | 1. ATX Form Factor; 30.5cm x 24.4cm |
| Others | |

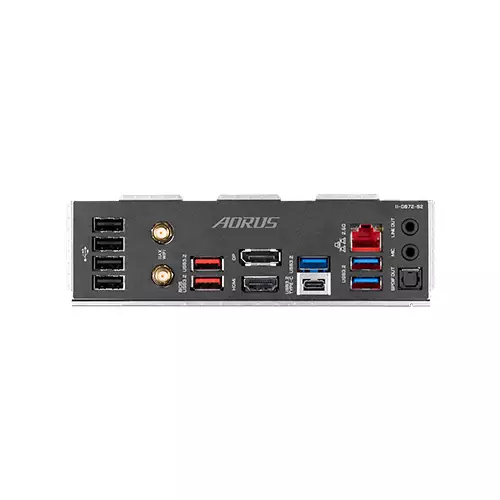

| Other Features | Back Panel Connectors: 1. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 2. 2 x USB 3.2 Gen 2 Type-A ports (red) 3. 3 x USB 3.2 Gen 1 ports 4. 4 x USB 2.0/1.1 ports 5. 2 x SMA antenna connectors (2T2R) 6. 1 x HDMI port 7. 1 x DisplayPort 8. 1 x RJ-45 port 9. 1 x optical S/PDIF Out connector 10. 2 x audio jacks |
| Warranty Information | |
| Warranty | 3 years |

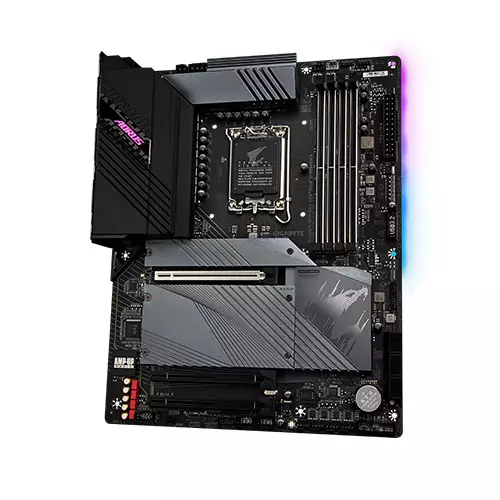

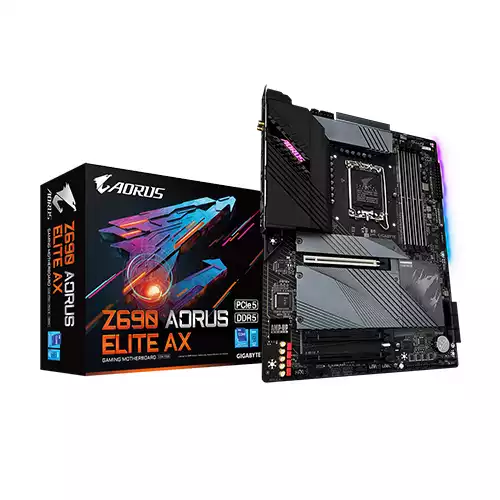

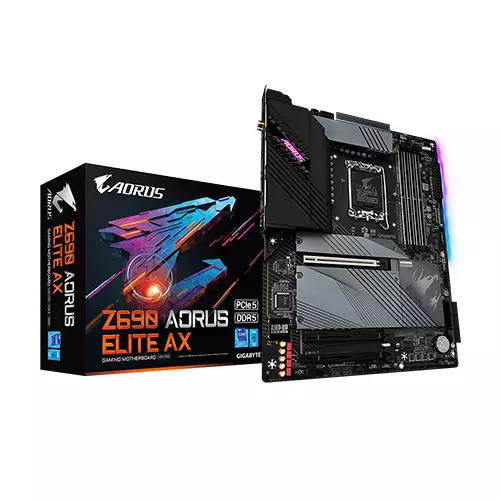

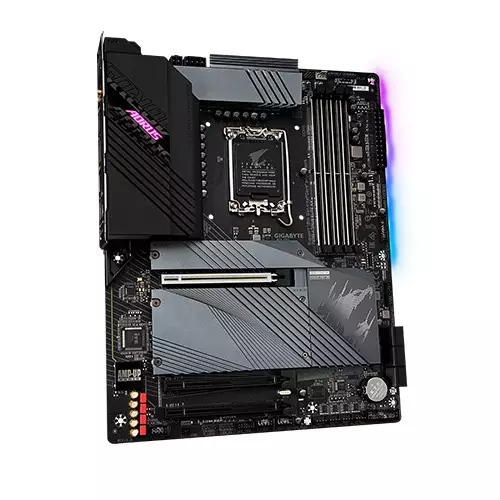

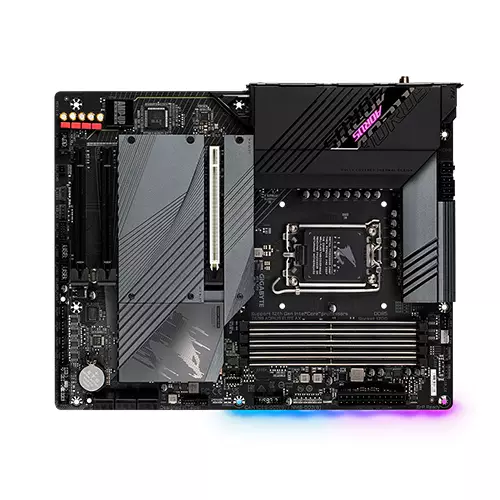

GIGABYTE Z690 Aorus Elite AX Motherboard
GIGABYTE Z690 Aorus Elite AX Motherboard comes with Intel LGA 1700 Socket: Supports 12th Gen Intel Core Series Processors, DDR4 Compatible: Dual Channel Non-ECC Unbuffered DDR4 Commanding Power Design: 16+1+2 Digital VRM Design with 70A Power Stage with Tantalum Polymer Capacitors Cutting-Edge Thermal Design: Fully Covered Thermal Design and High Coverage MOSFET Heatsinks, Enlarged Thermal Guards Next Gen Connectivity: PCIe 5.0. Quad NVMe PCIe 4.0 x4 M.2, SuperSpeed USB 3.2 Gen 2x2 Type-C Fast Networking: 2.5 GbE LAN, WiFi 6 802.11ax, BT5 AMP-UP Audio with ALC1220 and WIMA Audio Capacitors Fine-Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q Flash Plus Update BIOS without installing CPU, Memory, and GPU Dedicated LGA1700 mounting bracket is required. GIGABYTE Z690 Aorus Elite AX Motherboard with 3 years of warranty.
