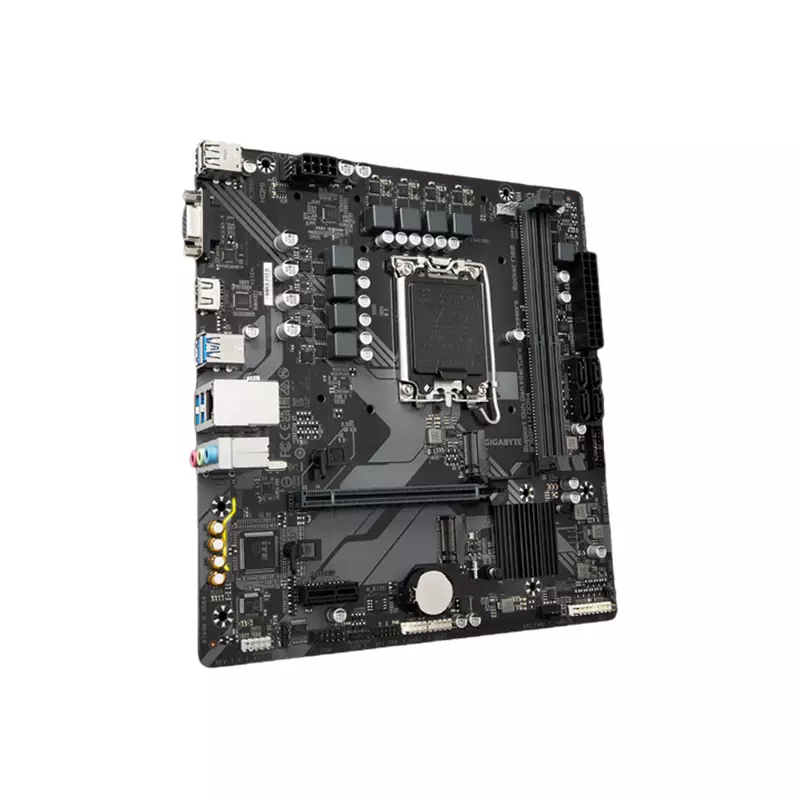

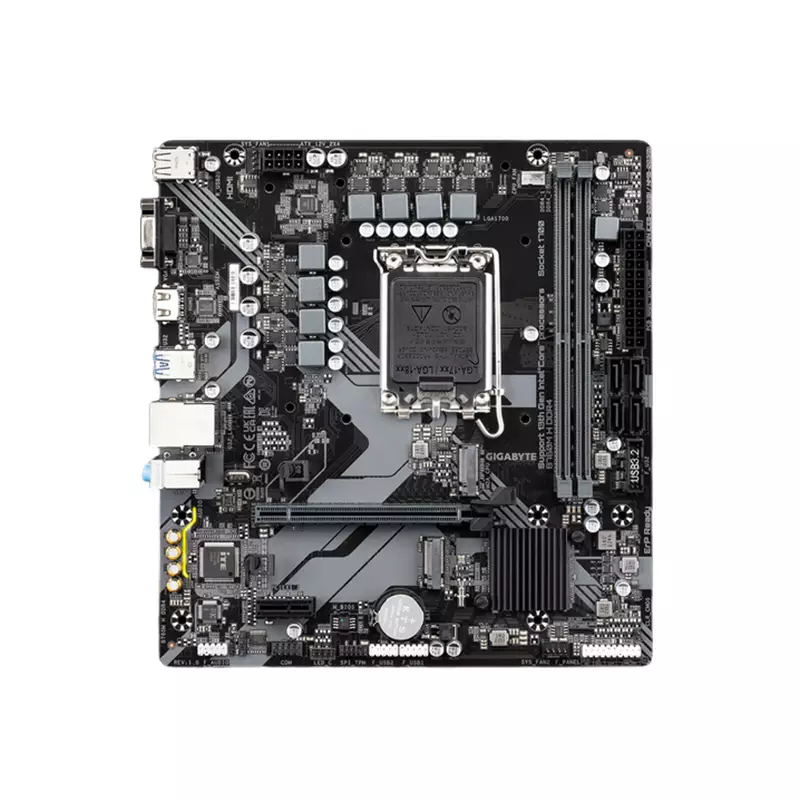

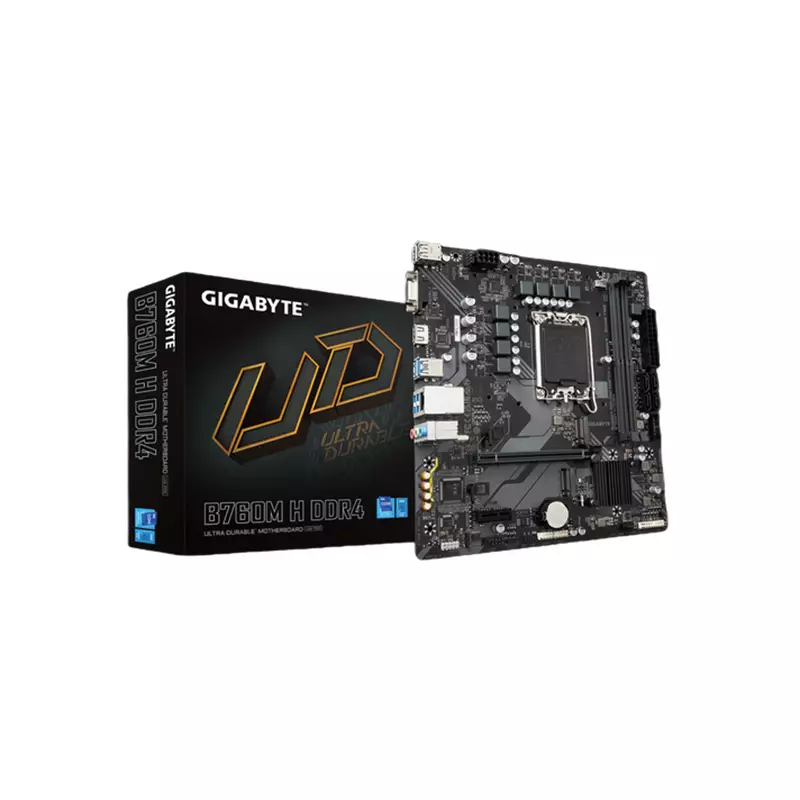

GIGABYTE B760M H DDR4 INTEL MOTHERBOARD
GIGABYTE B760M H DDR4 INTEL MOTHERBOARD
GIGABYTE B760M H DDR4 INTEL MOTHERBOARD - 1
GIGABYTE B760M H DDR4 INTEL MOTHERBOARD - 2
GIGABYTE B760M H DDR4 INTEL MOTHERBOARD - 3

GIGABYTE B760M H DDR4 INTEL MOTHERBOARD

0 Reviews
Stock : In Stock
PID : P0392506314
Brand : Gigabyte
Model : B760M H
Warranty : 3 Years
  • GbE LAN Networks
  • HDMI, D-Sub Connectivity
  • PCIe 4.0x16 Slot with Quick Release Design
  • Support 13th and 12th Gen Series Processors

Product Pricing

Discount Price

৳14,200 ৳14,700
+ Available Payment Method

EMI Start From*

৳500

SPECIFICATIONS

Processor

Supported CPU LGA1700 socket: Support for the 13th and 12thGeneration Intel® Core™, Pentium® Gold and Celeron® Processors

L3 cache varies with CPU

Mainboard

Chipset Intel® B760 Express Chipset
BIOS 1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules

2 x DDR4 DIMM sockets supporting up to 64GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

4 x SATA 6Gb/s connectors



RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Graphics

Graphics Integrated Graphics Processor-Intel® HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Networking & Connectivity

LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps)

Audio & Microphone

Audio Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

Ports

Slots CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16



Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Internal I/O Ports 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

2 x system fan headers

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header

1 x serial port header

1 x Clear CMOS jumper

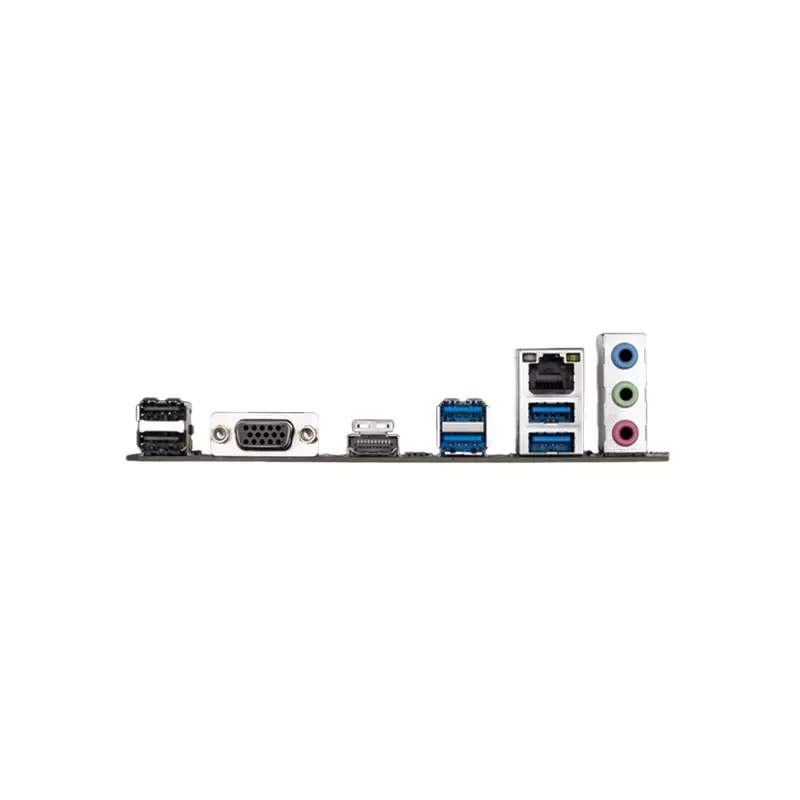

USB 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Software

Software Features Norton® Internet Security (OEM version)

LAN bandwidth management software

Special Features

Special Features Support for GIGABYTE Control Center (GCC)

Physical Specification

Form Factor Micro ATX Form Factor; 23.0cm x 21.5cm

Warranty Information

Warranty 3 Years

DESCRIPTION

GIGABYTE B760M H DDR4 INTEL MOTHERBOARD PRICE IN BD

The GIGABYTE B760M H DDR4 Intel Motherboard, your ultimate solution for high-performance computing and seamless multitasking. This cutting-edge micro ATX motherboard, available at Techland BD, is designed to accommodate 13th and 12th Gen Series Intel processors, delivering unparalleled performance for both gamers and content creators. Powered by a Hybrid 6+1+1 Phases Digital VRM Solution, the GIGABYTE B760M H ensures stable power delivery to your CPU, enhancing overall system efficiency and performance. The motherboard supports Dual Channel DDR4 with XMP memory modules, allowing you to maximize memory speeds up to 3200 MT/s, ensuring smooth and lag-free operations even under heavy workloads. Connectivity options abound with HDMI and D-Sub ports, offering extended display possibilities for high-resolution visuals. Additionally, the GIGABYTE B760M H features GbE LAN for fast and stable network connections, essential for online gaming and large file transfers. Temperature management is taken to the next level with Smart Fan 6, featuring multiple temperature sensors and hybrid fan headers with FAN STOP technology, keeping your system cool and quiet during operation. With its compact micro ATX form factor and support for Windows 11 64-bit and Windows 10 64-bit operating systems, the GIGABYTE B760M H offers a perfect balance of performance and compatibility for your computing needs. Whether you are an avid gamer, a content creator, or a tech enthusiast, the GIGABYTE B760M H DDR4 Intel Motherboard delivers a powerful, feature-packed platform that meets the demands of modern computing. Upgrade your system with this exceptional motherboard available at Techland BD and experience the future of computing power today!

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the GIGABYTE B760M H DDR4 INTEL MOTHERBOARD Price in Bangladesh 2026 ?

The Gigabyte B760M H Price in BD is 14,200৳ . This GIGABYTE B760M H DDR4 INTEL MOTHERBOARD Manufacturing by Gigabyte Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte B760M H by 14,200৳ and its regular price is 14,700৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
