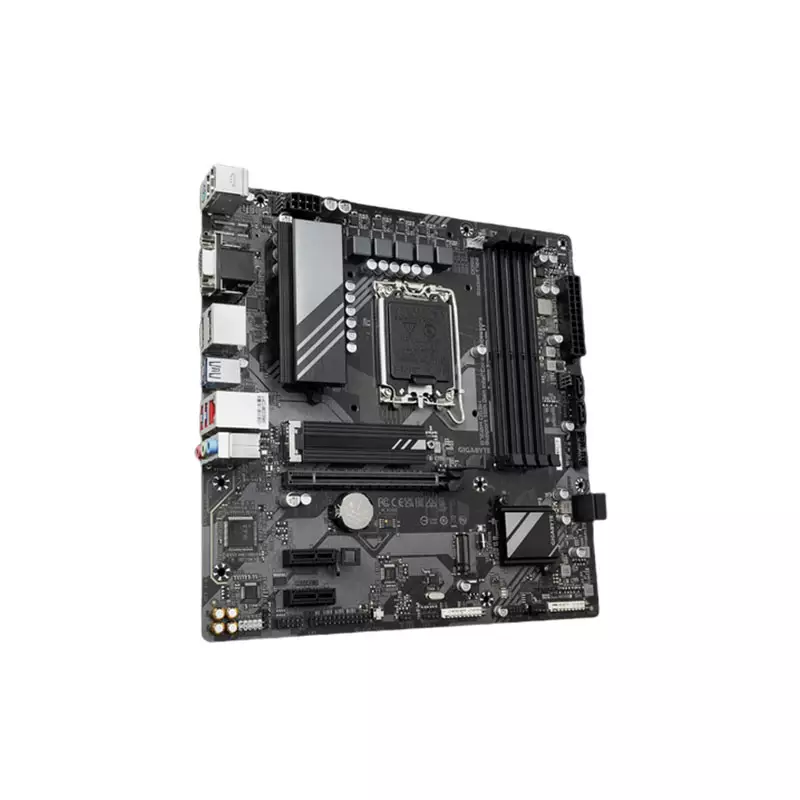

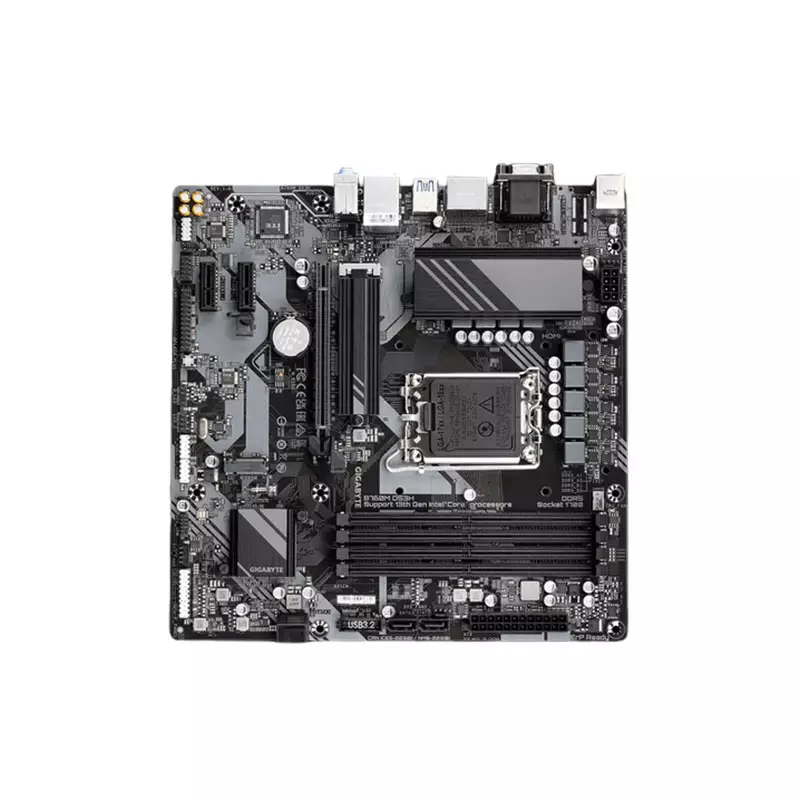

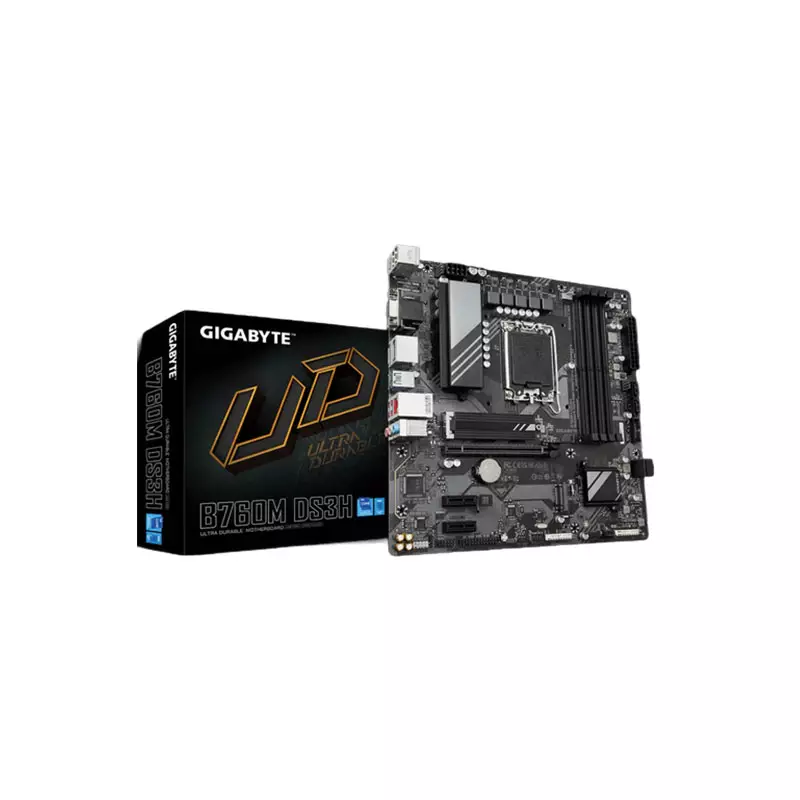

GIGABYTE B760M DS3H DDR4 13/12TH GEN INTEL ATX MOTHERBOARD
GIGABYTE B760M DS3H DDR4 13/12TH GEN INTEL ATX MOTHERBOARD
GIGABYTE B760M DS3H DDR4 13/12TH GEN INTEL ATX MOTHERBOARD - 1
GIGABYTE B760M DS3H DDR4 13/12TH GEN INTEL ATX MOTHERBOARD - 2
GIGABYTE B760M DS3H DDR4 13/12TH GEN INTEL ATX MOTHERBOARD - 3

GIGABYTE B760M DS3H DDR4 13/12TH GEN INTEL ATX MOTHERBOARD

0 Reviews
Stock : Out of Stock
PID : P0392506310
Brand : Gigabyte
Model : B760M DS3H DDR4
Warranty : 3 Years
  • Features: Realtek 2.5GbE LAN chip
  • Graphics Output: 1x HDMI, 1x DisplayPort
  • Supported RAM: 4x DDR4, Max 128GB 5333(OC)
  • Supported CPU: 12th/13th Gen Intel Processors (LGA1700)

Product Pricing

Discount Price

৳16,600 ৳19,000
+ Available Payment Method

EMI Start From*

৳585

SPECIFICATIONS

Mainboard

Chipset LGA1700 socket: Support for the 13th and 12th Generation Intel Core,

Pentium Gold and Celeron Processors

L3 cache varies with the CPU
BIOS 1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/
4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/
3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB), 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Graphics

Graphics Integrated Graphics Processor-Intel HD Graphics support:

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

Networking & Connectivity

LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

1 x RJ-45 port

Audio & Microphone

Audio Realtek Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

Ports

Slots 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Internal I/O Ports 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

3 x system fan headers

1 x addressable LED strip header

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header

1 x serial port header

1 x parallel port header

1 x S/PDIF Out header

1 x Q-Flash Plus button

1 x reset jumper

1 x Clear CMOS jumper

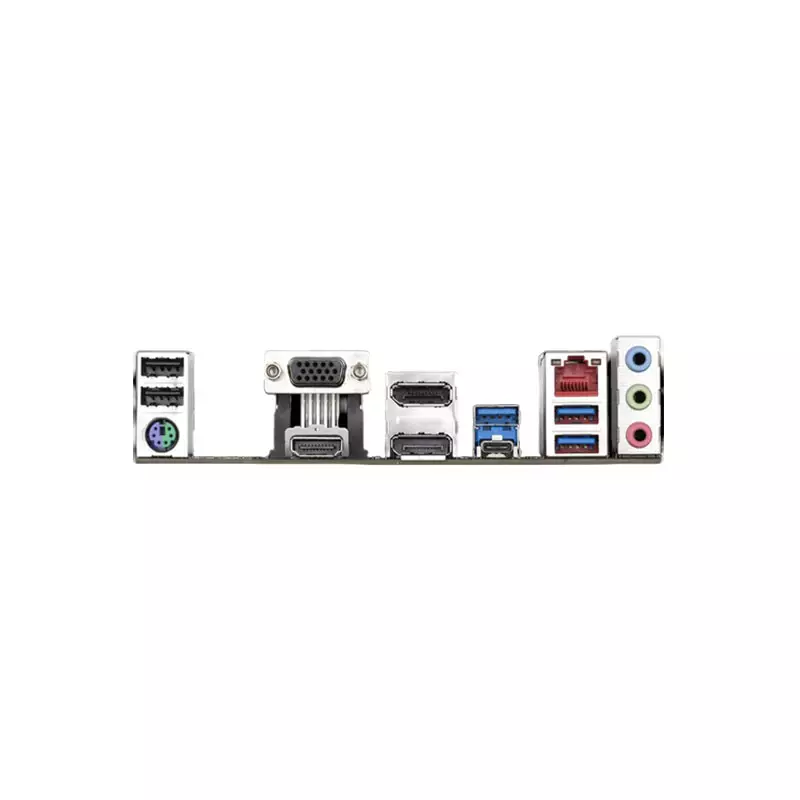

USB Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support, 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header), 2 x USB 2.0/1.1 ports on the back panel

Chipset+2 USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers

Software

Software Features Norton® Internet Security (OEM version)

LAN bandwidth management software

Physical Specification

Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm

Warranty Information

Warranty 3 Years

DESCRIPTION

BEST GIGABYTE B760M DS3H MOTHERBOARD PRICE IN BD

The GIGABYTE B760M DS3H DDR4 13/12th Gen Intel MATX Motherboard is a high-performance motherboard designed to support the latest 13th and 12th Generation Intel processors. With its LGA1700 socket, it provides excellent compatibility and power for your computing needs. This motherboard supports up to 128GB of DDR4 RAM across four DIMM slots, allowing for smooth multitasking and efficient performance. The dual-channel memory architecture ensures optimal data transfer speeds. The motherboard also supports Extreme Memory Profile (XMP) memory modules, allowing for easy overclocking and enhanced system performance. Equipped with integrated Intel HD Graphics, this motherboard offers multiple graphics output options, including HDMI and DisplayPort, supporting resolutions up to 4096x2160@60 Hz. It also supports quad-display setups, making it suitable for gaming, multimedia, and productivity tasks. With expansion slots such as the PCI Express x16 slot and PCI Express x1 slots, this motherboard offers ample connectivity options for additional devices. It also features storage interfaces, including M.2 connectors and SATA 6Gb/s connectors with support for RAID configurations, providing flexible storage solutions. The GIGABYTE B760M DS3H DDR4 motherboard offers convenient connectivity options with USB Type-C ports, USB 3.2 Gen 1 ports, and USB 2.0/1.1 ports. The Micro ATX form factor ensures compatibility with a wide range of computer cases. Overall, the GIGABYTE B760M DS3H DDR4 13/12th Gen Intel MATX Motherboard delivers powerful performance, robust connectivity options, and advanced features, making it an ideal choice for gamers, content creators, and PC enthusiasts.

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the GIGABYTE B760M DS3H DDR4 13/12TH GEN INTEL ATX MOTHERBOARD Price in Bangladesh 2026 ?

The Gigabyte B760M DS3H DDR4 Price in BD is 16,600৳ . This GIGABYTE B760M DS3H DDR4 13/12TH GEN INTEL ATX MOTHERBOARD Manufacturing by Gigabyte Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte B760M DS3H DDR4 by 16,600৳ and its regular price is 19,000৳ Which is also Out of Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
