Save: ৳1,300

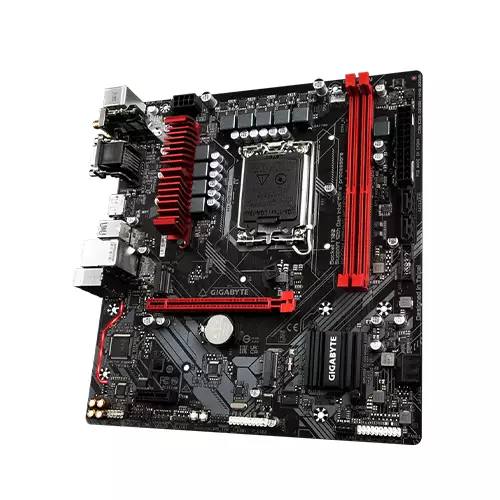

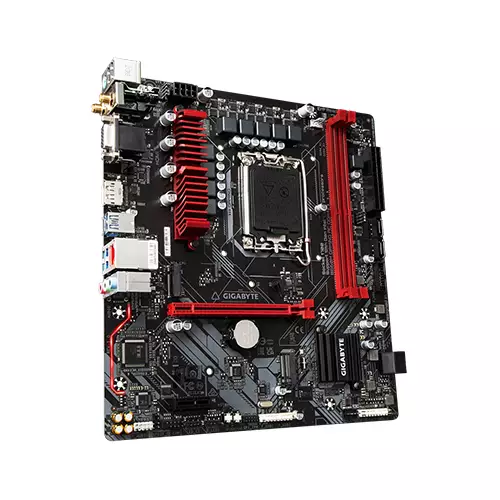

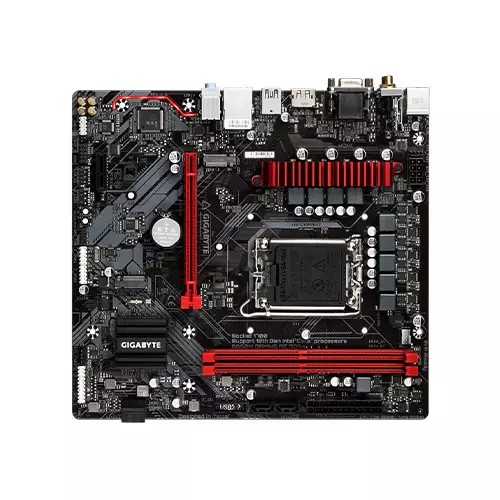

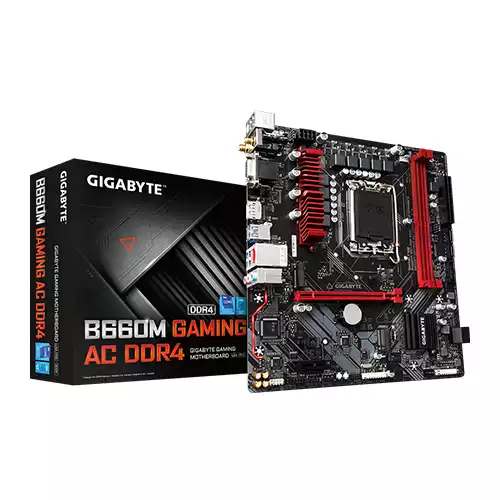

GIGABYTE B660M GAMING AC DDR4 12TH GEN INTEL MICRO ATX MOTHERBOARD
GIGABYTE B660M GAMING AC DDR4 12TH GEN INTEL MICRO ATX MOTHERBOARD
GIGABYTE B660M GAMING AC DDR4 12TH GEN INTEL MICRO ATX MOTHERBOARD - 1
GIGABYTE B660M GAMING AC DDR4 12TH GEN INTEL MICRO ATX MOTHERBOARD - 2
GIGABYTE B660M GAMING AC DDR4 12TH GEN INTEL MICRO ATX MOTHERBOARD - 3

GIGABYTE B660M GAMING AC DDR4 12TH GEN INTEL MICRO ATX MOTHERBOARD

0 Reviews
Stock : Out of Stock
PID : P0392506211
Brand : Gigabyte
Model : B660M GAMING AC
Warranty : 3 years
  • Supports 12th Gen Intel Core Series ​​
  • Dual Channel Non-ECC Unbuffered DDR4
  • WIFI 802.11ac & BT with AERO Antenna​​
  • Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2​

Product Pricing

Discount Price

৳14,400 ৳15,700
+ Available Payment Method

EMI Start From*

৳507

SPECIFICATIONS

Processor

Supported CPU LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and
Celeron® Processors*

L3 cache varies with CPU

Mainboard

Chipset Intel B660 Express Chipset
BIOS 1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4
5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/
4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) /
3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) /
3200/3000/2933/2666/2400/2133 MHz memory modules

2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of
system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-
ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

4 x SATA 6Gb/s connectors

1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Graphics

Graphics 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support native HDMI 2.1 TMDS compatible ports.

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

Networking & Connectivity

LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
WiFi WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
Bluetooth BLUETOOTH 4.2

Audio & Microphone

Audio Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* To configure 7.1-channel audio, you need to open the audio software and select
Device advanced settings > Playback Device to change the default setting first.

Ports

Slots 1 x PCI Express x16 slot, running at x16

(The PCIEX16 slot conforms to PCI Express 4.0 standard.)
1 x PCI Express x1 slot

(The PCIEX1 slot conforms to PCI Express 3.0 standard.)
Internal I/O Ports 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

4 x SATA 6Gb/s connectors
External I/O Ports 2 x USB 2.0/1.1 ports

1 x PS/2 keyboard/mouse port

2 x SMA antenna connectors (1T1R)

1 x D-Sub port

1 x HDMI port

1 x DisplayPort

3 x USB 3.2 Gen 1 ports

1 x USB Type-C® port, with USB 3.2 Gen 1 support

1 x RJ-45 port

3 x audio jacks
USB 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support

5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

2 x USB 2.0/1.1 ports on the back panel

Chipset+2 USB 2.0 Hubs:

4 x USB 2.0/1.1 ports available through the internal USB headers

Physical Specification

Form Factor Micro ATX Form Factor
Dimension 24.4cm x 22.5cm

Warranty Information

Warranty 03 years

DESCRIPTION

Gigabyte B660M GAMING AC DDR4 Motherboard in Bangladesh

Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.

  • 6+2+1 Phases Low RDS(on) MOSFETs
  • Solid capacitors to improve transient response and minimize oscillation
  • 8-pin Solid Pin CPU Power Connector

With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.

Q-Flash Plus

Update the BIOS easily without installing the CPU, memory and graphics card.

With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

Features :

  • Supports 12th Gen Intel® Core™ Series Processors​​
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • 6+2+1 Phases Hybrid Digital VRM with MOS Heatsink​
  • Fast 2.5 GbE GAMING LAN with Bandwidth Management​​
  • WIFI 802.11ac & BT with AERO Antenna​​
  • Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2​
  • Rear SuperSpeed USB 3.2 Gen 1 TYPE-C® for Fast and Versatile Connections​​
  • High Quality Audio Capacitors and Audio Noise Guard​
  • RGB FUSION 2.0 supports Addressable LED & RGB LED Strips​​
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP​​
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card​​

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the GIGABYTE B660M GAMING AC DDR4 12TH GEN INTEL MICRO ATX MOTHERBOARD Price in Bangladesh 2026 ?

The Gigabyte B660M GAMING AC Price in BD is 14,400৳ . This GIGABYTE B660M GAMING AC DDR4 12TH GEN INTEL MICRO ATX MOTHERBOARD Manufacturing by Gigabyte Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte B660M GAMING AC by 14,400৳ and its regular price is 15,700৳ Which is also Out of Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
