GIGABYTE B660M AORUS PRO AX DDR5 MICRO ATX 12TH GEN INTEL MOTHERBOARD

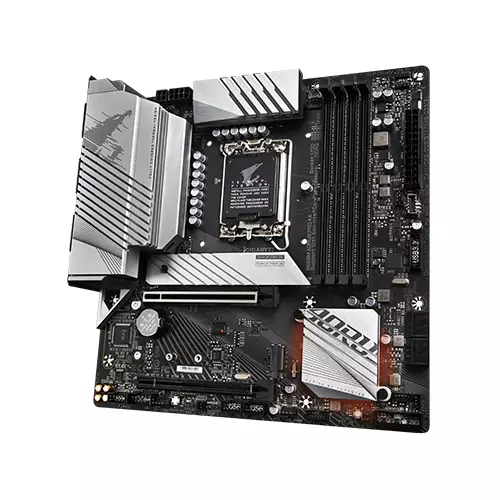

GIGABYTE B660M AORUS PRO AX DDR5 MICRO ATX 12TH GEN INTEL MOTHERBOARD

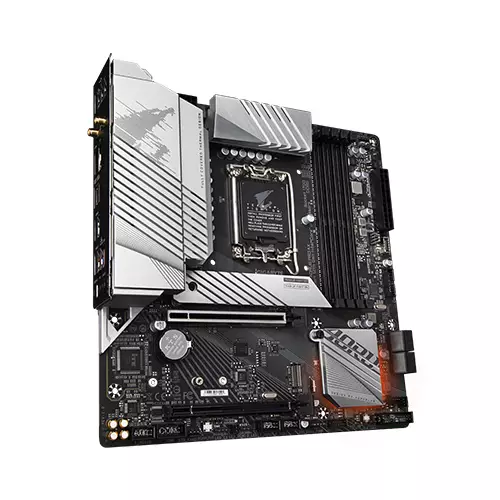

GIGABYTE B660M AORUS PRO AX DDR5 MICRO ATX 12TH GEN INTEL MOTHERBOARD - 2

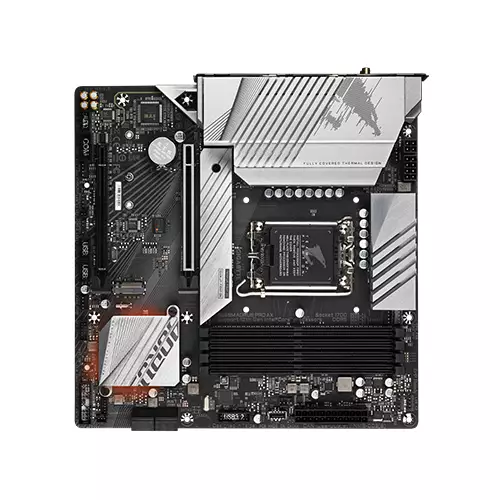

GIGABYTE B660M AORUS PRO AX DDR5 MICRO ATX 12TH GEN INTEL MOTHERBOARD - 3
GIGABYTE B660M AORUS PRO AX DDR5 MICRO ATX 12TH GEN INTEL MOTHERBOARD - 4
GIGABYTE B660M AORUS PRO AX DDR5 MICRO ATX 12TH GEN INTEL MOTHERBOARD - 5

GIGABYTE B660M AORUS PRO AX DDR5 MICRO ATX 12TH GEN INTEL MOTHERBOARD

0 Reviews
Stock : Out of Stock
PID : P0392506201
Brand : Gigabyte
Model : B660M AORUS PRO AX
  • Supported CPU: LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Proce...
  • Memory: Support for DDR5 5600(O.C.) / 5400(O.C.) / 5200(O.C.) /4800/4000 MHz memory modules 4 x DD...
  • Supported Storage: CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_C...
  • LAN: Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Product Pricing

Discount Price

৳20,300 ৳20,500
+ Available Payment Method

EMI Start From*

৳715

SPECIFICATIONS

Processor

Supported CPU LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*

L3 cache varies with CPU

Mainboard

Chipset Intel B660 Express Chipset
BIOS 1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory Support for DDR5 5600(O.C.) / 5400(O.C.) / 5200(O.C.) /4800/4000 MHz memory modules

4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support)
(M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

4 x SATA 6Gb/s connectors

Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10

Intel® Optane Memory Ready

Graphics

Multi-GPU Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Graphics Integrated Graphics Processor-Intel® HD Graphics support:

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support native HDMI 2.1 TMDS compatible ports

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

Networking & Connectivity

LAN Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
WiFi WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band

BLUETOOTH 5.2

Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

* Actual data rate may vary depending on environment and equipment.

Audio & Microphone

Audio Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* To configure 7.1-channel audio, you need to open the audio software and select
Device advanced settings > Playback Device to change the default setting first.
Please visit GIGABYTE's website for details on configuring the audio software.

Support for S/PDIF Out

Ports

Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

(The PCIEX16 slot conforms to PCI Express 4.0 standard.)

1 x PCI Express x16 slot, running at x4 (PCIEX4)

(The PCIEX4 slot conforms to PCI Express 3.0 standard.)
Internal I/O Ports 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

3 x system fan headers

1 x system fan/water cooling pump header

2 x addressable LED strip headers

2 x RGB LED strip headers

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

2 x Thunderbolt™ add-in card connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0
module only)

1 x serial port header

1 x reset button

1 x Q-Flash Plus button

1 x reset jumper

1 x Clear CMOS jumper

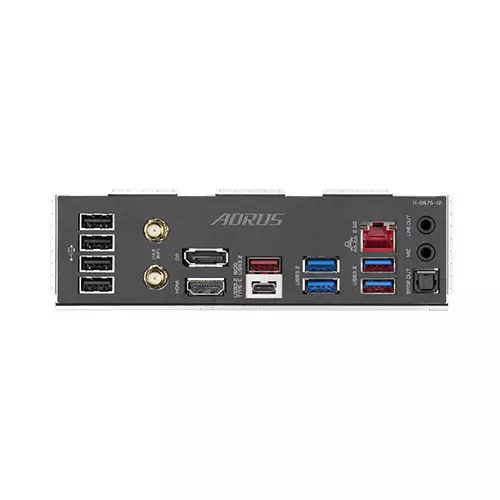

External I/O Ports 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support

1 x USB 3.2 Gen 2 Type-A port (red)

4 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

2 x SMA antenna connectors (2T2R)

1 x HDMI port

1 x DisplayPort

1 x RJ-45 port

1 x optical S/PDIF Out connector

2 x audio jacks
USB 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support

1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header

1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Physical Specification

Form Factor Micro ATX Form Factor
Dimension 24.4cm x 24.4cm

Warranty Information

Warranty 3 years

DESCRIPTION

Gigabyte B660M AORUS PRO AX Motherboard Overview

Rule supreme with the B660 AORUS gaming motherboards. The new king of gaming platform continues the legendary AORUS bloodline with the most robust power delivery and dominant thermal design, glorified with the complete memory overclocking technology to crown your PC with the best Alder Lake's performance in all its gaming glory.

B660M AORUS PRO AX PERFORMANCE UNLEASHED

Rule supreme with the B660 AORUS gaming motherboards. The new king of gaming platform continues the legendary AORUS bloodline with the most robust power delivery and dominant thermal design, glorified with the complete memory overclocking technology to crown your PC with the best Alder Lake's performance in all its gaming glory.

XTREME MEMORY

GIGABYTE B660 Motherboards feature the latest DDR5 architecture and XMP 3.0 capability. The new DDR5 memory technology brings 50% more bandwidth to the platform and increases the system performance drastically by implementing Unlocked Native DDR5 Voltage, Xtreme Memory Routing. In addition to the hardware upgrades, the user friendly UI provides full functionality to overclock higher with exclusive DDR5 tuning capability.

ADVANCED THERMAL SOLUTION

GIGABYTE B660 Series Motherboards' Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming

ADVANCED THERMAL SOLUTION

GIGABYTE B660 Series Motherboards' Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming

PERSONALIZATION

GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

ULTRA DURABLE

GIGABYTE Ultra Durable™ features its product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.

Features :

  • Supports 12th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
  • 12*+1+1 Twin Hybrid Digital VRM Design with 60A DrMOS
  • DDR5 MEMORY Design with Shielded Memory Routing
  • Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
  • WIFI6 802.11ax 2T2R & BT5 with AORUS Antenna
  • Blazing Fast Intel® 2.5GbE LAN with Bandwidth Management
  • Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guard
  • SuperSpeed USB 3.2 Gen 2x2 Type-C® delivers up to 20Gb/s transfer speeds
  • Pre-installed IO Shield for easy and quick installation
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
