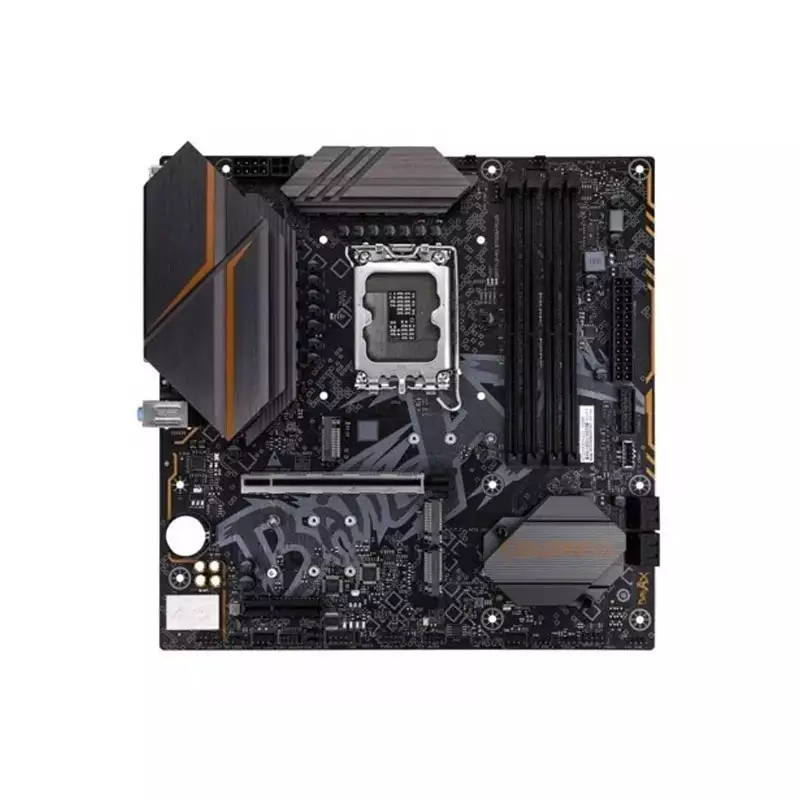

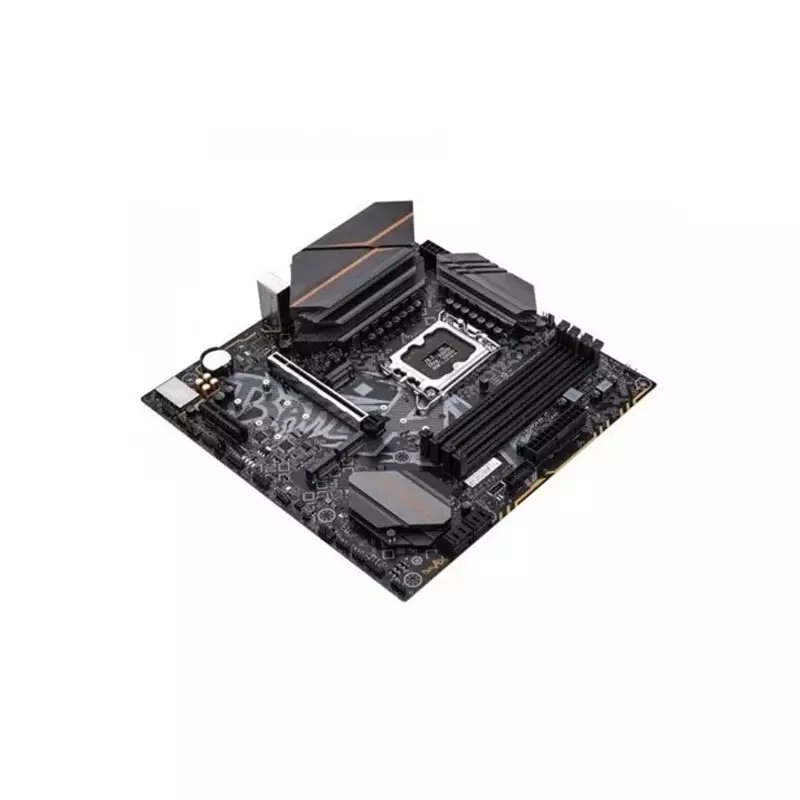

COLORFUL BATTLE-AX B760M-PLUS V20 12TH AND 13TH GEN INTEL MOTHERBOARD
- Support 13th and 12th gen
- RTL8125 2.5Gbit network card
- 5.1 Channel sound card
- LGA 1700 slot
Product Pricing
EMI Start From*
SPECIFICATIONS
Processor
to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® Processor
Memory
can support up to 128 GB of memory (a single socket can support up to 32 GB of memory)
- DDR4-4800 (OC)/4600 (OC)/4400 (OC)/4266
(OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466
(OC)/3200/3000/2933/2800
/2666/2400/2133MHz memory
- Intel is supported ® Extreme Memory Profile
(XMP) memory technology
- supports dual channel memory technology
Networking & Connectivity
Audio & Microphone

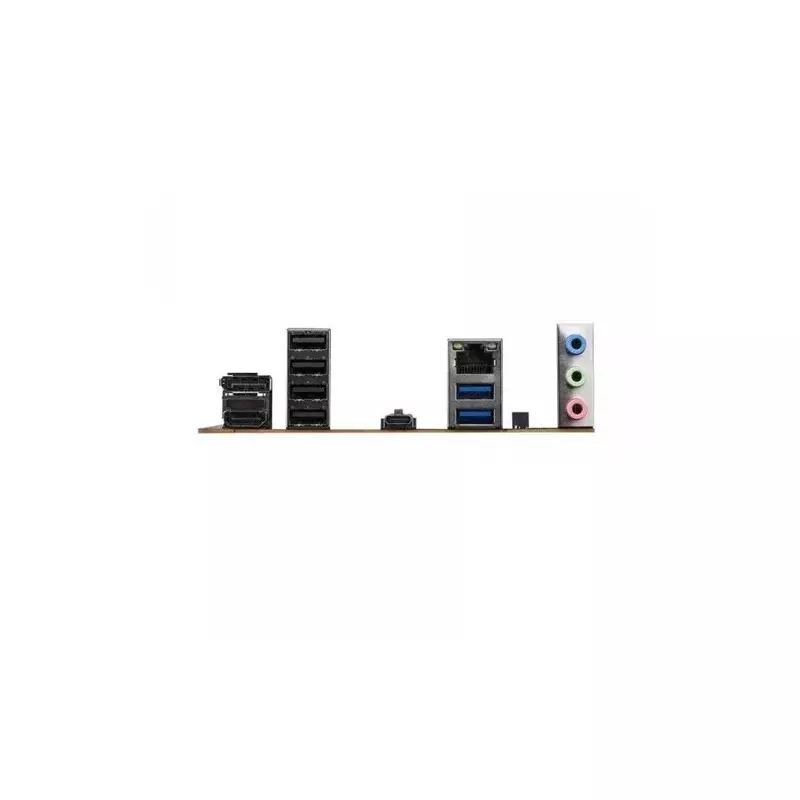

Ports
- 2×USB 3.2 Gen 1 Type-A interfaces
- 1×USB 3.2 Gen 2 Type-C interface
- 1×DP 1.2 interface, supporting up to 4K 60Hz resolution
- 1×HDMI 2.0 interface, Up to 4K 60Hz resolution
- 1×2.5G network interface
- 3×audio interfaces (audio input/audio output/microphone)
On board device interface:
- 1×CPU fan pin
- 3 system fan pins
- 1×water-cooled pump pin
- 1×USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces
- 1×USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces
- 1×USB 3.2 Gen 1 Type-C slot can expand 1 USB
3.2 Gen 1 Type-C interface
- 2×5V 3-pin ARGB pins
- 2×12V 4-pin RGB pin
- 1×Front audio pin
- 1×front panel pin
- 1×speaker pin
- 1×clear CMOS jumper
- 1×COM port pin
- 1×BIOS burner pin
- 1×POST card pin
- 1×ME write protection jumper
- 1×RGB lamp effect control jumper
using SATA hard disk devices
- M.2_ 1 slot: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, CPU channel)
- M.2_ 2 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel)
- M.2_ 3 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel)
(* See the official BIOS user guide of Colorful for the steps to create a RAID disk array)
Warranty Information
DESCRIPTION
Colorful BATTLE-AX B760M-PLUS V20 Motherboard in Bangladesh
Unlock the full potential of 12th and 13th generation Intel processors with the Colorful BATTLE-AX B760M-PLUS V20 Motherboard. Engineered to seamlessly adapt to the LGA 1700 slot, this motherboard welcomes Intel Core , Pentium, and Cylon processors, delivering powerful computing performance. Immerse yourself in a captivating auditory experience with its 5.1 Channel sound card, while enjoying the convenience of multiple power states including S3, S4, network S5 wake-up, regular power-on, and power-on for efficient energy management. Memory options are plentiful, with four DDR4 memory sockets supporting a total of 128 GB of memory and the flexibility to operate from blazing-fast DDR4-4800 (OC) to stable DDR4-2133MHz memory. RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays are supported through the 3 M.2 slots and 4 SATA 6Gb/s hard disk interfaces. The RTL8125 2.5Gbit network card ensures swift and reliable network connectivity, and a wealth of connectors and ports provide versatility for various setups. With a 3-year warranty, the Colorful BATTLE-AX B760M-PLUS V20 motherboard offers both performance and peace of mind, making it an excellent choice for gamers, content creators, and power users alike.
